Features:
The roof tile panel is formed by roof tile forming machine from high quality coated sheet, which performs elegant style of traditional roof tile and suits for every architecture design. With light, strong strength and long lasting quality, also it is convenient and takes short time for installation.

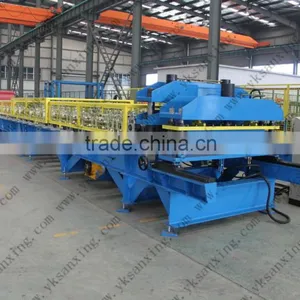

The line is for continuously roll forming and pressing step tile on series profile. The length is unlimited and step depth can be as customers’ requirement.
Line Specification
Suitable Material: Thickness: 0.4-0.6mm PPGI/AL, width as the design
Step Length: 100-400mm
Decoiler: Decoiler
Forming Station: 10-30 stations up to the profile
Forming Speed: Max 15 m/min
Max Working Speed: 5.5M/min
Total Power: About 30 KW up to final design
Total Installation Size: (40-60) X 5 m up to final design
Line Components:
Guiding Device, Auto Precutting Device, Forming System, Hydraulic Pressing Device, Hydraulic Cutting Device, Run Out Table/Auto Stacker, Hydraulic Station, PLC Control Box, Movable Control Box, Safety Cover(optional)

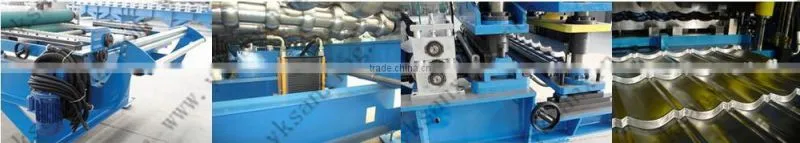

Line Parts:

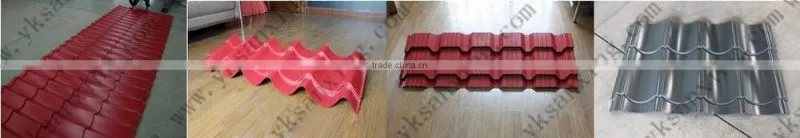

Produced Panels:

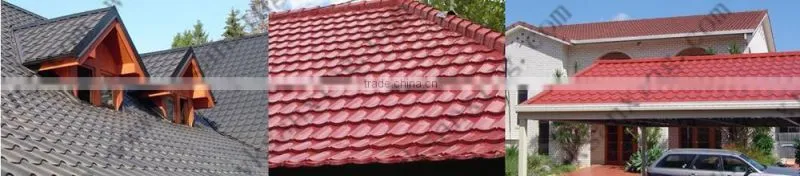

Project:
