Specifications
Tube Ice Maker1. High Quality
2. High Output
3. Energy Saving
4. Easy for Storage
Name: China Professional Tube Ice Maker and Seller (20 ton/day)
About Tube ice maker / machine :
1. Tube ice plant produces food grade ice. Tube ice is edible ice.
2. Tube ice plant you can see often in Restaurant, Hotel, and Wine bar and so on.
3. Tube ice
-External diameter: 22mm, 28mm, 35mm and 42mm.
-Inner diameter: 5mm-10mm, can be adjusted according to ice making time
-Length: 25mm-42mm
The Tube ice maker/ machine features:

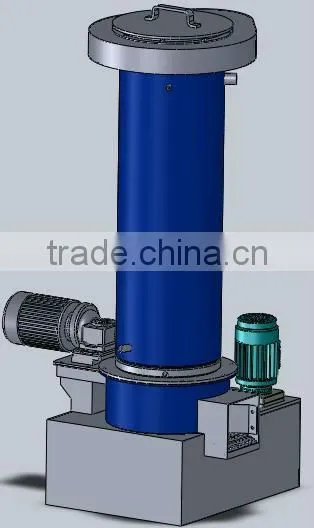

Perfect design: adopt 3D simulation assembly, compact structure, easy operation.
Health: ice maker adopts SUS304, PE, and aluminium material to process, and adopts big rounded excessive design, everywhere of the machine is easy to clean.
Efficient performance: ice maker adopt special alloy material and with special heat treatment, make the ice maker with best thermal performance.
Full automatical: PLC system controls the whole ice making process.
Main application:
Tube Ice Machine mainly apply for human consumption such as freeze drinks, mixing wines, cooling food stuffs,
and also used for chemical cooling, food processing, fisheries, poultryprocessing, meat plants etc.
They are popular for catering with the special large production range from 1000kg/24hrs to 80,000kg/24hrs.
More and more ice factories sell ice in packed bags to a number of restaurant in cities,
which seems gradually become a global trend, such as in Argentina, Brazil, Malaysia, Singapore, Indonesia, South Africa.
Technical parameters:
Refrigerant: R404A,R22,R717
Standard ambient : 30 °C, water temp: 20 °C
Workable temp: Ambient: 5°C~40°C, water temp: 5°C~40°C.
Ice tube external diameter: Φ22,Φ28,Φ35,Φ42mm.
Specification:
1 ton - 20 ton / 24 hours
| 1 ton | 2 ton | 3 ton | 5 ton | 10 ton | 15 ton | 20 ton | |
| Model/parameters | JJIT1T-R4A | JJIT2T-R4A | JJIT3T-R4A | JJIT5T-R4W | JJIT10T-R4W | JJIT15T-R4W | JJIT20T-R4W |
| Ice output(Ton/24hours) | 1t/24h | 2t/24h | 3t/24h | 5t/24h | 10t/24h | 15t/24h | 20t/24h |
| Ambient Temp. | +30°C | ||||||
| Water Temp. | +20°C | ||||||
| Compressor brand | Copeland / Bitzer / Hanebll | ||||||
| Refrigerant | R404A / R22/R717 | ||||||
| Electricity System | 380V/3P/50Hz(standard), special can be ordered. | ||||||
| Cooling Type | "A” — air cooling ;"W" — water cooling | ||||||
| Cooling Capacity (kW) | 6.9 | 13.65 | 19.8 | 30.6 | 63.2 | 85 | 118 |
| Input Power (kW) | 4.69 | 7.7 | 11.3 | 16 | 34.1 | 43.25 | 57.95 |
| Ice Machine Weight (kg) | 830kg | 1050kg | 1280kg | 1600kg | 2750kg | 3750kg | 5200kg |
| Size of seperate condenser | 1528x1030x942 | 2828x1030x942 | |||||
25 ton - 80 tons/ 24 hours:
| 25 ton | 30 ton | 40 ton | 50 ton | 80 ton | |
| Model/parameters | JJIT25T-R4W | JJIT30T-R4W | JJIT40T-R4W | JJIT50T-R4W | JJIT80T-R4W |
| Ice output(Ton/24hours) | 25t/24h | 30t/24h | 40t/24h | 50t/24h | 80t/24h |
| Ambient Temp. | +30°C | ||||
| Water Temp. | +20°C | ||||
| Compressor brand | Copeland / Bitzer / Hanebll | ||||
| Refrigerant | R404A / R22/R717 | ||||
| Electricity System | 380V/3P/50Hz(standard), special can be ordered. | ||||
| Cooling Type | "A” — air cooling ;"W" — water cooling | ||||
| Cooling Capacity (kW) | 197 | 227 | 292 | 339 | 485 |
| Input Power (kW) | 87.4 | 98.5 | 130 | 150 | 205.5 |
| Ice Machine Weight (kg) | 6950kg | 8430kg | 9950kg | 11960kg | 15300kg |
| Size of seperate condenser | 1400x1400x5200 | 1500x1500x6100 | 1550x1600x6600 | 1600x1600x6900 | 2100x1850x6600 |

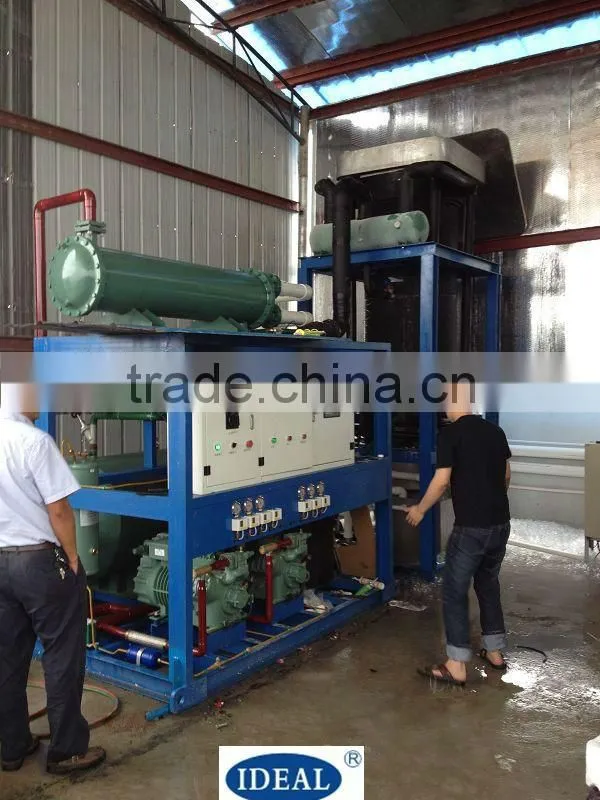

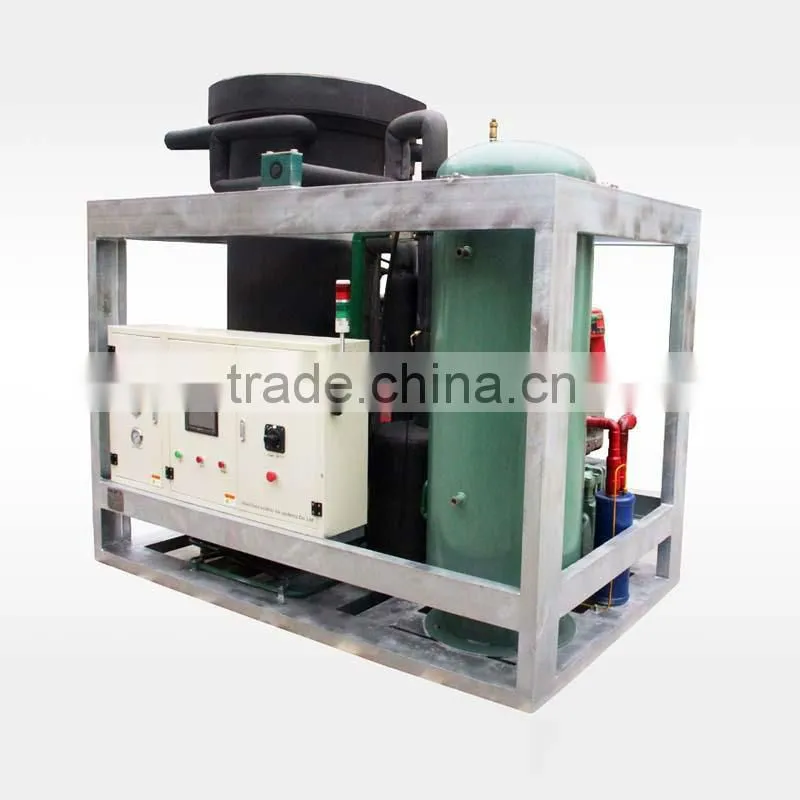

20 ton/day Water Cooling tube ice maker
20 ton/day Water Cooling tube ice maker
Freezer: We use high quality stainless steel in order to resistant the corrosion from all water and ice surfaces. All the materials meet the HACCP certificate.
Cutter: Stainless steel cutters driven by gear motors are uniquely designed to produce cylindrical ice simply.
Control: Unique Vivid H-M Interactive control system with all failure and working status showing alive in touch-screen. The ice thickness could be adjusted by setting the icing time in the touch screen.

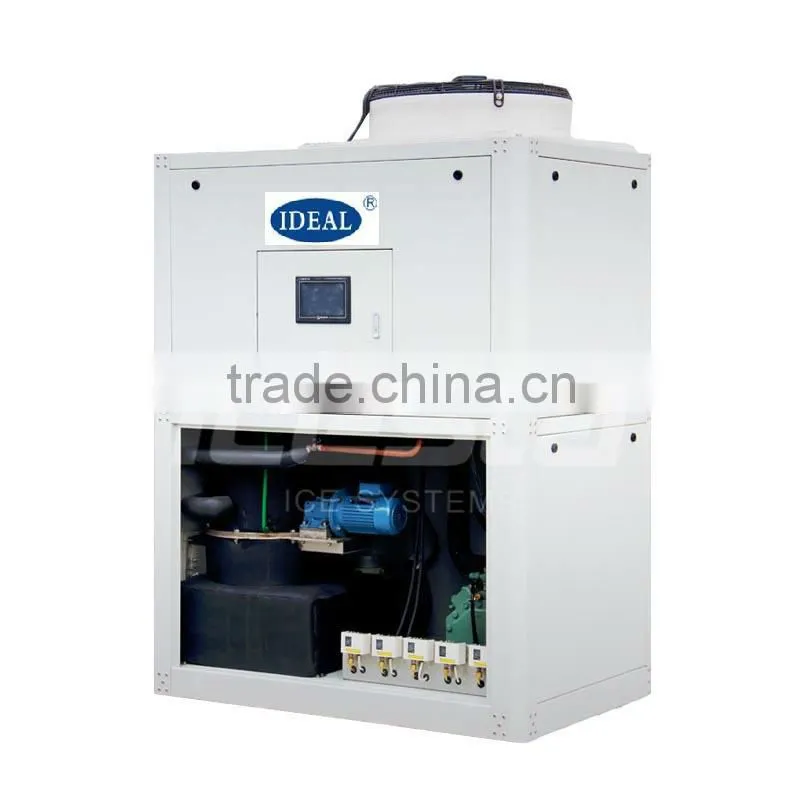

2 ton/day Air Cooling Tube Ice Maker
5ton/day Water Cooling tube ice maker
15ton/day Water Cooling tube ice maker

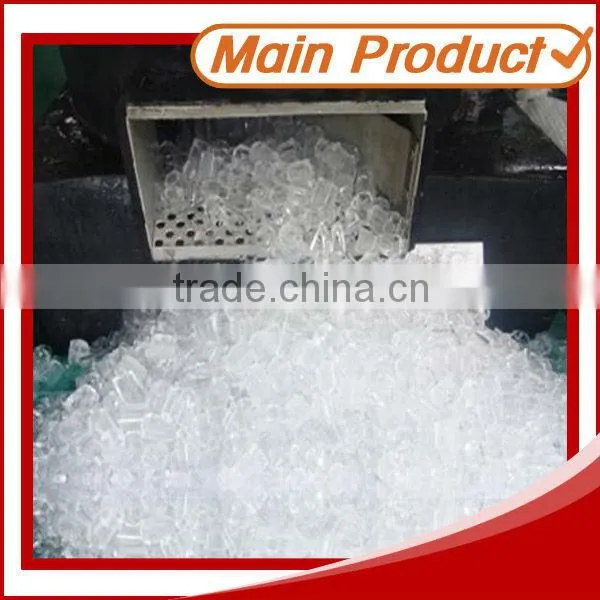

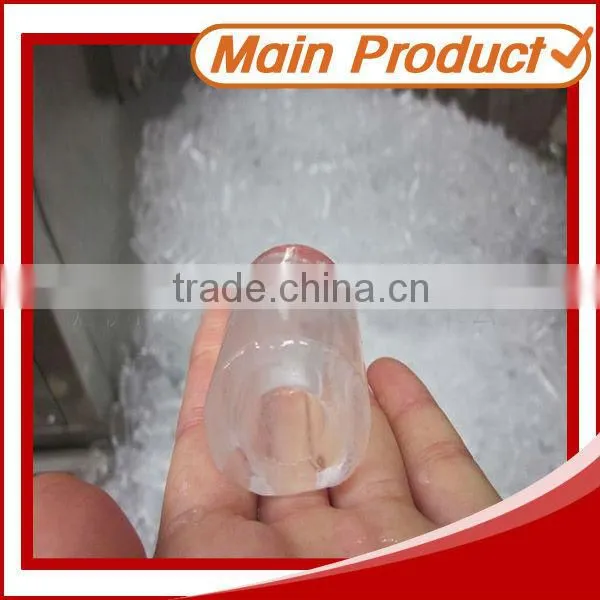

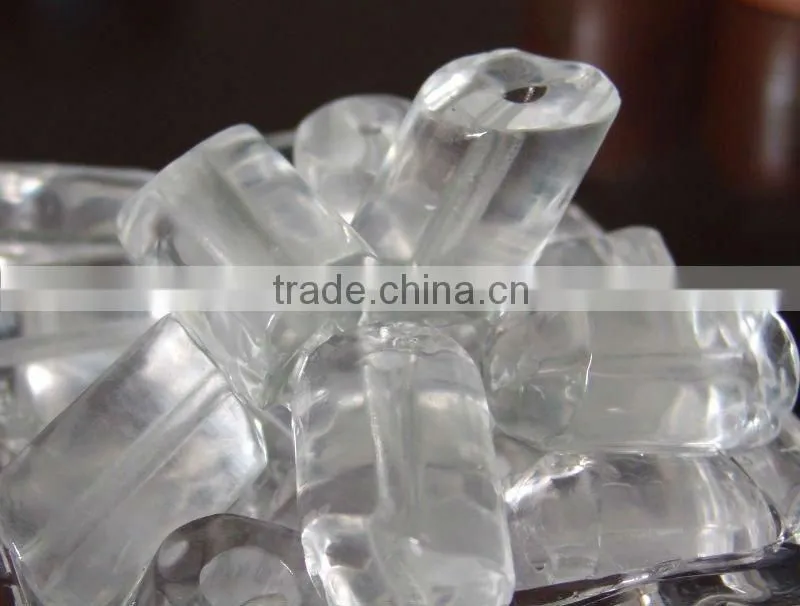

Tube Ice

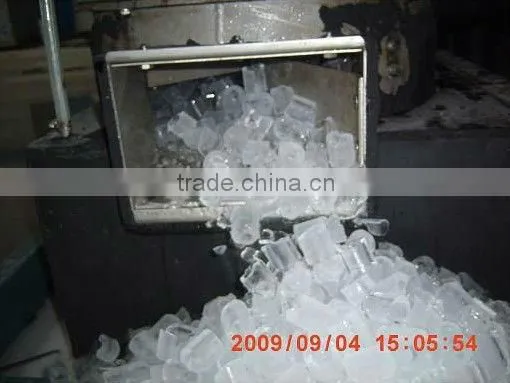

ice automatic outgoing equipment
Stainless Steel Evaporator(Drum)

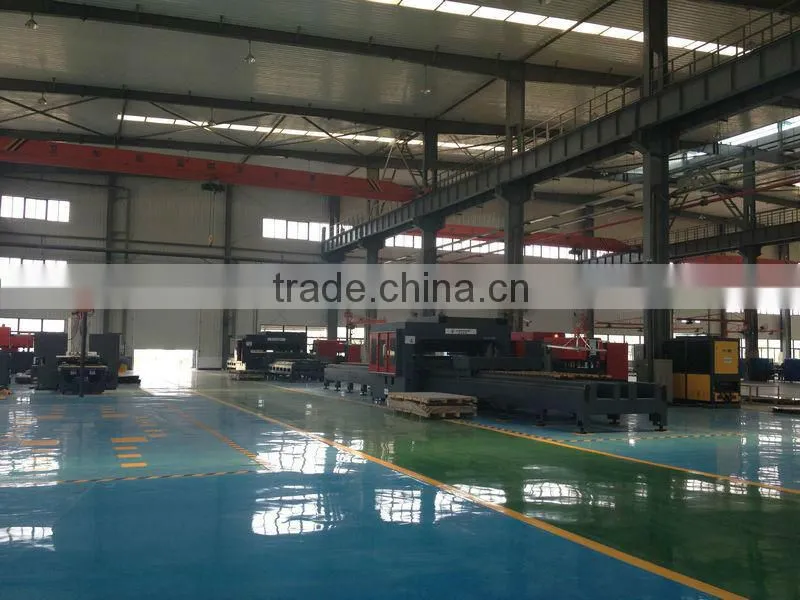

Factory:
