Ideal Automatic Water Cooled Tube Ice Makers (10 ton/day)

Specifications

Tube Ice Makers
1. High Quality
2. High Output
3. Energy Saving
4. Easy for Storage

Name: Ideal Automatic Water Cooled Tube Ice Makers (10 ton/day)





About  the ice tube machine :



1. Tube ice plant produces food grade ice. Tube ice is edible ice.



2. Tube ice plant  you can see often in Restaurant, Hotel, and Wine bar and so on.



3. Tube ice

-External diameter: 22mm, 28mm, 35mm and 42mm.

-Inner diameter: 5mm-10mm, can be adjusted according to ice making time

-Length: 25mm-42mm



The ice tube machine features:



Perfect design: adopt 3D simulation assembly, compact structure, easy operation.

Health: ice maker adopts SUS304, PE, and aluminium material to process, and adopts big rounded excessive design, everywhere of the machine is easy to clean.

Efficient performance: ice maker adopt special alloy material and with special heat treatment, make the ice maker with best thermal performance.
Full automatical: PLC system controls the whole ice making process.







Main application:

           Tube Ice Machine mainly apply for human consumption such as freeze drinks, mixing wines, cooling food stuffs,

 and also used for chemical cooling, food processing, fisheries, poultryprocessing, meat plants etc.

 They are popular for catering with the special large production range from 1000kg/24hrs to 80,000kg/24hrs.

More and more ice factories sell ice in packed bags to a number of restaurant in cities,

 which seems gradually become a global trend, such as in Argentina, Brazil, Malaysia, Singapore, Indonesia, South Africa.





Technical parameters:



Refrigerant: R404A,R22,R717

Standard ambient : 30 °C, water temp: 20 °C

Workable temp: Ambient:5°C~40°C, water temp: 5°C~40°C.

Ice tube external diameter:Φ22,Φ28,Φ35,Φ42mm.





Specification:





	1 ton	2 ton	3 ton	5 ton	10 ton	15 ton	20 ton
Model/parameters	JJIT1T-R4A	JJIT2T-R4A	JJIT3T-R4A	JJIT5T-R4W	JJIT10T-R4W	JJIT15T-R4W	JJIT20T-R4W
Ice output(Ton/24hours)	1t/24h	2t/24h	3t/24h	5t/24h	10t/24h	15t/24h	20t/24h
Ambient Temp.	+30°C
Water Temp.	+20°C
Compressor brand	Copeland / Bitzer / Hanebll
Refrigerant	R404A / R22/R717
Electricity System	380V/3P/50Hz(standard), special can be ordered.
Cooling Type	"A” — air cooling ;"W" — water cooling
Cooling Capacity (kW)	6.9	13.65	19.8	30.6	63.2	85	118
Input Power (kW)	4.69	7.7	11.3	16	34.1	43.25	57.95
Ice Machine Weight (kg)	830kg	1050kg	1280kg	1600kg	2750kg	3750kg	5200kg
Size of seperate condenser		1528x1030x942	2828x1030x942









Freezer: We use high quality stainless steel in order to resistant the corrosion from all water and ice surfaces. All the materials meet the HACCP certificate.



 Cutter: Stainless steel cutters driven by gear motors are uniquely designed to produce cylindrical ice simply.



Control: Unique Vivid H-M Interactive control system with all failure and working status showing alive in touch-screen. The ice thickness could be adjusted by setting the icing time in the touch screen.

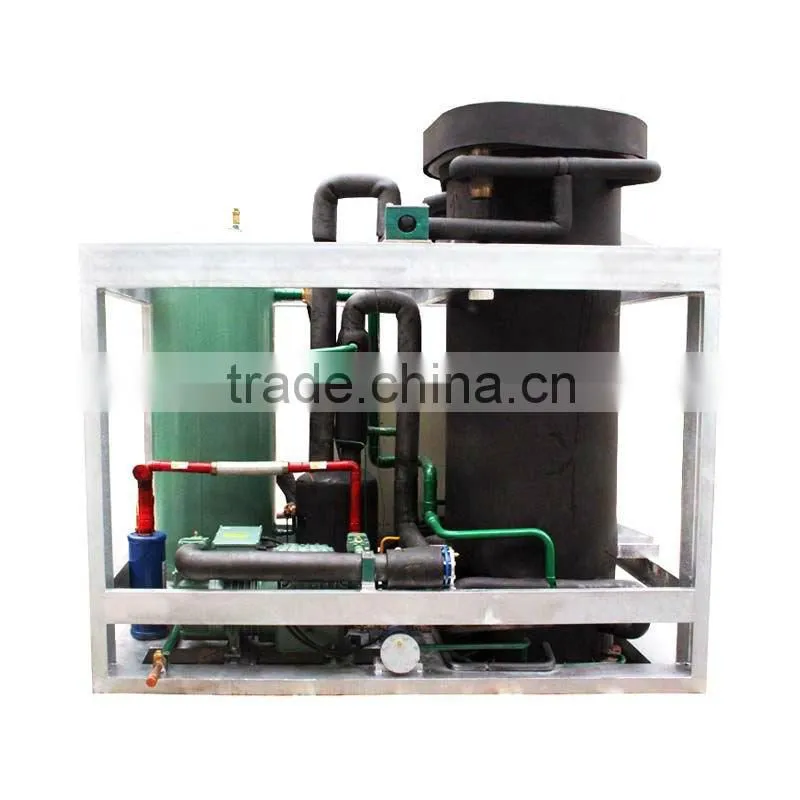

10 ton / day water cooled tube ice maker







ice automatic outgoing equipment
