home use 20A Over Voltage and Under Voltage Protective Device with Automatic re-cover

FOB Price

USD $2.88 - $5 / Piece

100 Pieces(Min.Order)

Supply Ability 500000 Piece / Pieces per Month
Port Ningbo
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	Elsine	Model Number:	HDP-60 VPD-60
Theory:	Voltage Relay	Usage:	General Purpose	Size:	Miniature
Protect Feature:	Sealed	Contact Load:	Low Power

Product Description

Full-automatic over and under voltage delay protector device

Product Description

HDP-60(VPD-60) series digital type full-automatic over and under voltage delay protection device is a new generation of household electrical appliances protector developed by our company according to the city power situation.

Which can work normally under unstable abnormal voltage.

When the supply power voltage exceeds the action voltage of protector,the protector would cut off the power quickly so as to protect the electrical equipments.

When the supply power voltage returns to normal value,the protector would connect the power automatically after delay time.

All these functions are automatically activated without manual operation.

Operation status:
Two LED indicators on the panel indicate the working status of the protector.

When the first green indicator turn on all time means the supplied voltage is ok;

If the supplied voltage is too low(under voltage) or too high(over voltage),then the second

red indicator would turn on immediately,means the protector is in under voltage or over

voltage protection.

The product has compact structure,beautiful appearance, standard din rail mounting.

Features

The protector complies with modular design standard, made of SMT production technology,

which keep our products more excellent and reliable performance.

Specifications

1. Rated Voltage: 220V AC, 50Hz
2. Max Passing Current: 20A,32A,40A,50A, 60A(Resistance)
3. Max.Loading Power: 4.4KVA,6.6KVA,8.8KVA,11KVA,13.2KVA
4. Over-voltage Action Cut-off Value: 270±5V
5. Over-voltage Recover Value: 255±5V
6. Under-voltage Action Cut-off Value: 170±5V
7. Under-voltage Recover Value: 185±5V
8. Recover Delay Time: 20S-2 Minutes(Choose)
9. Action Delay Time: ≤1 Seconds
10.Self Power Consumption: ≤2W
11.Mechanical life: ≥ 1×10⁵Times
12.Dimension: 85x36x66mm(L×W×H)
13.Installation: 35mm Din rail mounting

Dimension and Wiring Diagram:

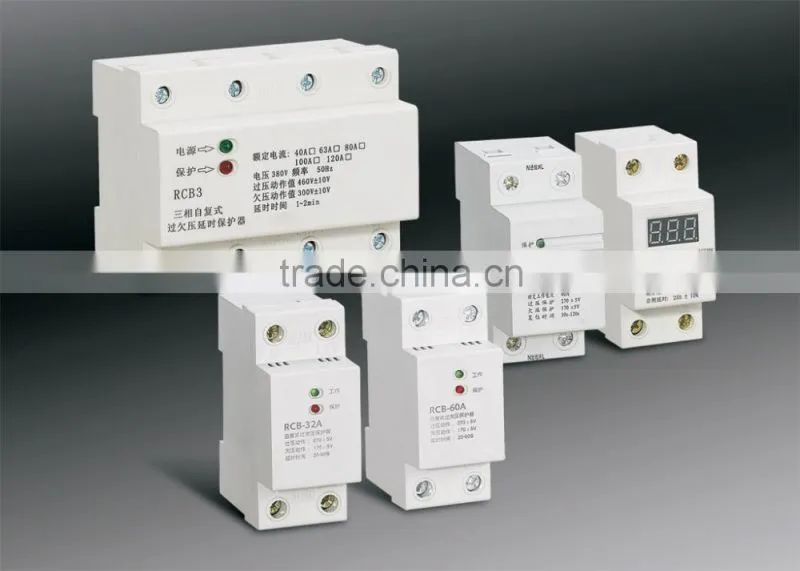

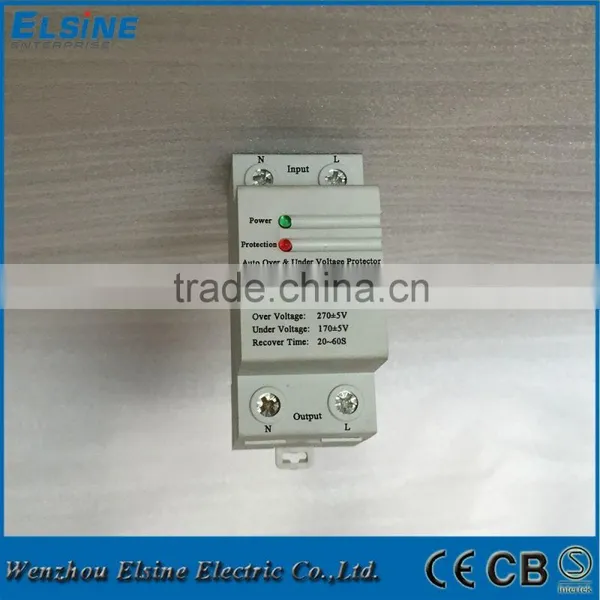

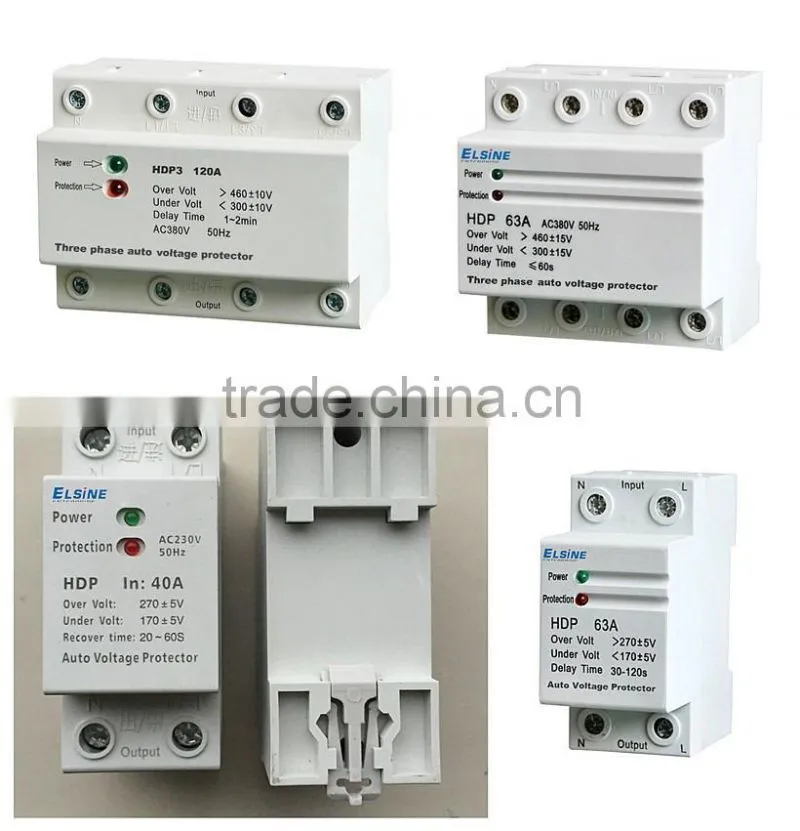

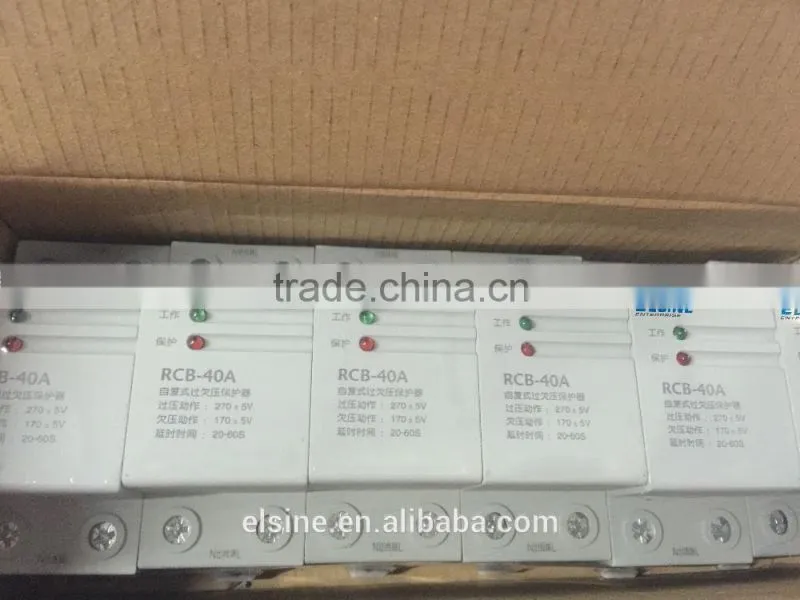

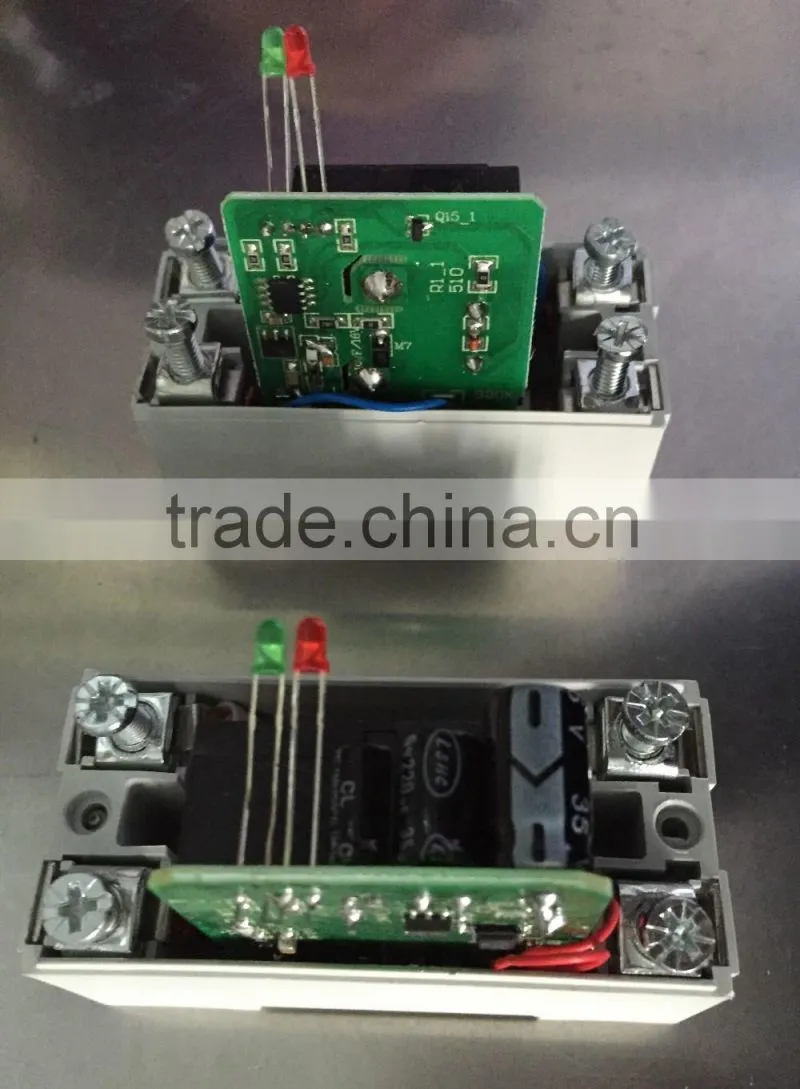

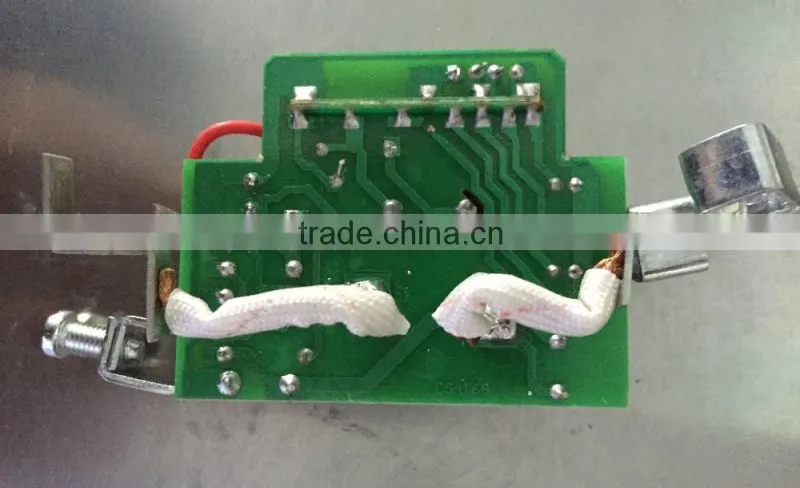

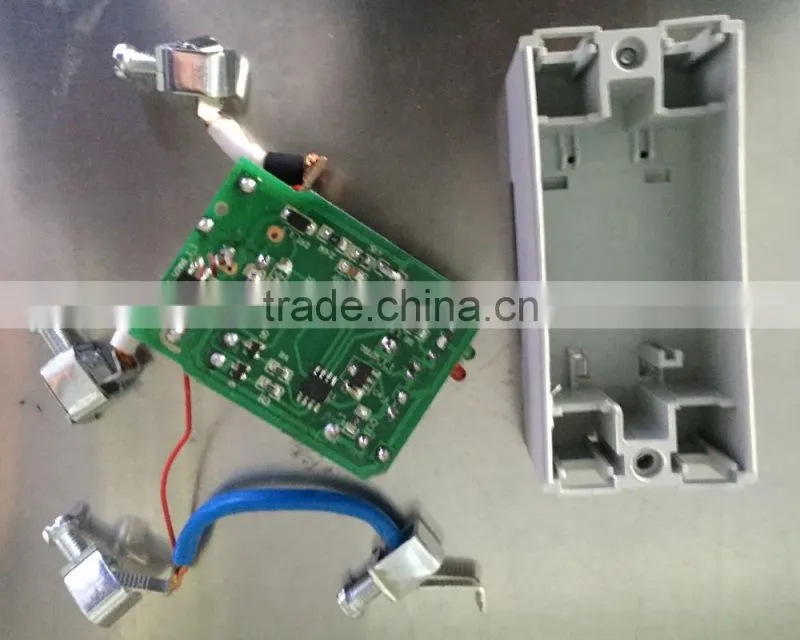

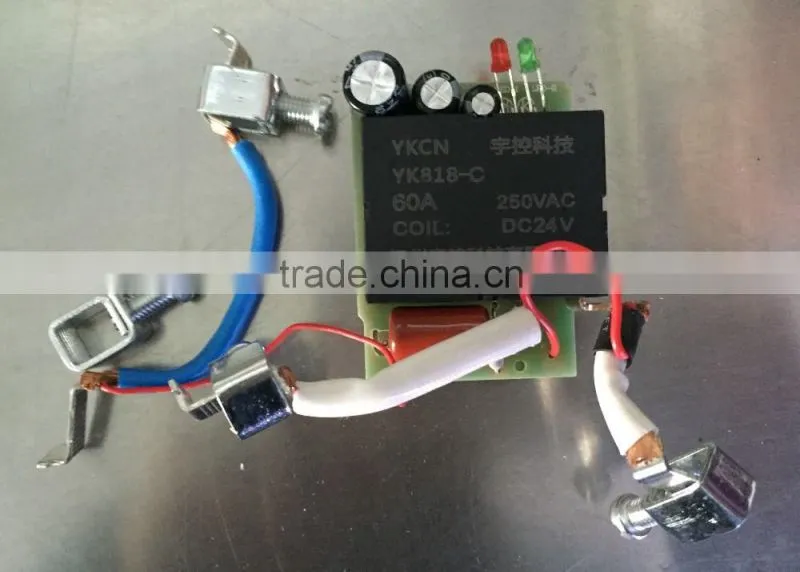

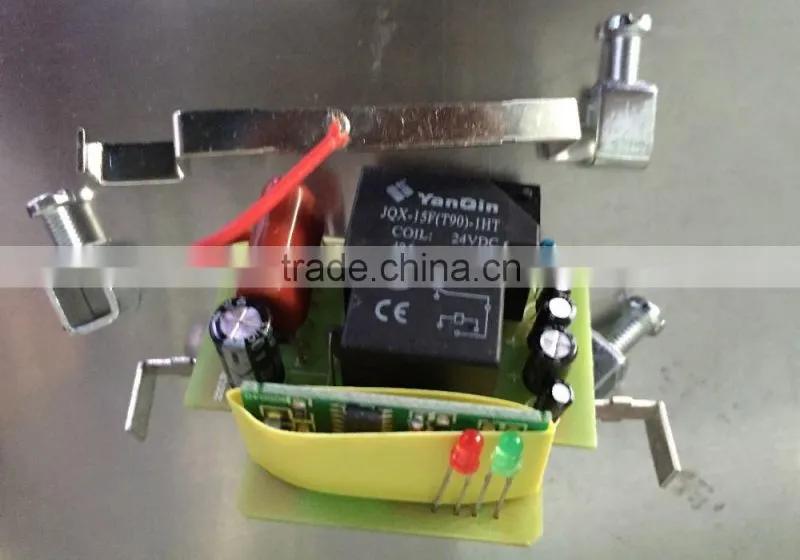

Sample show

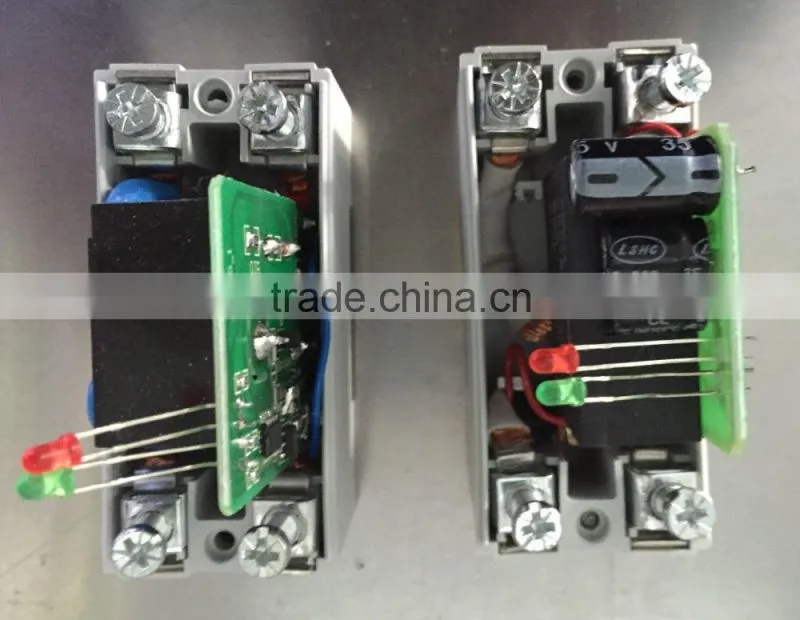

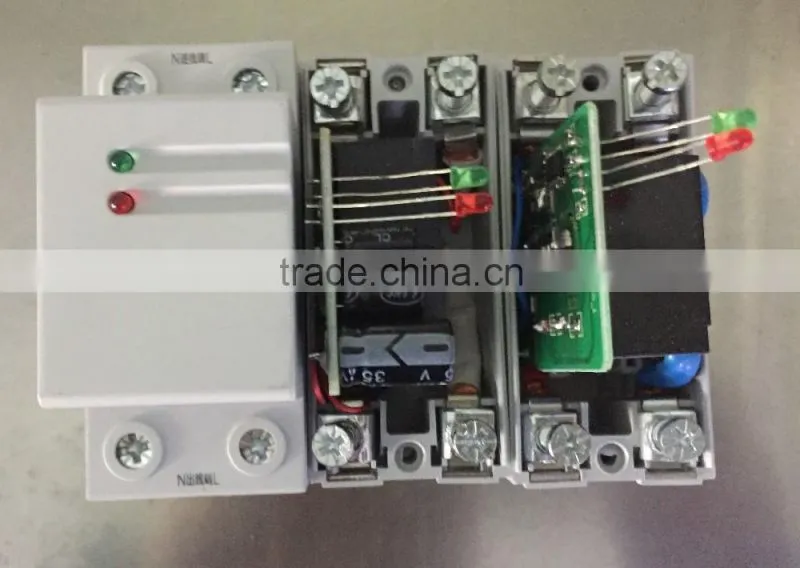

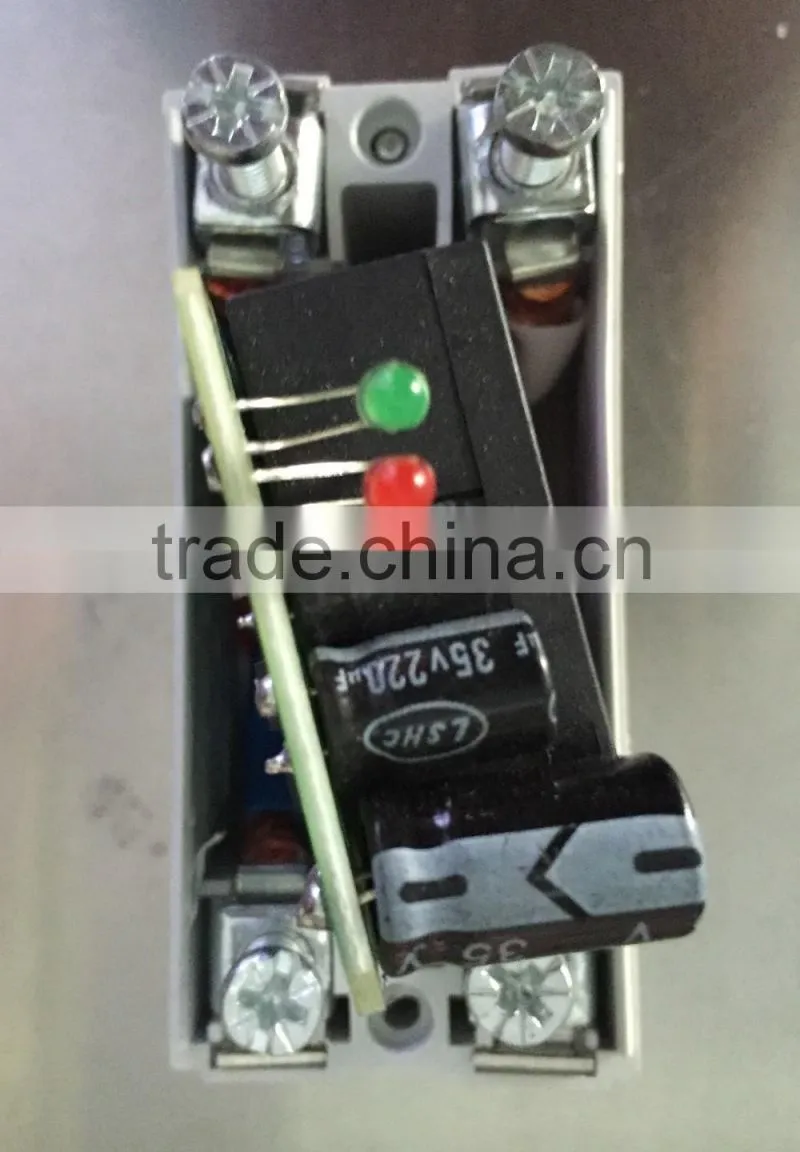

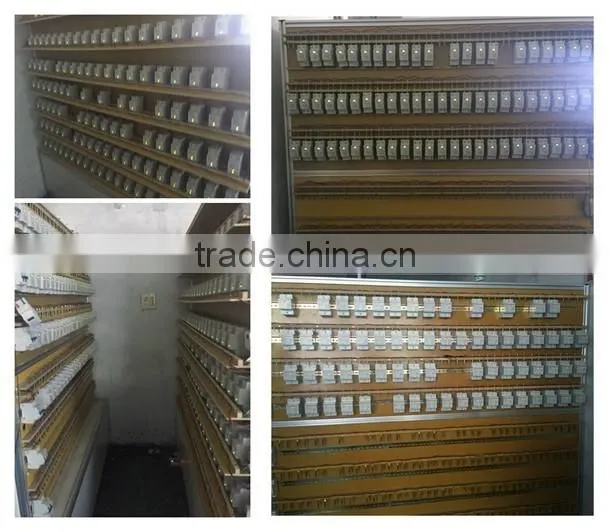

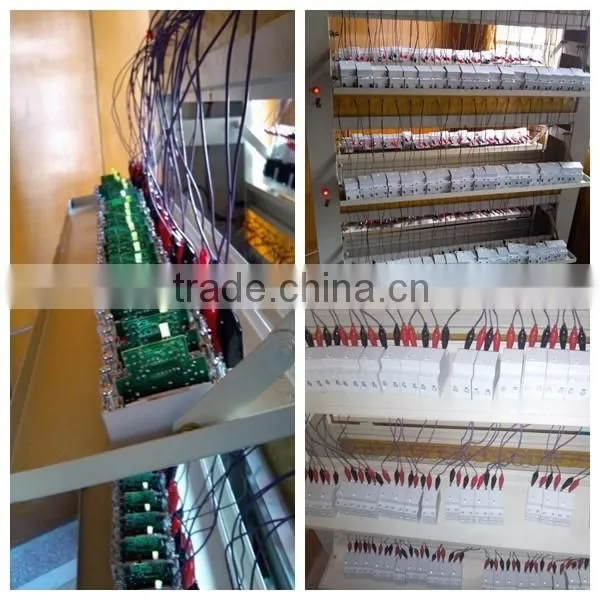

Testing:
