Latest Design Ice Plate Machine Plate Ice Maker Evaporator Refrigerators
- 50 Unit / Units per Month
- GUANGZHOU/SHENZHEN/SHANGHAI
- T/T Credit Card
- 200kg Dry ice pellets making machine for dry ice production
- New York Liquid Flowmeter 024W26116-002 Flow Switch HF68 Mechanical Target
- New slide valve potentiometer coupling 111Q0451313
- New Kunteng 5 motherboard 649C1152G01 York FRICK circuit board 649C1158G01
- New York FRICK Industrial Refrigeration Unit 649C1091G01 Kunteng 4-LX Control System Main Board
- New GEA explosion-proof energy level sensor model 62750016
Product Details
Condition: | New | Capacity: | 10Ton/24h | Place of Origin: | Jiangxi, China |
Brand Name: | Icefocus | Model Number: | JJPIM100WF | Ice Shape: | Other, Plate Ice, Plate Ice / Flake Ice |
Voltage: | 380V-50Hz-3P | Power(W): | 28.3 KW | Dimension(L*W*H): | 3500x2300x2500 mm |
Weight: | 4000 KG | Certification: | Other, ISO, CE, SGS | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Jiujiang Ideal Imp. & Exp. Co.,Ltd is specializing in ice machines, cold room project, refrigeration
equipments items for more than 8 years in China since 2007. And the brand name "Icefocus" has
been registered for developing our business and agents in the world. We are supplying
"ICE MACHINES" including the following items:
(1) Flake ice machines: Fresh Water system 500kg/24hour to 60Ton/24hour.
Sea Water System 1Ton/24hour to 20Ton/24hour.
(2) Plate ice machines: 3Ton/24hour to 15Ton/24hour.
(3) Tube ice machines: 2Ton/24hour to 30Ton/24hour.
(4) Cube ice machines: Commercial Cube Ice Machines 23kg/day to 1000kg/day;
Industrial Cube Ice Machines 2Ton/24hour to 20Ton/24hour.
(5) Block ice machines: 1Ton/24hour to 20Ton/24hour.
Thanks for remembering our brand "ICEFOCUS" ,
Hight Quality Ice Machines and Cold Rooms Spokesman !
Our Brother Company "Hongkong Ideal Refrigeration Equipment Ltd."
1.Plate ice is dense ice with high cleaning ability, big cooling capacity, and ice thickness is adjustable.Its function become increasingly important in industry, agriculture and fishing industry.
2.Plate ice is widely used for fisheries production, aquatic products processing, aquatic fishing, transportation ice using, meat product processing, supermarket fresh-keeping, food processing, medicine and chemical dye, fermentation engineering, contruction project concrete cooling, mine cooling, ice stroage project and papermaking industry.
Plate Ice Description of Machine :
The making ice system is the multiple system that making ice dependent and have the dropping ice function, shorten the icemaking period, the full equipment have good anti corrosive function, anti shock and pressure resistance performance.It is make ture for producing one ton ice just consumed about 60kw power, it has the incomparable advantage of the flake ice machine and others ice machine.
Ice Plate Machine Performance and Advantages:
(1) Peculiarity:Industry leading evaporator.
(2) Outstanding energy-saving:The efficiency of energy
Saving can reach beyond 30%, it's a new generation saving energy product.
(3) Absolute quality advantage:The material of the evaporator is stainless steel 304 (SUS304), the machine doesn't have any wear and tear, intelligently system.
(4) Easy to operate:PLC programmeable monitor, no need mainpower.

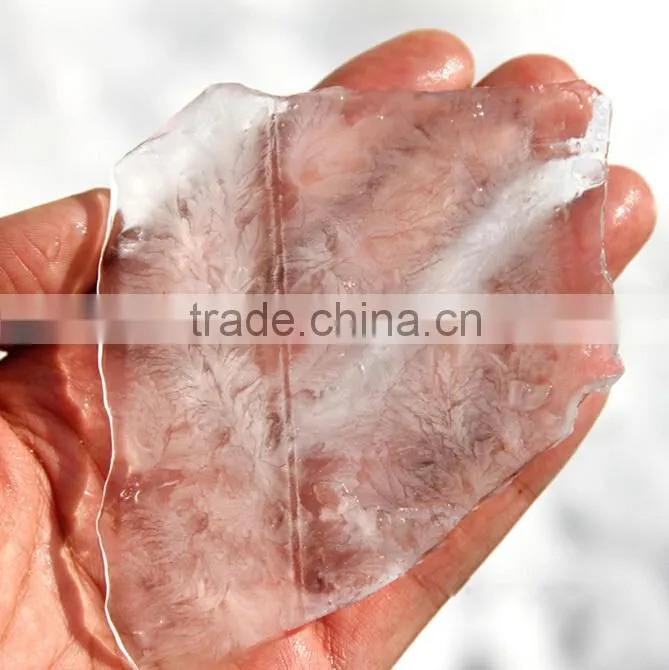

Plate Ice Features:
(1) Thickness 4-30mm, size (20mm-40mm) x (30mm-50mm), transparent, dry and
Hard ice block with irregular shape.
(2) High density, small surface area and good cool storage effect for the
Vegatables, meat, chemical products, seafoods, etc.
(3) Even cooling effect, good ventilation performance, and constant refrigerating
Temperature, suitable for refrigeration of aquatic products.
Features of Plate Ice Machine:
(1) Modular designe, small space requirement, and easy installation and
Maintenance.

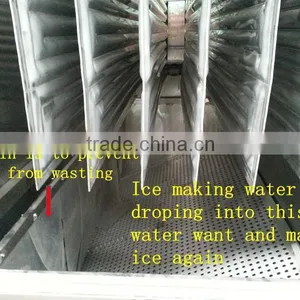

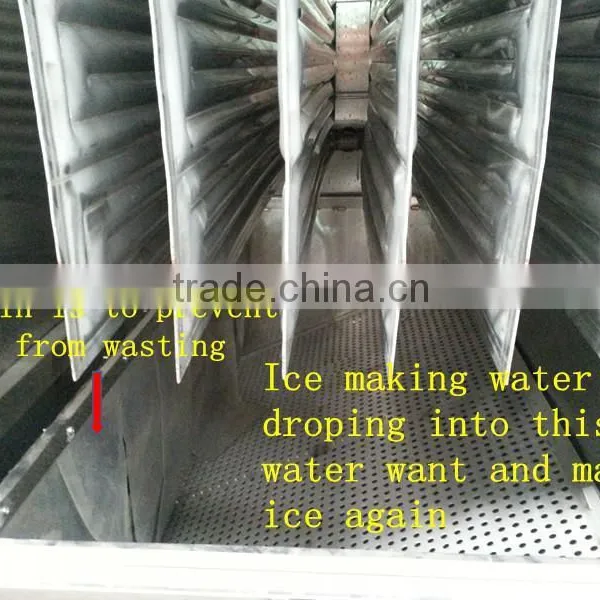

(2) The honey comb flo channel is used in the design of evaporator fins, with
Turbulent flow of refrigerant in fins., featuring good heat exachanging effect,
And with firmness and good endurance.

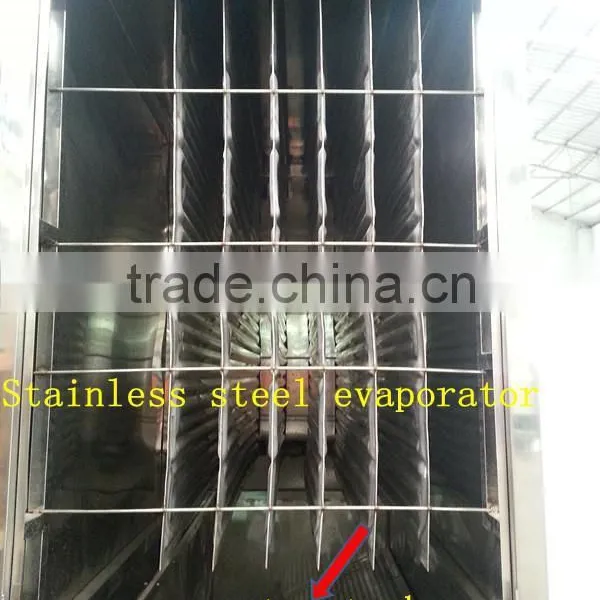

(3) Evaporator fins are made of food -safe SUS304, featuring hygiene and
Cleanliness, and harmlessness to human, fully in compliance with relevant
Standard on food security.
(4) World famous brand PLC is used ofr automatic control system.Only one
Button press for start-up and shutdown, featuring reliable and stable
Control, and low faults.
(5) The utilization of condensing heat is made in process to quickly transfer
Hot gas for ice failing.It can shorten ice-failing time, reduce engergy loss and
Efficeiently save energy.
(6) Suitable for ice sotrage engineering, edible ice, refrigeration of aquatic
Products, chemical products, aritificial snow on ski field, cooling coal mining
Well, etc.
Plate Ice Making Machine Specifications:
Model | JJPIM100WF | JJPIM150WF | JJPIM200WF |
Ice Production Capacity | 10 ton/24h | 15 ton/24h | 20 ton/24h |
Cooling Capacity | 59 KW | 88.5 KW | 118 KW |
Input Power | 28.3 KW | 37 KW | 51 KW |
Diameter Water Pipe | 3/4" | 3/4" | 1" |
Net Weight | 4000 KG | 4500 KG | 5200 KG |
Machine Size (mm) | 3500 L | 4100 L | 4700 L |
2300 W | 2300 W | 2300 W | |
2500 H | 2500 H | 2500 H |
