Help CenterTransparent Modularized Ice Plate Making Machine
Related Products
-
Newest Design Straching Fast Ice Vending MachineUS$ 4,000 - 50,000MOQ: 1 Unit -
3T Plate Ice Maker Machine With Crushing DesignUS$ 4,000 - 50,000MOQ: 1 Unit
-
Plate Ice Machine for Storage of Fish, Shrimps, SeafoodUS$ 4,000 - 60,000MOQ: 1 Unit
-
Wholesale Good Quality Ice Plate Making Machine for Lowing Mine TemperatureUS$ 4,000 - 60,000MOQ: 1 Unit
-
15Ton/day Water Cooled Durable Low Consumption Large Capacity Industrial Ice Maker Plate Ice Making MachineUS$ 38,800 - 52,000MOQ: 1 Unit
Specifications
1,High density, small surface2,ice plate making machine
3,refrigerating temperature
4,dry & hard ice
5, transparent

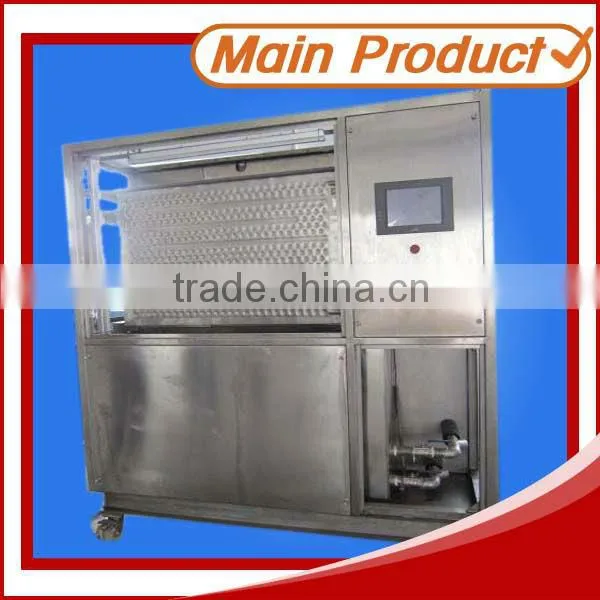

Name: transparent modularized ice plate making machine
Thickness 4-30mm, size (20cm-40cm)X(30cm-50cm), transparent, dry and hard ice block with
irregular shape.High density, small surface area and good cool storage effect.
Even cooling effect, good ventilation performance, and constant refrigerating temperature, suitable
for refrigeration of aquatic products.
Model |
JJZNBB3ZDS/FA |
JJZNBB4ZDS/FA |
JJZNBB5ZDS/FA |
JJZNBB8ZDS/FA |
|
|
Ice production capacity (kg/24hour) |
3000 |
4000 |
5000 |
8000 |
|
Refrigerating capacity(KW) |
17.5 |
23.5 |
29.5 |
47 |
|
Electric system |
380V-50Hz-3P |
||||
Input power (KW) |
8.2 |
10.8 |
13.9 |
29.3 |
|
|
Diameter of water supply pipe |
1/2’’ |
1/2’’ |
1/2’ |
3/4’’ |
|
Net Weight (kg) |
1600 |
1800 |
2200 |
3100 |
|
Dimension of unit |
L (mm) |
2000 |
2000 |
2000 |
2500 |
W (mm) |
1500 |
1500 |
1800 |
2300 |
|
H (mm) |
2200 |
2200 |
2200 |
2500 |
|
Features of products
Modular design, small space requirement, and easy installation and maintenance. The honey comb
flow channel is used in the design of evaporator fins, with turbulent flow of refrigerant in fins. Featuring
good heat exchanging effect, and with firmness and good endurance. Evaporator fins are made of food-safe S/S, featuring hygiene and cleanliness, and harmlessness to human, fully in complianxe with
relevant standard on food security. World famous brand PLC is used for automatic control. Only one
button press for start-up and shutdown, featuring reliable and stable control, and low faults. The utilization of condensation
heat is made in process to quickly transfer hot gas for ice failing. It can shorten ice-failing time, reduce energy loss and efficiently save energy. Suitable for ice storage engineering,
edible ice, refrigeration of aquatic products, chemical products, artificial snow on ski field, cooling coal
mining well, etc.
Notes
1. Standard voltage; 380V-3P-50Hz that can be changed to 60Hz , 200/220V, 400V, 440V as required.
2. Standard ambient temperature; 25°C, water supply temperature; 16°C, evaporation temperature;
-15°C.(seawater plate ice machine unit evaporator temperature; -15°C)
3. Applicable ambient temperature;5-40°C, water supply temperature; 0-40°C
4. This machine is applicable to fresh water, refrigerans; R22/R404a. If choose R717 or only
evaporation unit, please inform us in advance
5. Thickness of ice; 5mm-15mm.
6. The input power is given at standard voltage and working conditions and therefore is only for
reference.
