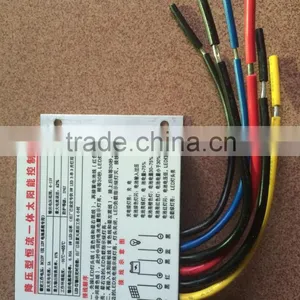

WATERPROOF SOLAR CHARGE CONTROLLER Lithium Batttery
US$ 3 - 10
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
ENFLOWER
Model Number:
LR-SCC01-11.1V lithium battery
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO OR SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
ENFLOWER
Model Number
LR-SCC01-11.1V lithium battery
Application
Solar System Controller
Rated Voltage
Other, 11.1V
Maximum Current
25A
Product Description
| 1) Functions: | |
| It combines solar charge controller and constant current LED driver into one unit which is ideal for solar LED Lighting, especially when dimmer function is needed. | |
| 2)Features: | |
|
11.1V Lithium battery using Only (such as 3 Seris 18650 or 26650 3.7V Lithium battery groups ) Switch could set Dark to Dawn workinig mode, or appointed working time from Dark such as 6 hours Maximum output efficiency of 96% Dimming function: Such as first 2 hours 100% lighting, Second 2 hours: 80% lighting, Third 2 hours 60% lighting etc. Buck Constant lighting and power output type for 2 Series LEDs Groups or 3 Series LEDs Groups using Figure 3 Setting Ways Real-time energy statistics function Widely used, automatic recognize day/night Fully encapsulated PCB, IP68 protection Aluminum housing Support firmware upgrade | |
| 3)Electronic protections: | |
| PV reverse polarity protection Battery over voltage protection Battery over discharge protection Battery overheating protection Battery reverse polarity protection Load short circuit protection | |
| ITEM | LR-SSC-002 |
| Nominal system voltage | 11.1VDC |
| Rated charge current | 10A |
| Max. PV input voltage | 30V (Such 150W 16V type) |
| Battery terminal voltage | 9~16V |
| LED lamp Output Voltage | 6-10V for 2 Series or 3 Series LEDs Groups Load |
| Buck type Constant Light and power output for LED lamps load | MAX 30W for 2 Series LEDs Groups or 3 Series LED Group ( such as 10 Groups of 3PCS 3.3V 330mA 1W LEDs in Series (10pcs x 3W=30W LEDs) |
| LED lamps output current | 150mA -3000MA (We could adjust this LED load current by Switch) |
| Dark Mode: Streetlight Working Solar Voltage | 5V (30 seconds) |
| Dawn Mode: Streetlight Stop working Solar Voltage | 6V (30 seconds) |
| Battery Over input Voltage Cut Off point | 13V |
| Float Charging Voltage Point | 12.4V |
| Battery Load Reconnect Voltage Point | 11.4V |
| Battery Low Voltage Cut Off Point | 10.5V |
| Load open circuit voltage | 12V |
| Charging LED Indicator | Green LED light -- Charging |
| Battery LED indicator |
Green LED Blinking: > 13V Input Voltage is too high and Cut Off Load Green LED lighting: > 75% Amber LED lighting: 30-75% Red LED lighting: < 30% Red LED blinking: Low Voltage Cut Off or over Load or Short Circuit |
| Load LED indicator | Green LED lighting: Load working (LED lamps working) |
| Maximum output efficiency | 96% |
| Output current Control accuracy | < 2% |
| Idle current of controller | <8mA |
| Temperature compensation coefficient | (-3mV/ ℃ /2V --- 25℃) |
| Working temperature | (-35℃ to +65℃) |
| Enclosure | IP68 |
| Overall dimension | 82x80x20.5mm |
| Mounting dimension | 45mm (4 holes) |
| Mounting hole size | Φ4 |
| Power cable | 2.5mm2(PV/BAT) |
| 1.0mm2(LOAD) | |
| Net weight | 0.35kg |
