Glazed Tile Machine For Wall And Roof
Machine
Forming
Cutting
Panel
Install
Main Technical Specification
SANXING 836(glazed tiles)
1.Main motor power: 3 KW
2.Hydraulic station power: 3 KW
3.Sprocket:P-25.4
4.Forming station:9
5.Material of roller:45#steel hard chrome plating
6.Length of production line:10m
7.Installation dimension about(L*W*H): 6.5m*1.5m*1.4m
8.Hydraulic oil pump: CB-E 310
9.Diameter of principal axis:70mm
10.Material of roll: Cr12 quenching
11.Thickness:0.3-1mm
12.Total weight: about 4.6T
13.Forming speed:3-6m/min
14.Length of tolerance:+1.5mm
15.Cover width:1043.02
16.Coil width:1250mm
17.Wave height:28mm
18.Wave height:2008.6mm
19.One set of equipment includes: forming machine, hydraulic system, computer controlling system,counter, cutting system, material feeding support

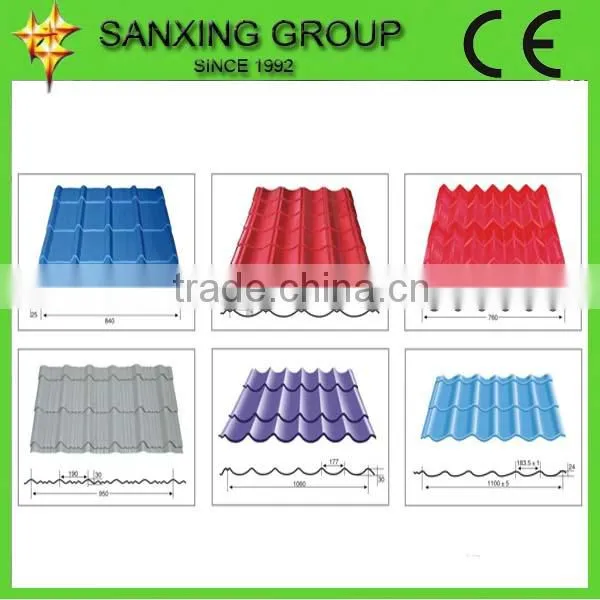

Main types(We have more than one hundred different profiles)
Types |
Width of the coil |
Width of the formed sheet |
The depth of the groove |
Thickness of the coil |
SX-840 |
1000mm |
840mm |
25mm |
0.3-0.6mm |
SX-900 |
1000mm |
900mm |
15mm |
0.3-0.6mm |
SX-930 |
1000mm |
930mm |
14mm |
0.3-0.6mm |
SX-1000 |
1250mm |
1000mm |
35mm |
0.5-0.8mm |

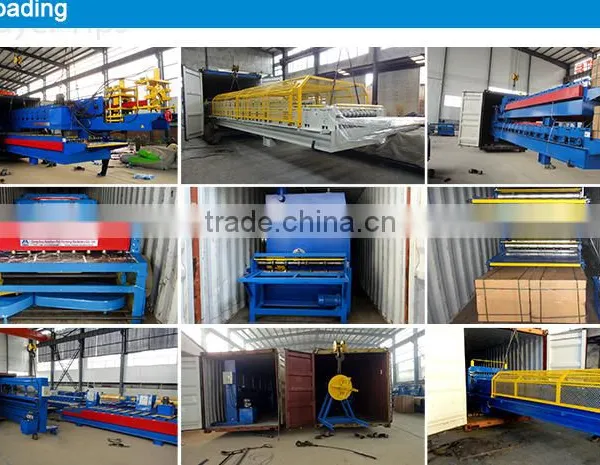

Packing:container
Shipping Terms:FOB Dalian,CIF,CFR
