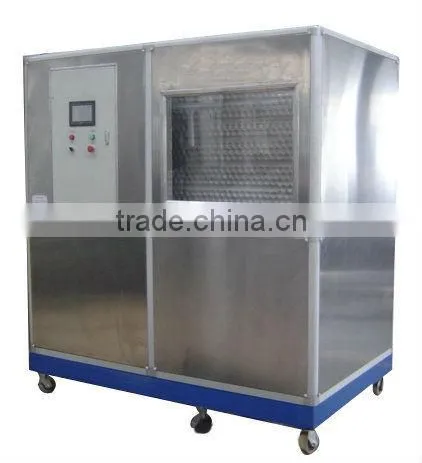

Help Center3T/day Plate Ice Machine
Related Products
-
Famous Brand Plate Ice Machine/Ice Maker for Sale (20ton/24hours)US$ 4,000 - 60,000MOQ: 1 Unit -
2013 10T/24h Automatic Plate Ice Machine for Fishing BoatsUS$ 4,000 - 60,000MOQ: 1 Unit
-
3 Ton/Day Water Cooled Automatic Plate Ice Making MachineUS$ 14,100 - 16,800MOQ: 1 Unit
-
Pop Fast Cooling Dry Ice China Automatic Ice Maker Plate Ice Making MachineUS$ 14,100 - 16,800MOQ: 1 Unit
-
Portable Automatic Restaurant Plate Ice Makers Plate Ice Machine FactoryUS$ 21,600 - 26,000MOQ: 1 Unit
Specifications
ice plate maker1. dry, hard ice block
2. good cool storage effect
3. clean ice for food
4. small surface
Name: Energy Saving Industrial ice plate maker
Features of plate ice :
Thickness 4-30mm, size (20cm-40cm)X(30cm-50cm), transparent, dry and hard ice block with irregular shape.
High density, small surface area and good cool storage effect.
Even cooling effect, good ventilation performance, and constant refrigerating temperature,
suitable for refrigeration of aquatic products.
Specification 1 of plate ice maker machine 3ton to 10ton /day:
Model |
JJPIM30WF |
JJPIM40WF |
JJPIM50WF |
JJPIM80WF |
JJPIM100WF |
|
|
Ice production capacity (kg/24hour) |
3000 |
4000 |
5000 |
8000 |
10000 |
|
Refrigerating capacity(KW) |
17.5 |
23.5 |
29.5 |
47 |
59 |
|
Electric system |
380V-50Hz-3P |
|||||
Input power (KW) |
8.2 |
10.8 |
13.9 |
29.3 |
28.3 |
|
|
Diameter of water supply pipe |
1/2’’ |
1/2’’ |
1/2’ |
3/4’’ |
3/4’ |
|
Net Weight (kg) |
1600 |
1800 |
2200 |
3100 |
4000 |
|
Dimension of unit |
L (mm) |
2000 |
2000 |
2000 |
2500 |
3500 |
W (mm) |
1500 |
1500 |
1800 |
2300 |
2300 |
|
H (mm) |
2200 |
2200 |
2200 |
2500 |
2500 |
|
Specifications for plate ice maker machine 15ton to 30 ton/ day:
Model |
JJPIM150WF |
JJPIM200WF |
JJPIM250WF |
JJPIM300WF |
||||
|
Ice production capacity (kg/24hour) |
15000 |
20000 |
25000 |
30000 |
||||
Refrigerating capacity(KW) |
88.5 |
118 |
147.5 |
177 |
||||
Electric system |
380V-50Hz-3P |
|||||||
Input power (KW) |
37 |
51 |
62 |
65 |
||||
|
Diameter of water supply pipe |
3/4’ |
1’’ |
1’’ |
1-1/4’’ |
||||
Net Weight (kg) |
4500 |
5200 |
6300 |
7100 |
||||
Dimension of unit |
L (mm) |
4100 |
4700 |
5300 |
6000 |
|||
W (mm) |
2300 |
2300 |
2300 |
2300 |
||||
H (mm) |
2500 |
2500 |
2500 |
2800 |
||||

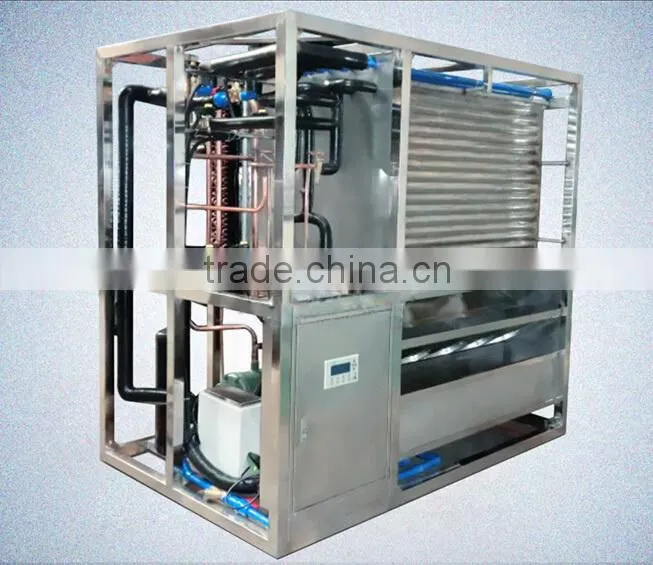

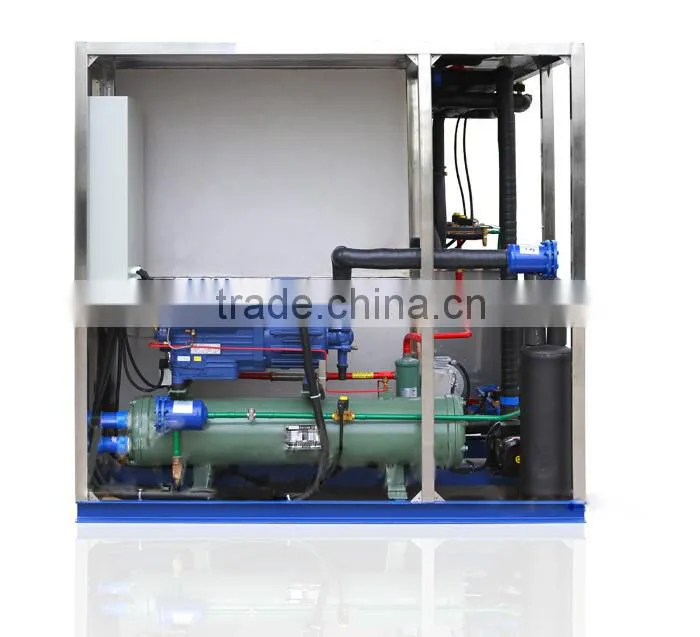

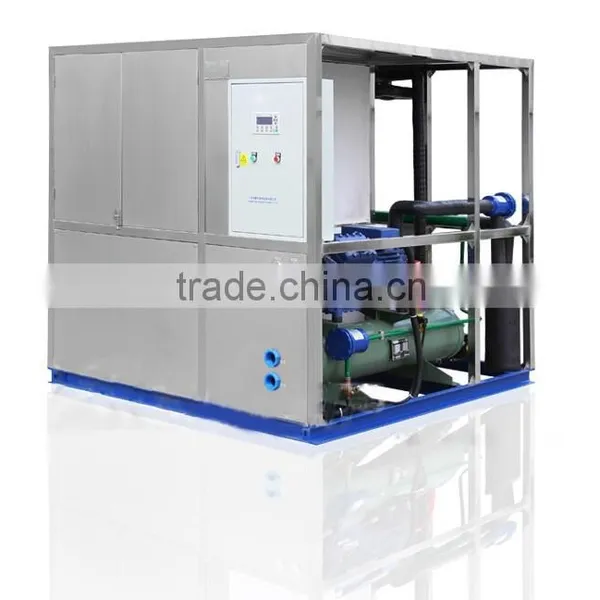

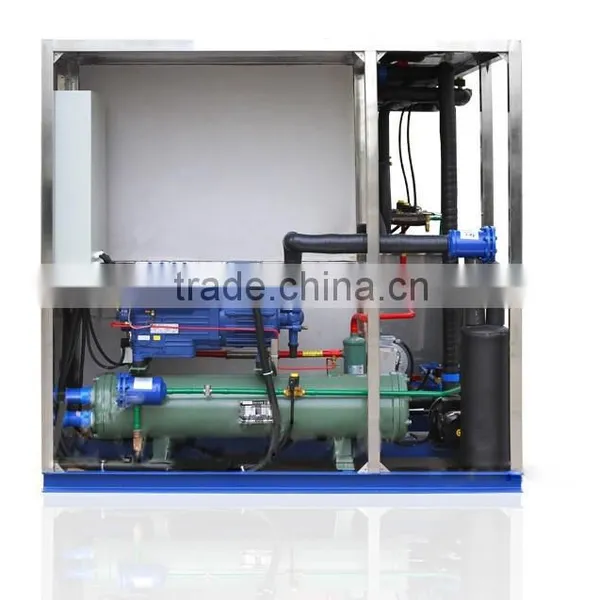

Modular design, small s;ace requirement, and easy installation and maintenance.

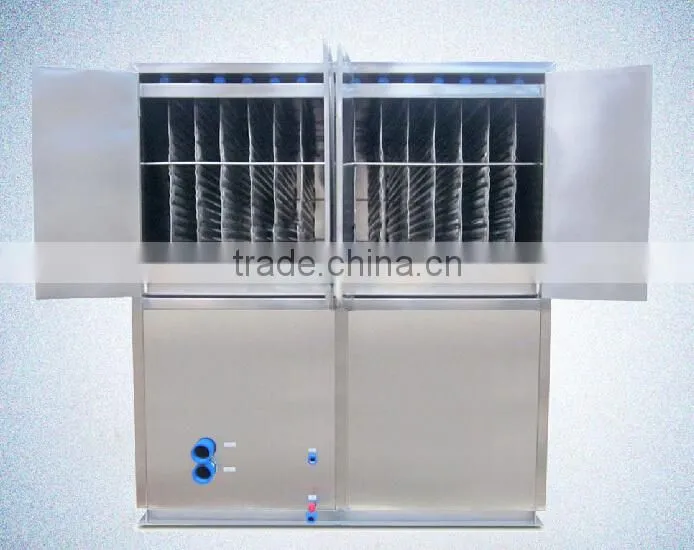

The honey comb flow channel is used in the design of evaporator fins, with turbulent flow of refrigerant in fins.
Featuring good heat exchanging effect, and with firmness and good endurance.
Evaporator fins are made of foodsafe S/S, featuring hygiene and cleanliness, and harmlessness to human,
fully in compliance with relevant standard on food security.
World famous brand PLC is used for automatic control. Only one button press for start-up and shutdown, featuring reliable and stable control, and low faults.
The utilization of condensation heat is made in process to quickly transfer hot gas for ice failing.
It can shorten ice-failing time, reduce energy loss and efficiently save energy.
Application: Suitable for ice storage engineering, edible ice, refrigeration of aquatic products,
chemical products, artificial snow on ski field, cooling coal mining well, etc.
Notes
1. Standard voltage; 380V-3P-50Hz that can be changed to 60Hz , 200/220V, 400V, 440V as required.
2. Standard ambient temperature; 25°C, water supply temperature; 16°C, evaporation temperature;-15°C.(seawater plate ice machine unit evaporator temperature; -15°C)
3. Applicable ambient temperature;5-40°C, water supply temperature; 0-40°C
4. This machine is applicable to fresh water, refrigerans; R22/R404a. If choose R717 or only evaporation unit, please inform us in advance
5. Thickness of ice; 5mm-15mm.
6. The input power is given at standard voltage and working conditions and therefore is only for reference.
Notes
1. Standard voltage; 380V-3P-50Hz that can be changed to 60Hz , 200/220V, 400V, 440V as required.
2. Standard ambient temperature; 25°C, water supply temperature; 16°C, evaporation temperature;-15°C.(seawater plate ice machine unit evaporator temperature; -15°C)
3. Applicable ambient temperature;5-40°C, water supply temperature; 0-40°C
4. This machine is applicable to fresh water, refrigerans; R22/R404a. If choose R717 or only evaporation unit, please inform us in advance
5. Thickness of ice; 5mm-15mm.
6. The input power is given at standard voltage and working conditions and therefore is only for reference.
