Specifications
1.Danfoss Compressor flake ice making machines2.Low Noise
3.Energy saving
4.Easy Maintenance,convenient relocation
Danfoss Compressor Commercial flake ice machines (1000kg/ day capacity )
General information:
Commercial flake ice machine is small-sized products specially designed for clients who need less amount of ice,
It has the advantages of small space requirement, easy maintenance and convenient relocation.
The components of the machine are made of stainless steel SUS304, aluminum alloy, and PE
that are in good conformance with the international standard HACCP and FDA.
The ice from this machine is very dry ,pure, powderless, uneasy blocking.
This machine can work constantly and efficiently for more than 10000 hour without any fault.
application :
The commercial flake ice machine is particularly suitable for refreshing vegetables and foodstuff in supermarket
and quick cooling for processing fishery products and butchery.
Specification
Model |
JJF10AF-A (Fresh Water) |
JJF10AF-B (Sea Water) |
Ice Production Capacity (Kg/24h) |
1000 |
1000 |
Refrigerating Capacity (KW) |
6.25 |
6.37 |
Electric system |
380V-50HZ-3P |
380V-50HZ-3P |
Input Power (Kw) |
4.21 |
5.2 |
Diameter of water supply pipe |
1/2” |
1/2” |
Net Weight (Kg) |
210 |
230 |
|
Dimension of unit |
1310 mm (L) |
1400 |
690/1060mm (W1/W2) |
910 |
|
882/1000mm (H1/H2) |
1078 |
|
Note |
With ice bin and ice truck |
Without ice bin and ice truck |
4. Specifications Matching (Freon System):
Name |
Brand |
Model |
Quantity |
Origin |
|
I. Flack ice machine whole system (1000KG/Day) | |||||
1. Flack Ice machine |
IDEAL |
ZNPB1.0Z-DF/FA |
1 Unit |
China |
|
2. Compressor |
Danfoss/Copeland |
ZB38KQE |
1 Unit |
Denmark/U.S.A. |
|
3. Ice Storage |
1 Unit |
China |
|||
4. Air-Cooled Condenser |
Nuoerda |
1 PC |
China |
||
5. Condenser Fan |
Maer |
1 PC |
China |
||
6. Speed Reducer |
Gongji |
1 PC |
Taiwan |
||
7. Water Pump |
Moli |
1 PC |
China |
||
8. Salt Water Pump |
Xishan |
1 PC |
China |
||
9. Electric Controller |
Icepower |
1 Unit |
China |
||
10. Ice knife |
Icepower |
Stainless steel |
1 PC |
China |
|
11. Liquid Switch |
Anlong |
1 PC |
China |
||
12.Photoelectricity Switch |
Xinou |
1 PC |
China |
||
II. Parts | ||||
1. Expansion Valve |
Danfoss |
1 PC |
Denmark |
|
2. Dry and Filter |
ALCO |
1 PC |
U.S.A |
|
3. High pressure gauge |
Changheng |
1 PC |
China |
|
4. Low pressure gauge |
Changheng |
1 PC |
China |
|
5. Solenoid valve |
CASTEL |
1 PC |
ITALY |
|
5. Pictures

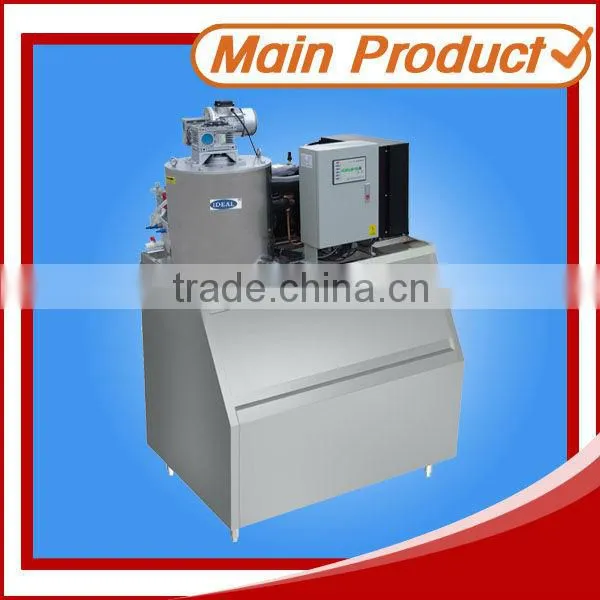

Small Cheap flake ice maker machines (1000kg/ day capacity)
Stainless steel Evaporater

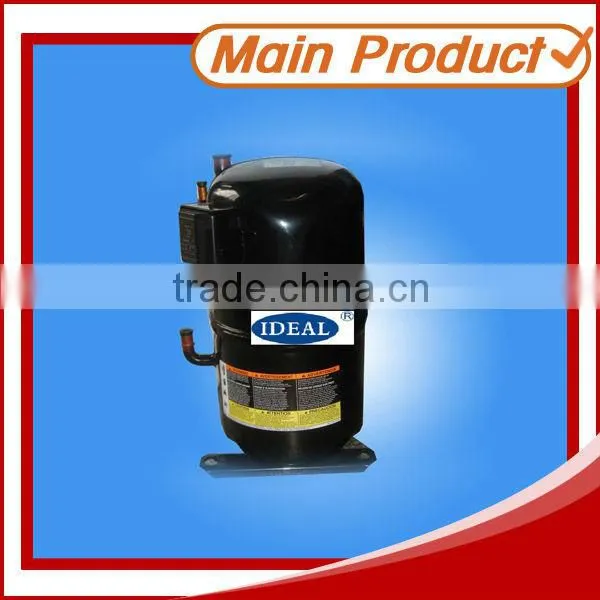

Danfoss compressor:
Notes:
(1). Standard voltage; 380V-3P 50Hz that can be changed to 60Hz , 200/220V, 400V, 440V as required.
(2). Standard ambient temperature; 25°C, water supply temperature; 16°C, evaporation temperature;-20°C. (seawater plate ice machine unit evaporator temperature; -15°C)
(3). Applicable ambient temperature;5-40°C, water supply temperature; 0-40°C.
(4). This machine is applicable to fresh water, refrigerans; R22/R404a. (It must confirmed in advance).
(5). Thickness of ice; 1.5mm-2.0mm.
(6). The input power is given at standard voltage and working conditions and therefore is only for reference.

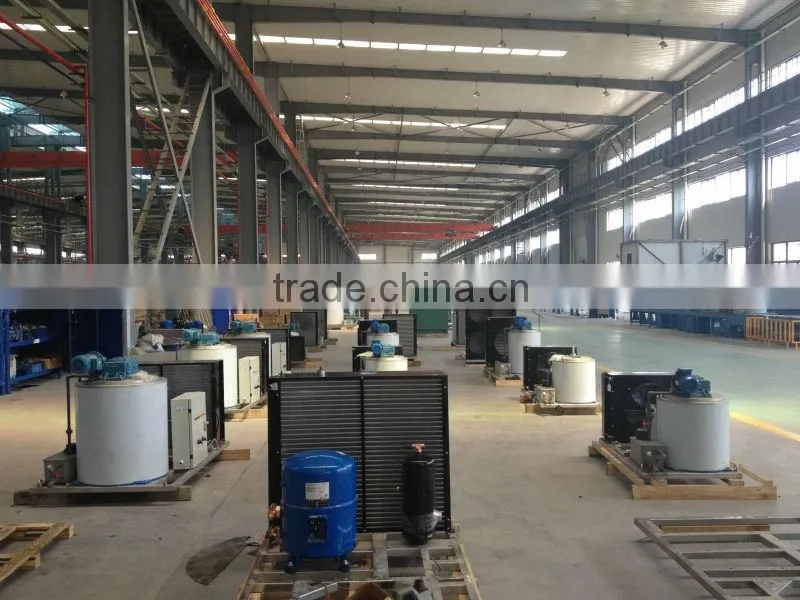

6. Factory and Packing:
