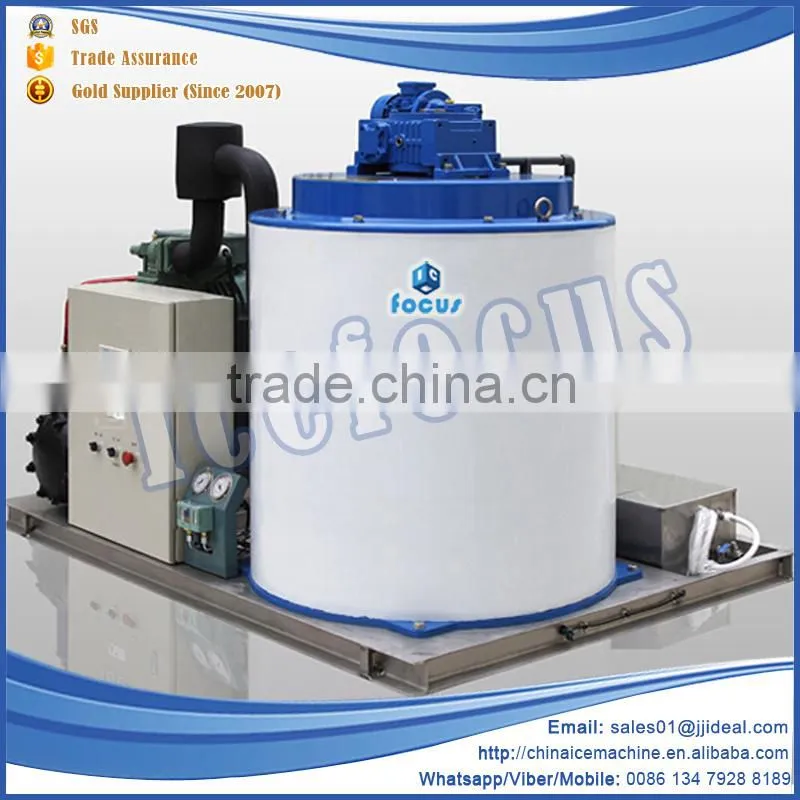

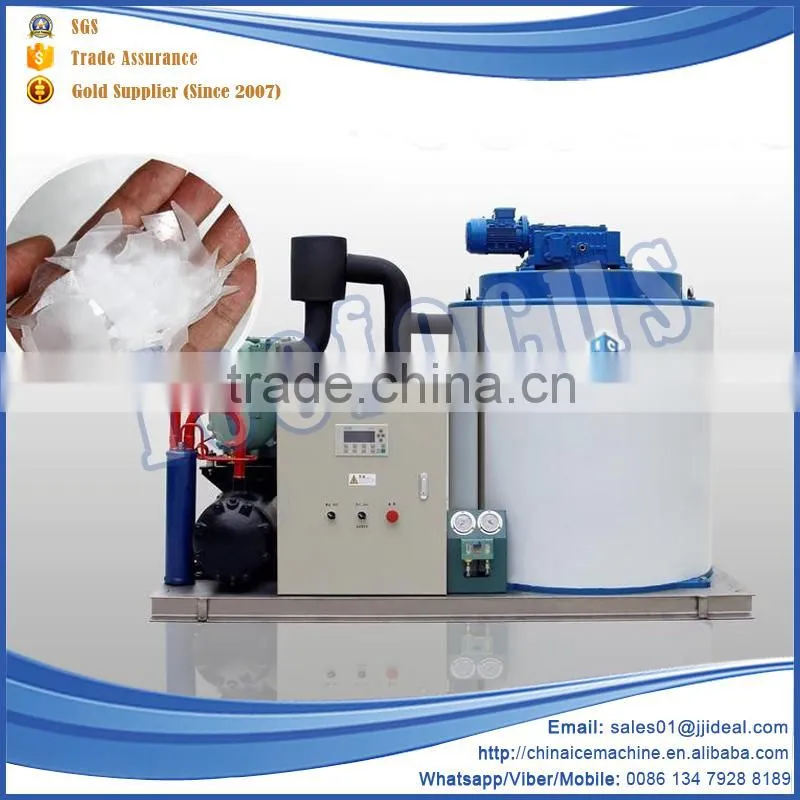

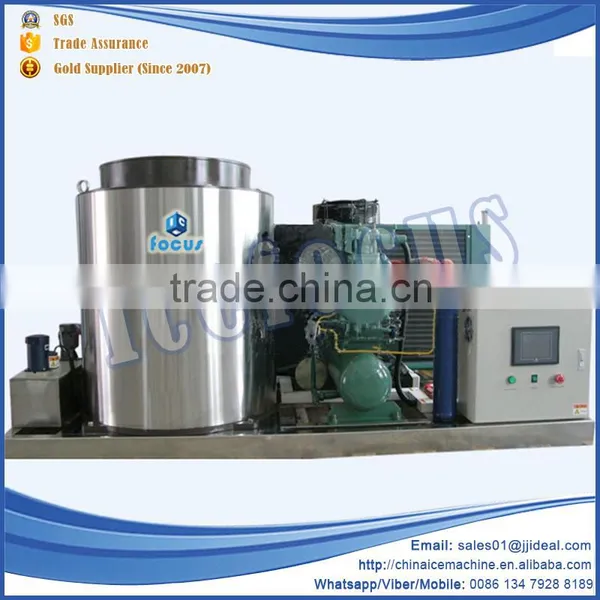

Easy maintenance portable flake ice machine flake ice maker machine
- 100 Set / Sets per Month
- GUANGZHOU/SHENZHEN/SHANGHAI
- T/T Credit Card
-
200kg Dry ice pellets making machine for dry ice production
-
New York Liquid Flowmeter 024W26116-002 Flow Switch HF68 Mechanical Target
-
New slide valve potentiometer coupling 111Q0451313
-
New Kunteng 5 motherboard 649C1152G01 York FRICK circuit board 649C1158G01
-
New York FRICK Industrial Refrigeration Unit 649C1091G01 Kunteng 4-LX Control System Main Board
-
New GEA explosion-proof energy level sensor model 62750016
Product Details
| Condition: | New | Capacity: | 5000kg/24hour | Place of Origin: | Jiangxi, China |
| Brand Name: | Icefocus | Model Number: | JJF50AF-A(B) | Ice Shape: | Flake Ice |
| Voltage: | 380V-50Hz-3P | Power(W): | 15.28 KW | Dimension(L*W*H): | 1850* 1370*1373mm |
| Weight: | 1100 KG | Certification: | Other, CE,SGS,ISO | Warranty: | 12 months |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Jiujiang Ideal Imp. & Exp. Co.,Ltd is specializing in ice machines, cold room project, refrigeration
equipments items for more than 8 years in China since 2007. And the brand name "Icefocus" has
been registered for developing our business and agents in the world. We are supplying
"ICE MACHINES" including the following items:
(1) Flake ice machines: Fresh Water system 500kg/24hour to 60Ton/24hour.
Sea Water System 1Ton/24hour to 20Ton/24hour.
(2) Plate ice machines: 3Ton/24hour to 15Ton/24hour.
(3) Tube ice machines: 2Ton/24hour to 30Ton/24hour.
(4) Cube ice machines: Commercial Cube Ice Machines 23kg/day to 1000kg/day;
Industrial Cube Ice Machines 2Ton/24hour to 20Ton/24hour.
(5) Block ice machines: 1Ton/24hour to 20Ton/24hour.
Thanks for remembering our brand "ICEFOCUS" ,
Hight Quality Ice Machines and Cold Rooms Spokesman !
Our Brother Company "Hongkong Ideal Refrigeration Equipment Ltd."
Flake Ice Maker, Flake Ice Making Machine Design, Material, Technology Characteristics:

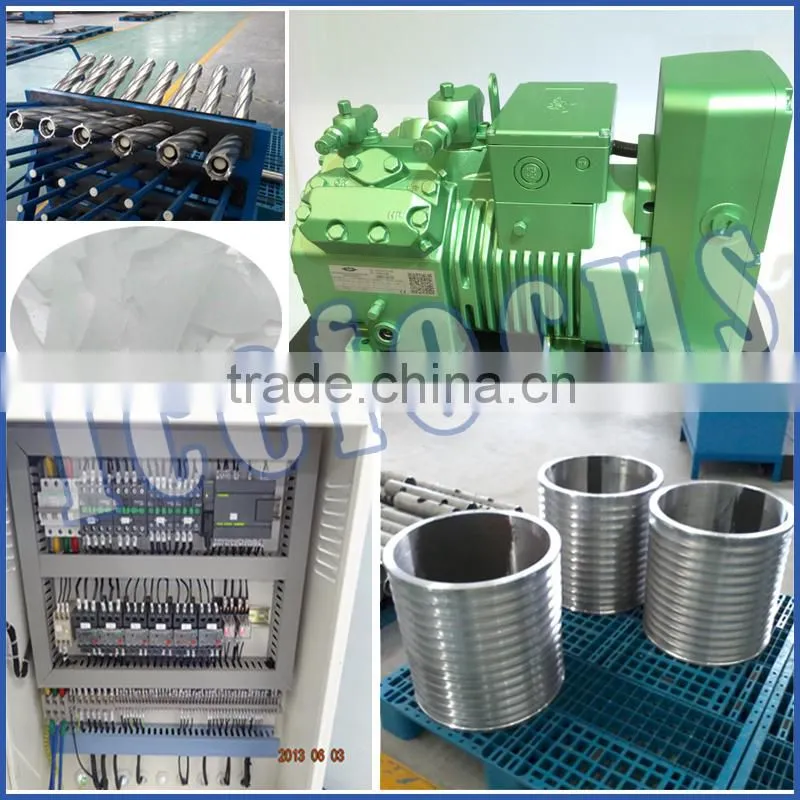

Commercial Flake Ice Machine is small size products specially designed for clients who don't need much amount of ice. It has the advantage of small space requirement, easy maintenance and convenient relocation. The components of the machine are made of Stainelss Steel SUS304, Aluminum Alloy, and PE that are in good conformance with the international standard. The ice from this machine is very dry, pure, powderless, uneasy blocking. This machine can work constantly and efficiently for more than 10000 hours without any faults.
Flake Ice Machine Application Fields :
The commercial flake ice machine is particularly suitable for refreshing vegetables and foodstuff in supermarket and quick cooling for processing fishery products and butchery.
Flake Ice Making Machine Details & Sepcifications:
Model
| JJF50AF-A | JJF80WF-A | JJF100WF-A | JJF150WF-A |
| Ice Production Capacity | 5000kg/24hour | 8000kg/24hour | 10000kg/24h | 15000kg/24h |
| Cooling Capacity | 28.8 KW | 43.2 KW | 51.25 KW | 106.6 KW |
| Power System | 380V-50Hz-3P | 380V-50Hz-3P | 380V-50Hz-3P | 380V-50Hz-3P |
| Input Power | 15.28 KW | 22.79 KW | 29.19 KW | 55.47 KW |
| Diameter of Water Supply Pipe | 3/4" | 3/4" | 3/4" | 3/4" |
| Net Weight | 1100 KG | 1300 KG | 1500 KG | 3200 KG |
| Machine Size including ice storage size (mm) | 1850L* 1370W*1373H | 2300L*1650W*1525H | 2300L*1650W*1745H | 3200L*2010W*2061H |
| Cooling Way | Air Cooled /Water Cooled | Air Cooled /Water Cooled | Air Cooled/Water Cooled | Air Cooled/Water Cooled |
(1) Besieds Standard Voltage, we can manufacture the ice machine with
200V/240V/400V/440V-60Hz-3P according to customers request.
(2) Standard Ambient Temperature: 25C. Water Supply Temperature 16C. Evaporating
Temperature -20C.
(3) Applicable ambient temperature 5C-40C. water supply temperature 0C-40C.
(4) This series products are applicable to fresh water, Refrigerant R404A ( for 500kg/day --
1000kg/day ice machine), Refrigerant R22 for 1500kg/day---3000kg/day ice
machines). If you choose R404A, please inform us in advance.
(5) The outer size includes ice storage bin size.
(6) Thickness of ice: 1.5mm-2mm
(7) The input power is given at standard voltage and working conditions and therefore is
only for reference.
(8) With the development of technology, the data are subject to change without notice.
