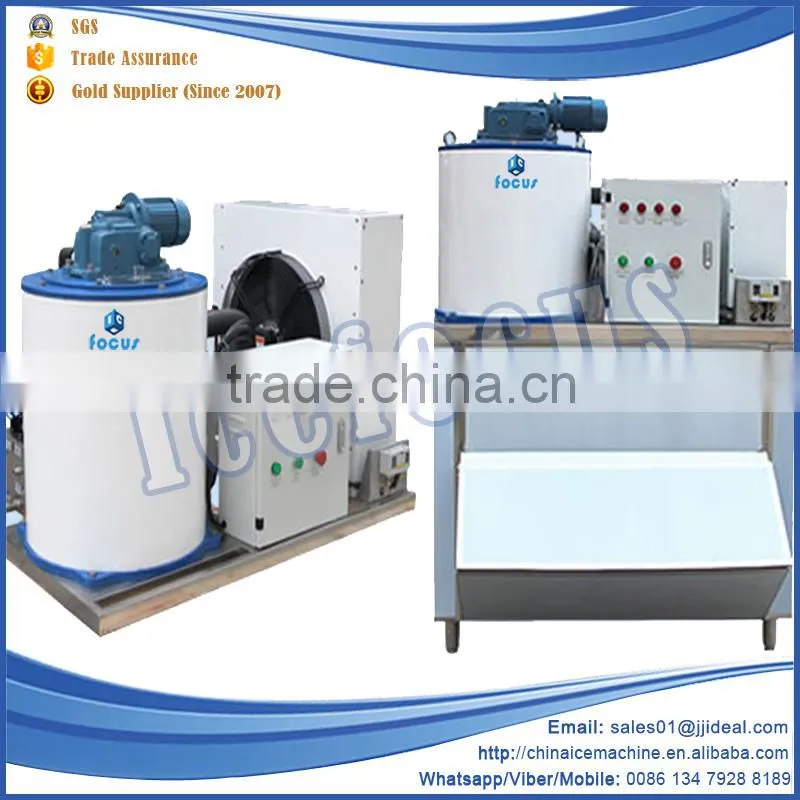

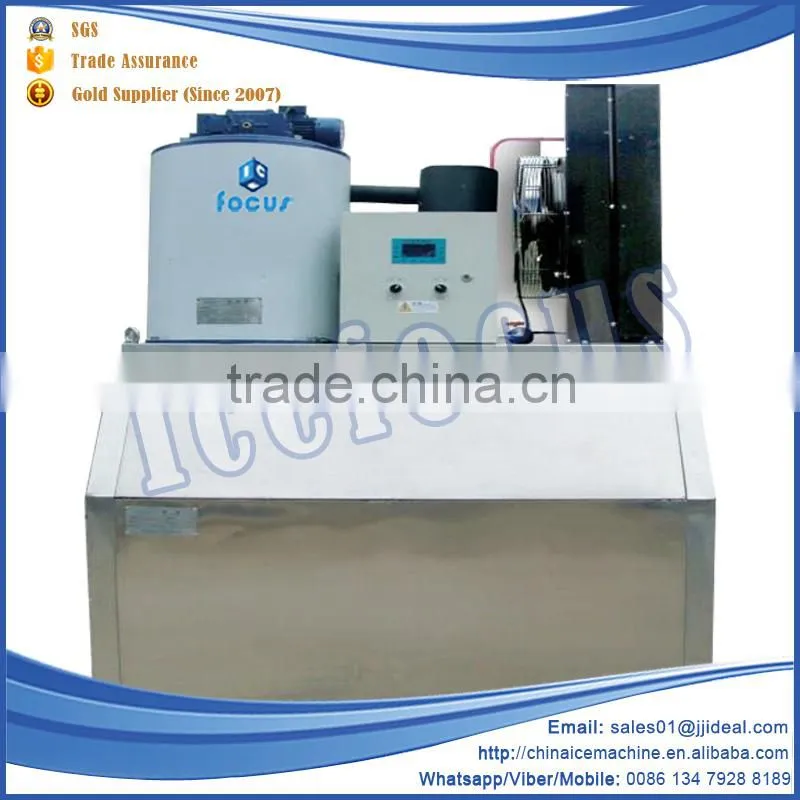

500kg/Day Fresh Water Flake Ice Machine (JJF050AF-A)
Design, Material, Technology Characteristics:
Commercial Flake Ice Machine is small size products specially designed for clients who don't need much amount of ice. It has the advantage of small space requirement, easy maintenance and convenient relocation. The components of the machine are made of Stainelss Steel SUS304, Aluminum Alloy, and PE that are in good conformance with the international standard. The ice from this machine is very dry, pure, powderless, uneasy blocking. This machine can work constantly and efficiently for more than 10000 hours without any faults.
Application Fields :
The commercial flake ice machine is particularly suitable for refreshing vegetables and foodstuff in supermarket and quick cooling for processing fishery products and butchery.
Details & Sepcifications:
| Model | JJF050AF-A(B) |
JJF050AF-A(B) |
| Ice Production Capacity | 500kg/24hour |
500kg/24hour |
| Cooling Capacity | 3.05 KW | 3.05 KW |
| Power System | 220V-50Hz-1P |
380V-50Hz-3P |
| Input Power | 2.27 KW |
2.27 KW |
| Diameter of Water Supply Pipe | 1/2" |
1/2" |
| Net Weight | 160 kg |
160 kg |
| Machine Size (mm) | 1310L*1050W*1000H |
1310L*1050W*1000H |
| Cooling Way | Air Cooled |
Air Cooled |
Notes:
(1) Besieds Standard Voltage, we can manufacture the ice machine with
200V/240V/400V/440V-60Hz-3P according to customers request.
(2) Standard Ambient Temperature: 25C. Water Supply Temperature 16C. Evaporating
Temperature -20C.
(3) Applicable ambient temperature 5C-40C. water supply temperature 0C-40C.
(4) This series products are applicable to fresh water, Refrigerant R404A ( for 500kg/day --
1000kg/day ice machine), Refrigerant R22 for 1500kg/day---3000kg/day ice
machines). If you choose R404A, please inform us in advance.
(5) The outer size includes ice storage bin size.
(6) Thickness of ice: 1.5mm-2mm
(7) The input power is given at standard voltage and working conditions and therefore is
only for reference.
(8) With the development of technology, the data are subject to change without notice.

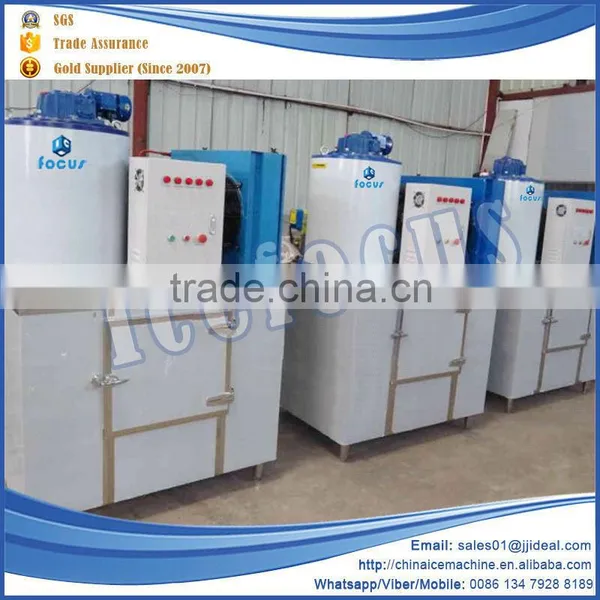

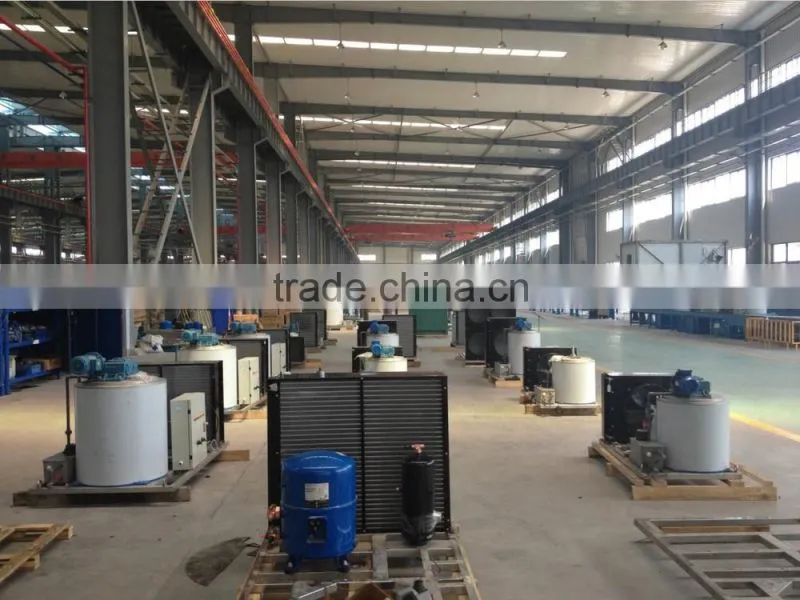

Our Machine and Factory:
