Specifications
1.micro-computer detecting &controlling systemtective device
3.easily adjusted
4.simply operate
5.transparent pure
Cube Ice Machine Application :
Ideal cube ice machine always satisfy various customers in the field of such as bar,wine bar, seafood house, restaurant, etc.
Specification:
Model |
Refrigerants |
Max Output (kg) |
Storage Capacity (kg) |
Condenser Unit |
Voltage (V) |
Rated Power (W) |
Dimension (cm) |
|||
W |
D |
H |
||||||||
ND210A/W |
R404A/R22 |
90 |
40 |
Air/Water |
220 |
445 |
66 |
66 |
83 |
|
ND 270A/W |
R404A/R22 |
120 |
45 |
Air/Water |
220 |
527 |
66 |
66 |
83 |
|

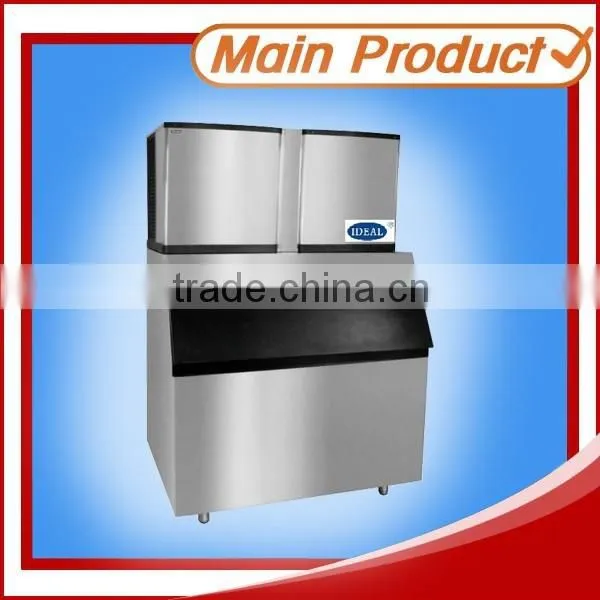

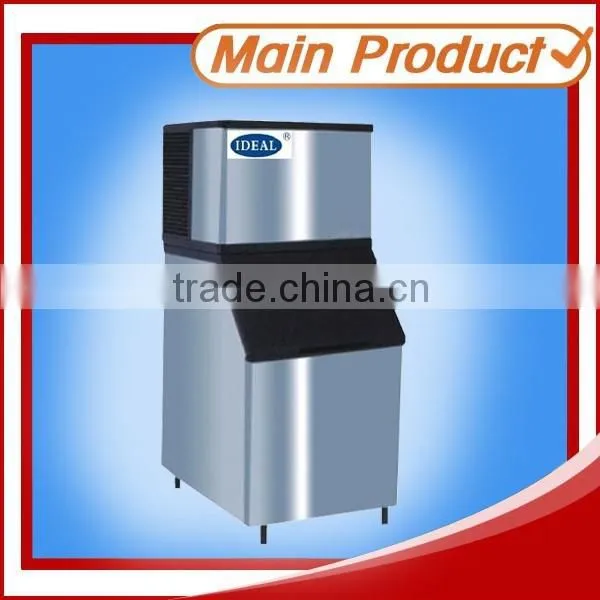

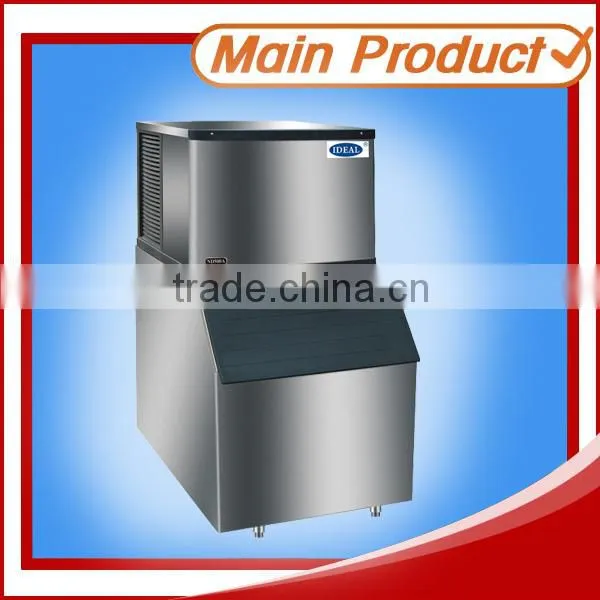

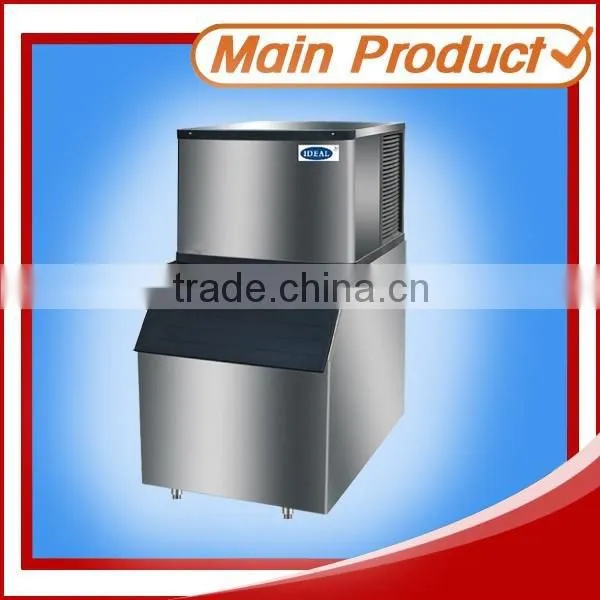

This series ice maker is a whole with ice bin and ice maker together and holding very small space.
TECHNICAL DATA:
1.The technical data based on 20°C ambient temp.10°C water inlet temp.
2.Power supply:1P/220v/50HZ.3p/380v/50hz
3.The ice shape:square(cube)
4.Cooled mode: Air-cooled or water cooled
5.Refrigerant: R404a/R134a
6.Evaporating temp.-15°C
7.Condensing temp.54.5°C
8.Max water inlet pressure:0.55Mpa
9.ICE SIZE(cm):
--Square ice:2.00*2.00*2.00
--Half square:0.95*2.96*2.22
--Big square:2.58*2.58*2.22
