Home > Products > Block Ice Machine > Competitive Price containerized block ice machine with latest technology

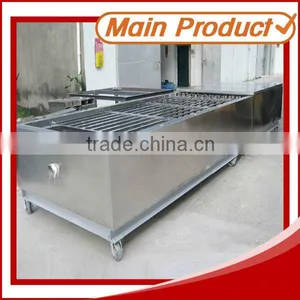

Competitive Price containerized block ice machine with latest technology
- 1000 Unit / Units per Month
- SHANGHAI QINGDAO
- T/T Credit Card
- 200kg Dry ice pellets making machine for dry ice production
- New York Liquid Flowmeter 024W26116-002 Flow Switch HF68 Mechanical Target
- New slide valve potentiometer coupling 111Q0451313
- New Kunteng 5 motherboard 649C1152G01 York FRICK circuit board 649C1158G01
- New York FRICK Industrial Refrigeration Unit 649C1091G01 Kunteng 4-LX Control System Main Board
- New GEA explosion-proof energy level sensor model 62750016
Product Details
Condition: | New | Capacity: | 3tons/day | Place of Origin: | Jiangxi, China |
Brand Name: | JJIDEAL block ice maker machine | Model Number: | MB30 block ice maker machine | Ice Shape: | Ice Block |
Voltage: | 380V | Power(W): | 24.15KW | Dimension(L*W*H): | 1800mm x 1200mm x 1500MM |
Weight: | 1,500kg | Certification: | Other, ISO9001:2000,HACCP,FDA | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.Block ice maker machine2.Save power and water
3.All made by stainless steel
4.Nature of ice's hygienic
5.Little pollution
Description of MB100 edible ice making machine:
JJMB series of ice block machine is a new type with high efficiency units, which mainly aiming at the Africa, Middle East and Oceania. This machinery units adopt the integrated design, easy to install, just need connect the power. The ice-making tank adopt the Polyurethane foam
technology, it have good viscosity performance,avoiding the defects of foam uneven. What’s more, it’s design according to the theoretic fluid, so the flow stability.
Capability description of MB30 edible ice making machine:
NO. | Parameters | Technical data | |
1 | Name | Ice Block Machine | |
2 | Model | MB30 | |
3 | Quantity | 1Units | |
4 | Daily output | 3tons/day | |
5 | Weight | 1,500kg | |
6 | Measurement | Main machine | 1800mm x 1200mm x 1500mm |
Ice-making tank | 1940mm x 1740mm x 1065mm | ||
Size of Ice Block | 350mm x 100mm x 800mm (25kg/piece, total 36pieces ice block can, produce three times ice a day, total 108pieces ice a day.) | ||
7 | Noise | 55dB | |
8 | Refrigerant | R404a /R507/R22 | |
9 | Evaporating temp. | -10°C | |
10 | Condenser temp | +40°C | |
11 | Necessary cooling capacity | 24.15KW | |
12 | Input water temp. | 28°C | |
13 | Ambient temp. | 40°C |
Ice making process of ice block making machine.
As shown in the animation:
1. First fully feed the ice bucket with water, press the button and start the refrigeration system of the ice block machine.
2. The agitator makes the brine flow cyclically which will have a heat transfer with the refrigerant inside the Ti evaporative coils and then the temperature is lowered.
3. Then the low temperature brine water has a heat transfer with the fresh water inside the ice buckets which will be lowered to 0°C below.
4. After a certain ice making time, the water in the ice bucket all becomes ice when the ice thawing system of the block ice machine is beginning to run.
5. The crane will hoist a row of buckets down into the ice thaw tank full of running warm water. So the bucket temperature will be rising when the ice surface thaws and gets separated from ice bucket.
6. Then ice buckets will be hoisted to the ice can dumper and dump the ice blocks.
Use of ice block making machine:
Block ice has a large dimension but has small contact area so it does not melt easily. It is usually cut into different pieces for different uses in ice sculpture, sea shipping and fish vessels. The small pieces of ice block can be also be used for various purposes. There will be a little loss because the ice will thaw partly when crushed. We offers both transparent and milky white ice for your preference
