1.Features of our ice block making machine:
1. Pipe is used as evaporative coil to improve the heat transfer effect, and its stainlessness, anti-corrosion can guarantee
the long service time of the ice block machine.
2. The stainless PE parts between the brine and the fresh water is proper to mode and weld. And it works very well in a cold condition.
the particular design of ice thawing tank and ice dumping unit bring easier operation.
3. The thawing tank is heated by hot gas discharged from the compressor so that it is more energy saving and suitable for low water temperature area.
4. Modular and integrated design ensures it is easy to ship, move and install on the spot.
5. All kinds of brine refrigeration block ice machines can be customized according to our clients’ requirements.
2.Use of ice block making machine:
JJMB series of ice block machine is a new type with high efficiency units, which mainly aiming at the Africa, Middle East and Oceania.
This machinery units adopt the integrated design, easy to install, just need connect the power.The ice-making tank adopt the Polyurethane foam technology, it have good viscosity performance,avoiding the defects of foam uneven. What’s more, it’s design according
to the theoretic fluid, so the flow stability.

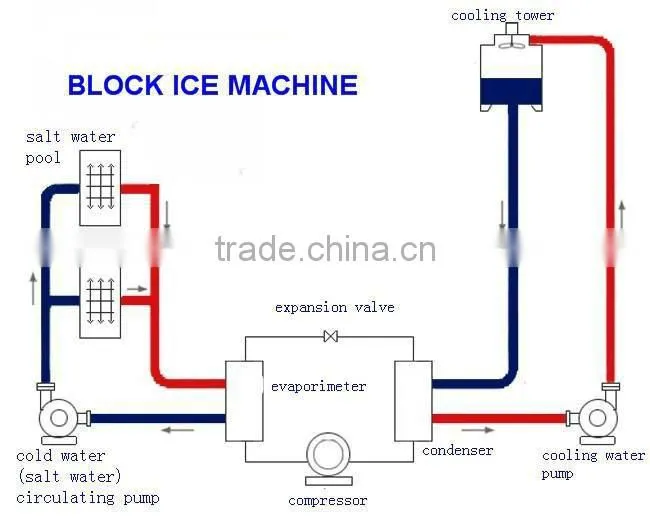

3.Ice making process of ice block making machine:
NO. |
Parameters |
Technical data |
|
1 |
Name |
Ice Block Machine |
|
2 |
Model |
MB30 |
|
3 |
Quantity |
1Units |
|
4 |
Daily output |
3tons/day |
|
5 |
Weight |
1,500kg |
|
6 |
Measurement |
Main machine |
1800mm x 1200mm x 1500mm |
Ice-making tank |
1940mm x 1740mm x 1065mm |
||
Size of Ice Block |
350mm x 100mm x 800mm (25kg/piece, total 36pieces ice block can, produce three times ice a day, total 108pieces ice a day.) |
||
7 |
Noise |
55dB |
|
8 |
Refrigerant |
R404a /R507/R22 |
|
9 |
Evaporating temp. |
-10°C |
|
10 |
Condenser temp |
+40°C |
|
11 |
Necessary cooling capacity |
24.15KW |
|
12 |
Input water temp. |
28°C |
|
13 |
Ambient temp. |
40°C |
|
|
14
|
Compressor |
Model |
Semi-hermetic compressor |
Brand name |
BITZER |
||
Amount |
1 |
||
Type |
4TCS-12.2 |
||
Capacity |
12HP |
||
15 |
Total Power of cooling tower |
2.95 |
|
16 |
Cooling air Volume |
200m3/h |
|
17 |
Cooling water flow |
40 m3/h |
|
18 |
Water consumption |
0.08m3/h |
|
19 |
Power of circulating water pump |
2.2KW |
|
22 |
Voltage |
380V/3Phase/50Hz |
|
23 |
ice block weight density |
900-950kg/m3 |
|
24 |
Power consumption |
70KW~80KW/ton |
|
4.Attention pls: ice cube making machine:
If you are interested and need to buy a cube ice machine, please kindly call us or leave your message. Our professional salesmanager willcontact you as earlier as possible. If you need to see the running of machine, you are also welcome to visit
our factory. That's necessary to judge the ability of supplier.
Contact information:
Stavros&Annie Huang
JIUJIANG IDEAL IMP.& EXP. CO.,LTD.
Mobile: 0086-134-7928-8189 (24 hours on line)
SKYPE: annie-jjideal
Trademanager: cnjjideal8
Website: https://img13.fr-trading.com
ADD: #503,No.16 Building, Hualong laiyin Meijun, Qianjin East Road, Jiujiang City, Jiangxi, China.

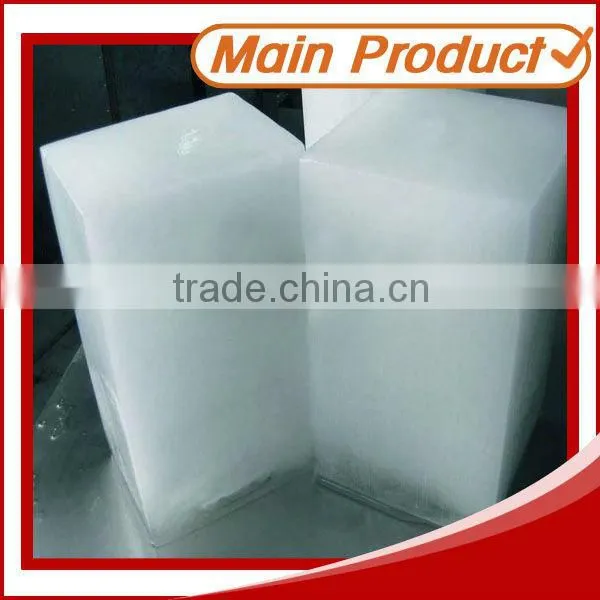

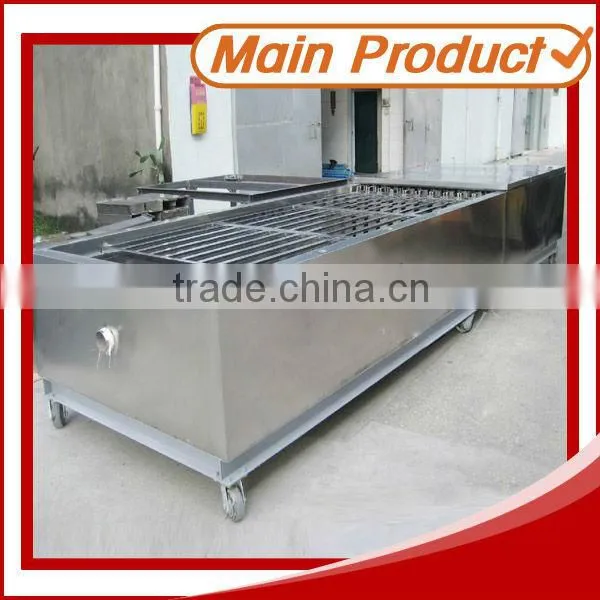

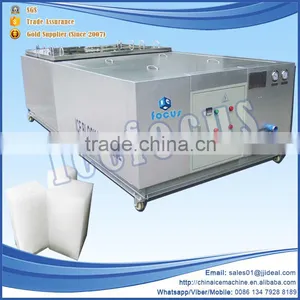

5. Pictures of our ice block making machine:
Block ice has a large dimension but has small contact area so it does not melt easily. It is usually cut into different pieces for different uses in ice
sculpture, sea shipping and fish vessels. The small pieces of ice block can be also be used for various purposes. There will be a little loss because
the ice will thaw partly when crushed. We offers both transparent and milky white ice for your preference
