Home > Consumer Electronics > Warmer Appliance > Heater Fan > 120V 100W Heating Element Enail Dnail Electric Coil Heater Flat Coil Heater

120V 100W Heating Element Enail Dnail Electric Coil Heater Flat Coil Heater

120V 100W Heating Element Enail Dnail Electric Coil Heater Flat Coil Heater thumbnail-1
120V 100W Heating Element Enail Dnail Electric Coil Heater Flat Coil Heater thumbnail-2
120V 100W Heating Element Enail Dnail Electric Coil Heater Flat Coil Heater thumbnail-3
120V 100W Heating Element Enail Dnail Electric Coil Heater Flat Coil Heater photo-1

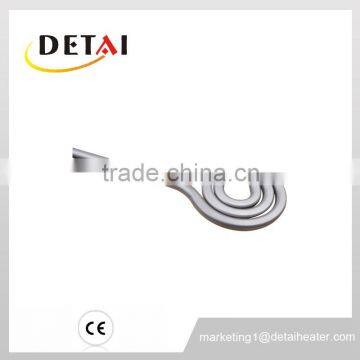

120V 100W Heating Element Enail Dnail Electric Coil Heater Flat Coil Heater photo-2

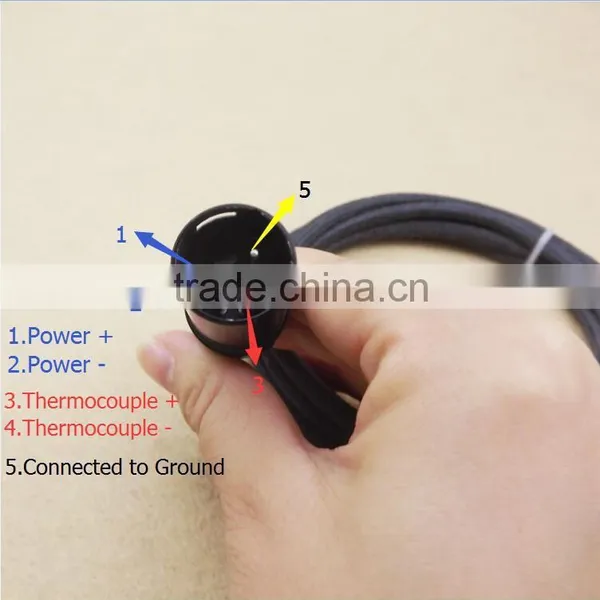

120V 100W Heating Element Enail Dnail Electric Coil Heater Flat Coil Heater photo-3
US$ 15 - 38 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Air Heater, Air Heater,Coil heater
Power Source:
Electric
Contact Supplier Request Quote Chat Now
Dongguan Detai Electronical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Air Heater, Air Heater,Coil heater
Power Source Electric
Place of Origin Guangdong, China
Brand Name Detai
Model Number COI-16-05
Dimension(L*W*H) customized
Weight According to the design
Voltage 120V(Customized)
Power(W) 150W(can be customized)
Certification UL,CE
Warranty 1 year
After-sales Service Provided No overseas service provided

  120V 100W Heating Element Enail Dnail Electric Coil Heater Flat Coil Heater



Product Description



What's the features of flat coil heater?

Standard sizes available with various cross section

Various Watt Density option available

Designed for even heat profile

Precision fit on Hot Runner Nozzles

Highly Non-corrosive

Choice of Terminal Exits

Advanced Thermal Engineering

Available with in built Thermocouple.

Length of Hot runner heater within 20-3000mm is mainly used for hot runner mold, as well as other precision heating system. Spring heating ring external using high quality Ni-Cr steel tube, the internal use of high purity magnesium oxide , high temperature resistance wire, and first-class manufacturing technology . The wire is after the annealed, with flexibility can be bent into an arc or circle heating. Its high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can be reuses.



What's the specifications of flat coil heater?

Flat coil heater
1,Long working life
2,SUS304&Incoloy800/840

3.Heating section(mm):2x4/2.2x4.2/3x3/3.3x3.3/3.5x3.5

4.CE&ROHS approved
5.1 year warranty



What's the technical Details of flat coil heater?

1.Use condition: environment temperature -20~+60°C, Relative temperature <95%



2.Leakage current:<0.5MA



3.Insulation resistance:≥5MO



4.Ground resistance:<0.1O



5.Voltage resistance: no electric breakdown for 1 minute under 1500V



6.Temperature endurance:100-1200°C



Voltage

120V(Can be customized 12~440V)

Wattage

100W( Can be customized  200~3000W)

Heating section(mm) A x B

2x4/2.2x4.2/3x3/3.3x3.3/3.5x3.5

Thermal protection

Build in Type " "K" Thermocouple

Operation Tempreature

0~800C

Lead cable

Fiberglass/ silicone/Kavlar/armor cable

Dimension Tolerance

Coil I.D + 0.1 to 0.2mm



What's the application of flat coil heater?

1.Hot Runner & Bushings

2.Tube Extrusion

3.Pipe Forming

4.Hot Runner Mould

5.Plastic Injection Machine

6.Plastic Extruder Machine

7.Enail



When inquiry flat coil heater, please kindly notify:

1.Volt&watt needed;

2.Dimension(inner diameter x heater width);

3.Heating section;

4.Wire length(our standard length is 1m, and we can customize as your requirement);

5.Quantity.

We will soon quote our best price to you.

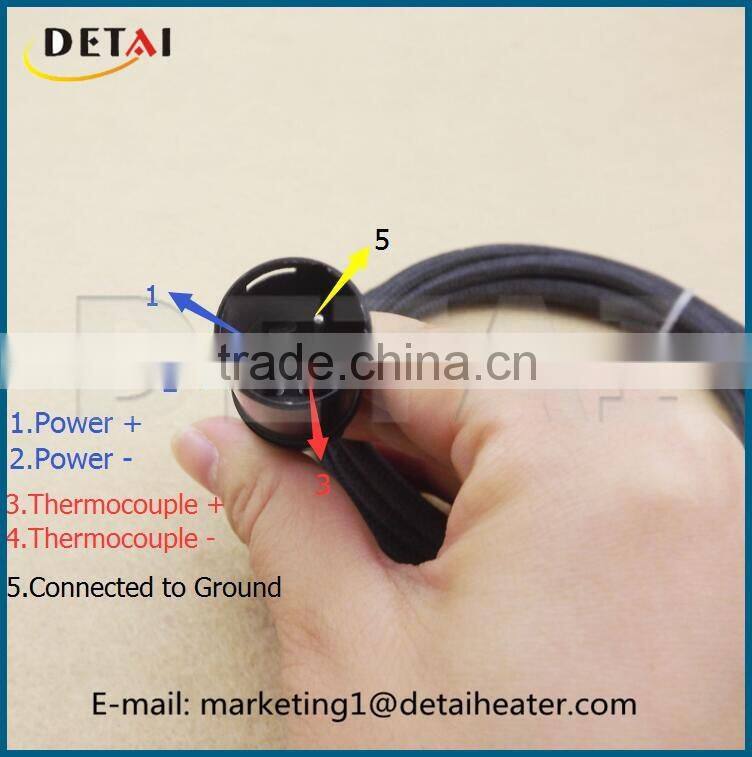

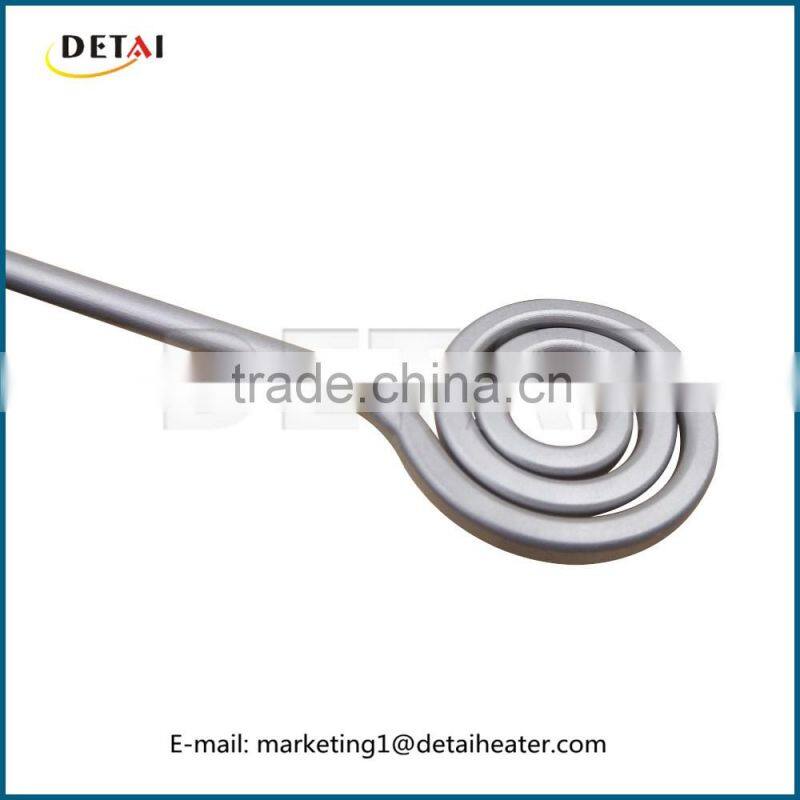

Detail images of coil heater heating element  :

 120V 100W Heating Element Enail Dnail Electric Coil Heater Flat Coil Heater120V 100W Heating Element Enail Dnail Electric Coil Heater Flat Coil Heater120V 100W Heating Element Enail Dnail Electric Coil Heater Flat Coil Heater






Packaging & Shipping



 Usually Plastic bag first then caron box. Wooden box is available if requirement.



 FAQ:



1. Are you manufacturer or trade company?



We are professional factory specialized in making heating element for over 18 years.



2. Will you offer free sample?



Yes,we will send you sample for free.



3. How much is the freight charge would be?



The freight cost depends on the weight and packing size and your area.



4. When can i expect to get your sample?



 The sample will be ready for delivery in 1-2 days and arrives in about 4-5 days.



5. Can you make as per to my requirements?



Yes,all the products are customized.



6. How can you guarantee your quality?



Quality is our culture. Certificates do not guarantee but samples do!



7. List some companies you have been working with.



Sinbo, Toshiba, Media, Glanz, Orbis, etc.



8. How can I trust you with my order and money?



We are Alibaba trade assurance supplier with USD 46000 limit. You may place order via Alibaba with us



9. How can i contact you to know more?



Atte:Shirley Mao



Skype: Shirley_heating element



Tel:+86 0769 82168763
