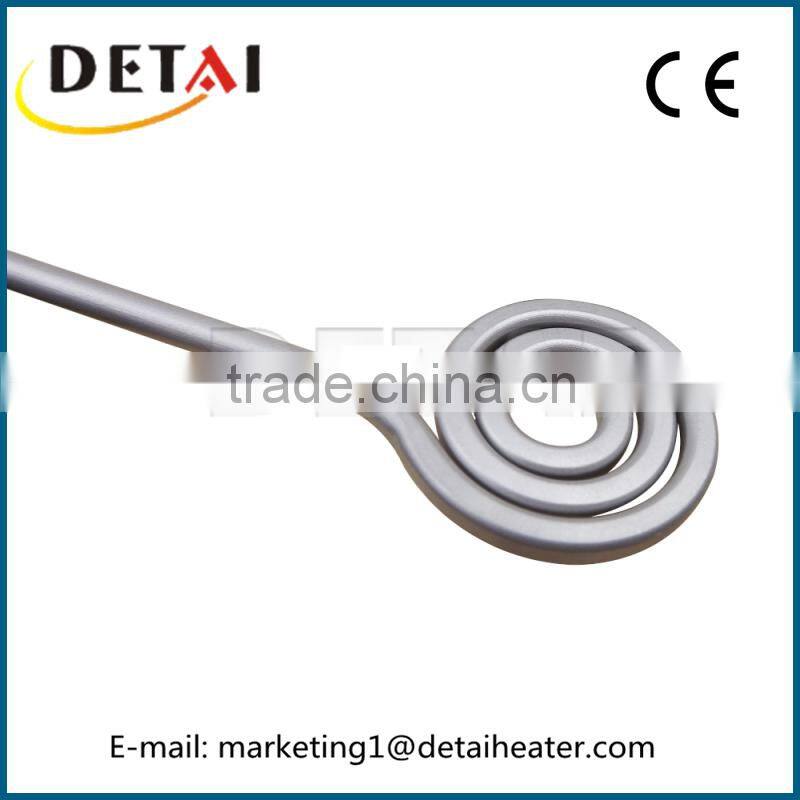

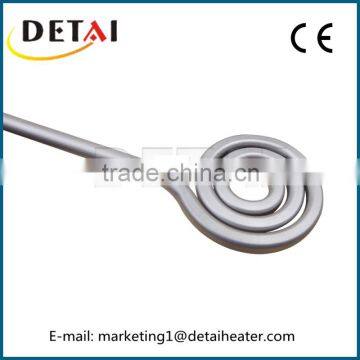

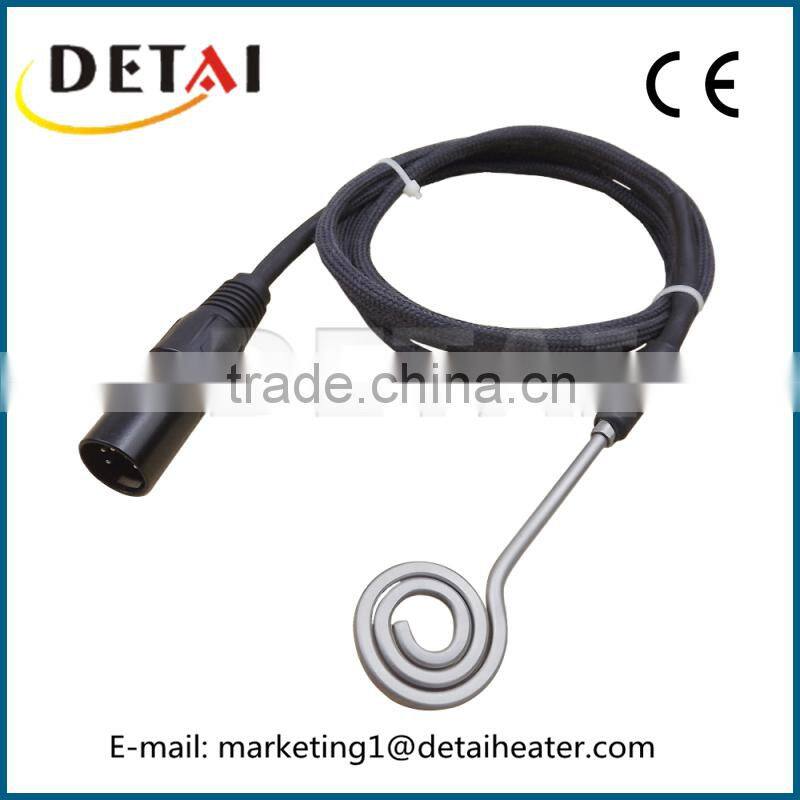

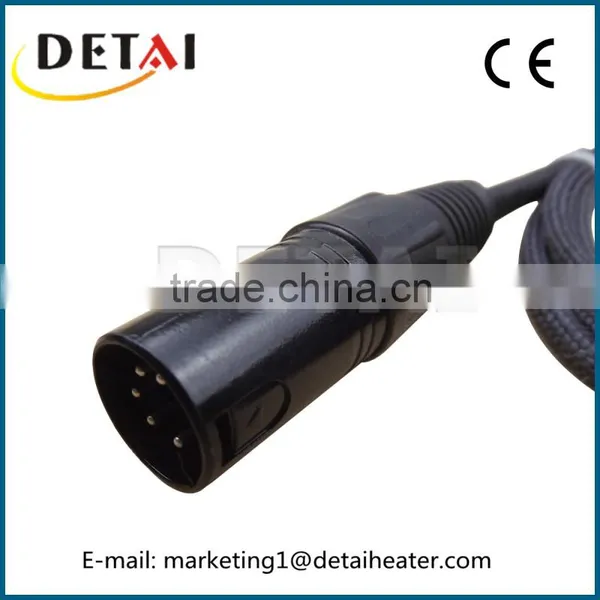

120V 100W Enail Coil Heater Size Flat Dnail Coil Heater 5 Pins Enail Heater Coil Hot Runner
Features of coil heater :
Standard sizes available with various cross section
Various Watt Density option available
Designed for even heat profile
Precision fit on Hot Runner Nozzles
Highly Non-corrosive
Choice of Terminal Exits
Advanced Thermal Engineering
Available with in built Thermocouple.
Length of Hot runner heater within 20-3000mm is mainly used for hot runner mold, as well as other precision heating system. Spring heating ring external using high quality Ni-Cr steel tube, the internal use of high purity magnesium oxide , high temperature resistance wire, and first-class manufacturing technology . The wire is after the annealed, with flexibility can be bent into an arc or circle heating. Its high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can be reuses.
Specifications of coil heater with thermocouple:
Hot Runner Coil Heater
1,Long working life
2,SUS304
3.Volt&watt:120V&100W
4.CE approved
5.1 year warranty
Technical Details of coil heater with thermocouple:
1.Use condition: environment temperature -20~+60°C, Relative temperature <95%
2.Leakage current:<0.5MA
3.Insulation resistance:≥5MO
4.Ground resistance:<0.1O
5.Voltage resistance: no electric breakdown for 1 minute under 1500V
6.Temperature endurance:100-1200°C
Voltage |
120V(Can be customized 12~440V) |
Wattage |
100W( Can be customized 200~3000W) |
Heating section(mm) A x B |
30mm flat coil heater |
Thermal protection |
Build in Type "K" Thermocouple |
Wire length |
1.8M |
Lead cable |
Fiberglass/ silicone/Kavlar/armor cable |
Dimension Tolerance |
Coil I.D + 0.1 to 0.2mm |
Application of coil heater with thermocouple:
1.Hot Runner & Bushings
2.Tube Extrusion
3.Pipe Forming
4.Hot Runner Mould
5.Plastic Injection Machine
6.Plastic Extruder Machine
7.Enail

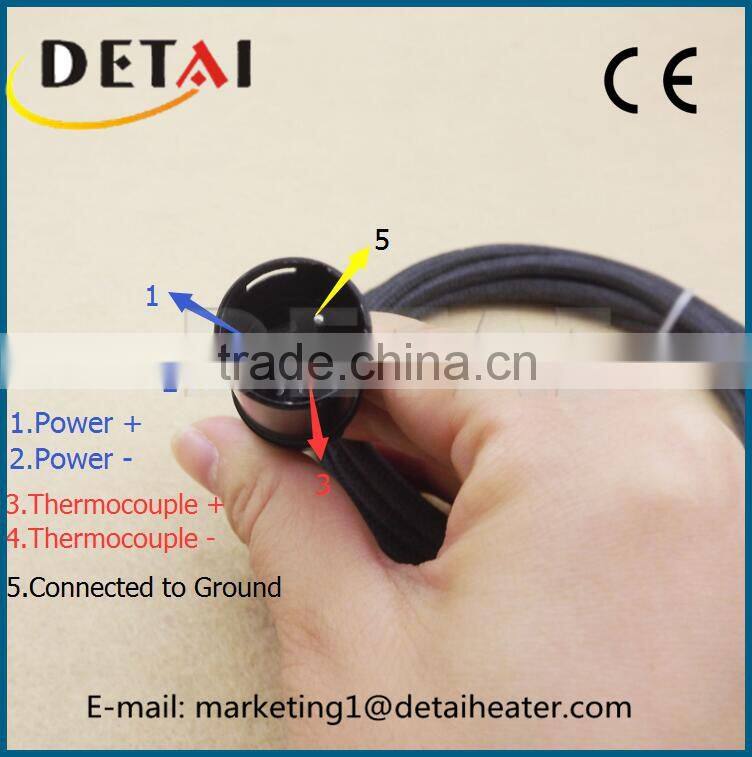

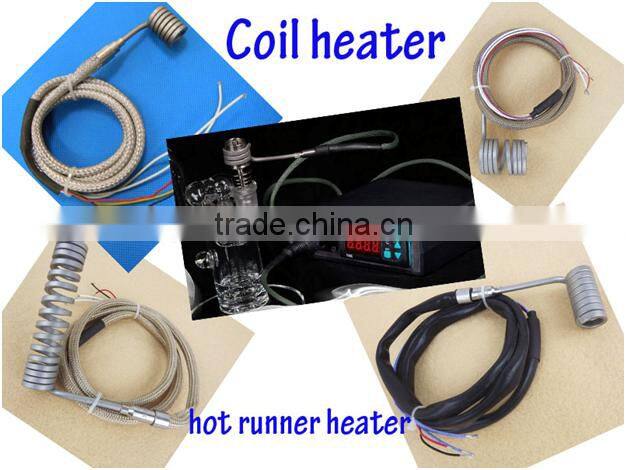

Detail images of coil heater with thermocouple:
Usually Plastic bag first then caron box. Wooden box is available if requirement.
Company cultures
1. Are you manufacturer or trade company?
We are professional factory specialized in making heating element for over 18 years.
2. Will you offer free sample?
Yes,we will send you sample for free.
3. How much is the freight charge would be?
The freight cost depends on the weight and packing size and your area.
4. When can i expect to get your sample?
The sample will be ready for delivery in 1-2 days and arrives in about 4-5 days.
5. Can you make as per to my requirements?
Yes,all the products are customized.
6. How can you guarantee your quality?
Quality is our culture. Certificates do not guarantee but samples do!
7. List some companies you have been working with.
Sinbo, Toshiba, Media, Glanz, Orbis, etc.
8. How can i contact you to know more?
Atte:Shirley Mao
Skype: Shirley_heating element
Tel:+86 0769 82168763
