Home > Products > Finned Element > 6KW Tubular Heater With Radiator Fin

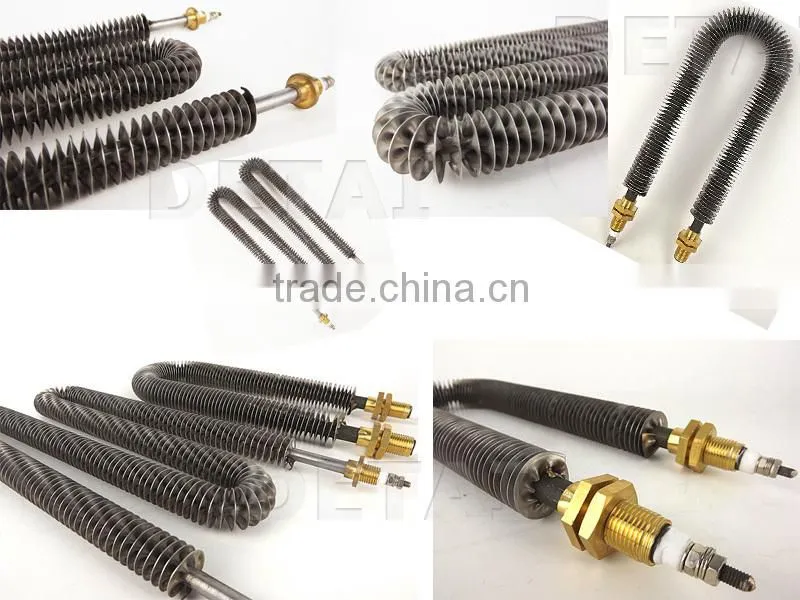

6KW Tubular Heater With Radiator Fin
- 10 Piece / Pieces per Month
- Shenzhen/Hongkong
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | DETAI | Model Number: | WT-0211 |
Type: | Other, Fin Tube, tubular heater with radiator fin | Application: | Heater Parts | Certification: | CE |
Product Description
Specifications
tubular heater with radiator fin1.ISO,CE
2:Stainless steel304,321316
3.Competitive factory price
4.For oven,air conditioer
6KW Tubular Heater With Radiator Fin
Specifications of finned heating element:
Material: | Incoloy800,Incoloy840,SUS304,SUS316,SUS321 |
Radiator fin: | stainless iron or stainless steel or carbon steel |
Diameter: | 8mm - 25mm |
Heating wire: | Cr20Ni80 |
Pressure: | > 1.5k/5s |
Insulation: | > 50mΩ |
Linner error: | ≤ 10mm |
Diameter error: | ≤ 0.05mm |
Length error: | ≤ 2mm |
High-temperature: | High-temperature Oxidation Magnesium powder are used |
Finned heating element's advantages:
1. Can be used in a multitude of industrial environments.
2. Used for forced convection heating, air or gas heating systems.
3. Standard as well as customized models
4. Various terminal options are available
5. Various shapes and sizes are available
6. Durable and has longe lifespan
Features:
1, Mechanically-bonded continuous fin assures excellent heat transfer and helps prevent fin vibration at high air velocities.
2, Several standard formations and mounting bushings available.
3,Standard fin is high temperature painted steel with steel sheath.
4,Optional stainless steel fin with stainless steel or incoloy sheath for corrosion resistance.
5,120v, 208v, 240v, 480v available.
6,Maximum Sheath Temperature 750°F (400°C) – Steel 900°F(480°C) - ST.ST./INCOLOY
7,Various shape: straight type,U type, W type,Roude type and so on
We can develop as per your request, pls advise your specifications:
1. Diameter, material
2. Wattage and voltage
3. Type of terminal
4. Drawing of special type configuration
The tubular air heater with fin is designed for use in natural and forced convection space heating, our range of finned air heaters are suitable for increased heat transfer surface area and where higher wattage is required. Featuring rugged construction, these finned heaters can be used in a multitude of industrial environments. Finned tubular heaters are used for forced convection heating, air or gas heating systems. Finned tubular heaters/heating elements are customized to meet your specific application needs.
6KW Tubular Heater With Radiator Fin
