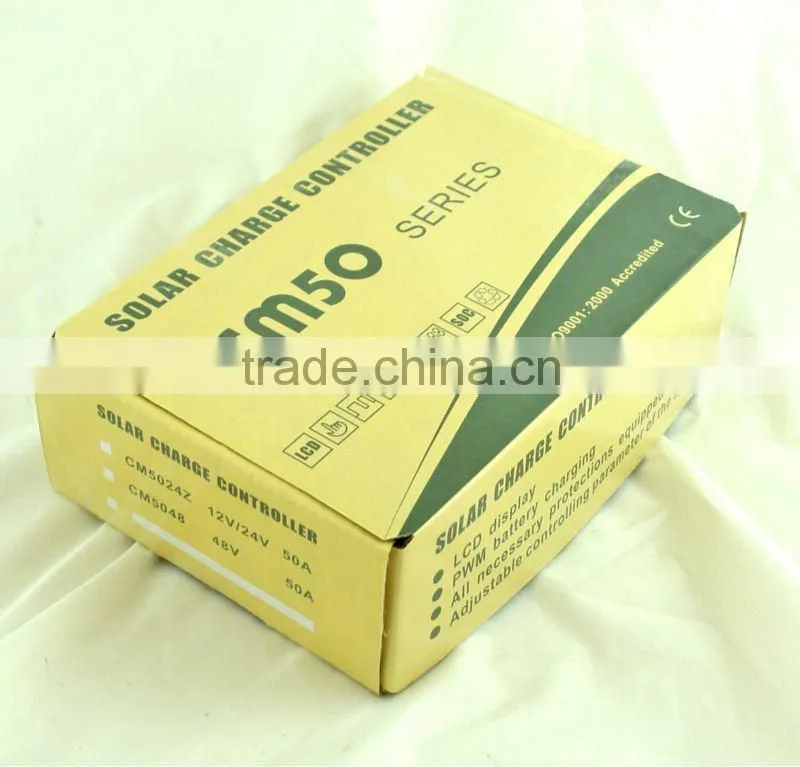

Help CenterCM 50 40A 50A 12V /24V 48V Solar Charge Controller With Multi-functional Protection
Related Products
-
10A MPPT Solar Controller for 12V/24V Solar Home System With Temperature Compensation FunctionUS$ 28.3 - 36MOQ: 2 Pieces -
CM30 LCD Display 20A 30A 12V 24V 48V PWM Charge Controller /solar Regulator Quality ChoiceUS$ 35 - 65MOQ: 10 Sets
-
Cm6048 60amp 48volt Big LCD Display Solar Charge ControllerUS$ 85.6 - 97MOQ: 5 Pieces
-
CM30 20A 30A 12V 24V 48V PWM Charge Solar Charger ControllerUS$ 35 - 44MOQ: 10 Sets
-
60A MPPT Solar Charge Controller With LCD Display for 2000W Solar Power SystemUS$ 168 - 226MOQ: 2 Pieces
Specifications
1,multi-functional protection2,LCD display
3,intelligent PWM charge mode
4, low voltage controller for home use
CM series controller is a kind of intelligent, multi-purpose solar charge and discharge controller. The family use the fixed LCD display, with a very friendly interface; various control parameters can be flexibly set, fully meet your various application requirements. CM series controller has following features:
Image of LCD graphic symbol
Simple button operation
Automatic Identification System Voltage level
Intelligent PWM charge mode
Automatic Temperature Compensation
Adjustable charge-discharge control parameters
Settable Operating mode of Load
Overload, Short Circuit Protection
Remote monitoring and control function (custom)
Battery reverse-discharge protection
Battery Low Voltage Disconnection (LVD)
Battery reverse connection protection
Accumulated function of charge and discharge Ampere hours
Data Model | CM5024Z | CM5048Z | Data model | CM5204Z | CM5048Z |
Rated current | 50A | Installation cable area | >3 AWG(<25square centimetre) | ||
Rated voltage | 12V/24V | 48V | Operating temperature | -20~50°C | |
Maximum voltage of solar panel | 50V | 100V | Storage temperature | -30~70°C | |
Float voltage | 13.7V/27.4V | 54.8V | Humidity requirement | <90%,no condensation | |
Low Voltage Disconnection | 10.7V/21.4V | 42.8V | size | 130mm*188mm*62mm | |
Low voltage Recollection | 12.6V/25.2V | 50.4V | Mounting hole spacing | 90mm*178mm-Φ5 | |
No load loss | <30mA | weight | 590g | ||
Loop voltage | <200mA |
|
|
| |
Charging mode | PWM mode |
|
|
| |
Temperature compensation | -4Mv/Cell/°C |
|
|
| |
notes | Model suffix "Z" represent automatic identify system voltage level, "T" represent controller with remote monitoring. | ||||
