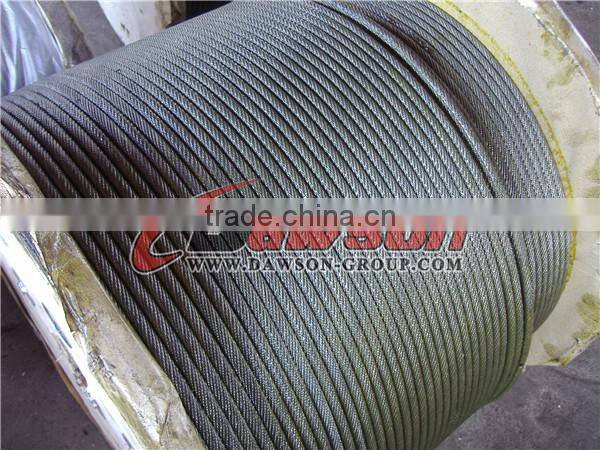

6x19,6x31 Steel Wire Rope

Steel Wire Ropes

Material

Steel

Sizes

8mm-40mm

Surface Finish

Galvanized and Ungalvanized

Core

IWRC, FC and WSC

Type

DIN,GB,BS,JIS,ASTM,AISI

Origin

China

OEM

Acceptable

Delivery Time

20days

Packaging

wooden reel , coils, plastic spool, bag and so on

Nominal Diameter

Approximate Weight

Nominal Tensile Strength of Rope(MPa)

1470


1570


1670


1770


1870


1960


d


Allowed
Tolerance

Minimum Breaking Load of Rope


mm

%

kg/100m

kN

10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44

+7

0








46.00
66.20
90.20
118.00
149.00
184.00
223.00
265.00
311.00
361.00
414.00
471.00
532.00
596.00
664.00
736.00
811.00
891.00

52.90
76.20
104.00
135.00
171.00
212.00
256.00
305.00
358.00
415.00
476.00
542.00
672.00
686.00
764.00
847.00
934.00
1020.00

56.50
81.40
111.00
145.00
183.00
226.00
274.00
326.00
382.00
443.00
509.00
579.00
653.00
732.00
816.00
904.00
997.00
1090.00

60.10
86.60
118.00
154.00
195.00
240.00
291.00
346.00
406.00
477.00
541.00
616.00
695.00
779.00
868.00
96200
1060.00
1160.00

63.70
91.80
125.00
163.00
206.00
255.00
308.00
367.00
431.00
500.00
573.00
652.00
737.00
826.00
920.00
1020.00
1120.00
1230.00

67.30
96.90
132.00
172.00
218.00
269.00
326.00
388.00
455.00
528.00
606.00
689.00
778.00
872.00
972.00
1080.00
1190.00
1300.00

70.60
102.00
138.00
181.00
229.00
282.00
342.00
406.00
477.00
553.00
635.00
723.00
816.00
914.00
1020.00
1130.00
1240.00
1370.00

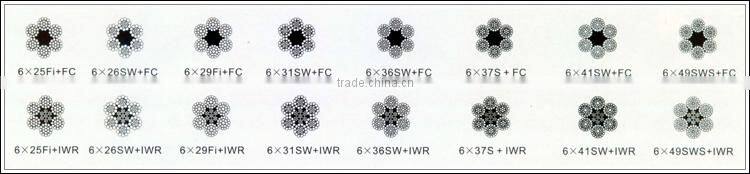

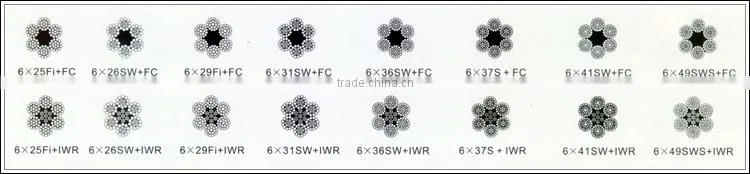

Construction

application

6×7

6×9W

Cable car, belt conveyer, cable way drawing and slope well winching

6×12

6×15

Tugboat, goods net, haulage, binding

6×19

Lifting machine, fishery, heat-moving machine and general machine

6×24

6×24S

6×24W

tugboat, fishery, cargo net, floating woods, binding, loading

6×37

Crane, hoist, loading, refloatation, fishery, vertical well balance

6×25Fi

6×29Fi

6×31SW

6×36SW

Lifting, hoisting and dragging.

The rope with steel core may be used under the shock load, heated and squeezed condition.

6×7+NF

      6×7+IWS

      6×19+NF

     6×19+IWS

For important machinery and instrument

     6×19S+FC

For elevator
