1.5kw solar pumping inverter
Solar Pro
solar powered water pump is a pump running on electricity generated by photovoltaic panels or the thermal energy available from collected sunlight as opposed to grid electricity or diesel run water pumps.The operation of solar powered pumps is more economical mainly due to the lower operation and maintenance costs and has less environmental impact than pumps powered by an internal combustion engine (ICE).
SK SERIES SOLAR WATER PUMP:
Diamond quality SK Series: upgraded version 3SK / 4SK solar photovoltaic three-phase direct drive pumps and Sediment Control
2014 3SK / 4SK solar photovoltaic three-phase direct drive pump sand prevention:
PV pump parameters:
Input voltage: 180V
MPPT voltage: 160-200V
Photovoltaic pump power range: 370W-1500W
Flow rate: 2-10 tons / hour
Head: 15-120 m

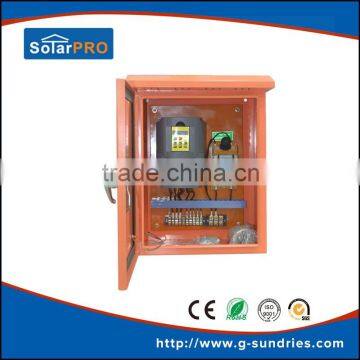

Solar Pumping Inverter details:
1.5kw solar pumping inverter
Solar Water Pump System
Models of SK Series solar water pump:
SK Series 2T/H specification
| Model | Pump Power | MPPT Voltage | Open-Circuit Voltage | Rated Head | Max. Head | Rated Flow | Water Inlet | Water Outlet | Protection Level |
| W | V | V | m | m | T/H | mm | INCH | ||
| 4SK2/11-0.55 | 550 | 160V-180V | 230V | 65 | 77 | 2 | 100 | 1.25/1.5 | IP68 |
| 4SK2/14-0.75 | 750 | 160V-180V | 230V | 83 | 98 | 2 | 100 | 1.25/1.5 | IP68 |
| 4SK2/20-1.1 | 1100 | 160V-180V | 230V | 118 | 140 | 2 | 100 | 1.25/1.5 | IP68 |
| 4SK2/26-1.5 | 1500 | 160V-180V | 230V | 152 | 182 | 2 | 100 | 1.25/1.5 | IP68 |
SK Series 4T/H specification
| Model | Pump Power | MPPT Voltage | Open-Circuit Voltage | Max. Head | Rated Head | Rated Flow | Water Inlet | Water Outlet | Protection Level |
| W | V | V | m | m | T/H | mm | INCH | ||
| 4SK4/8-0.55 | 550 | 160V-180V | 230V | 40 | 58 | 4 | 100 | 1.5/2 | IP68 |
| 4SK4/10-0.75 | 750 | 160V-180V | 230V | 50 | 72 | 4 | 100 | 1.5/2 | IP68 |
| 4SK4/14-1.1 | 1100 | 160V-180V | 230V | 70 | 101 | 4 | 100 | 1.5/2 | IP68 |
| 4SK4/18-1.5 | 1500 | 160V-180V | 230V | 90 | 130 | 4 | 100 | 1.5/2 | IP68 |
Sk Series Solar Water Pump With high pressure detection protection, under-voltage protection, blocking protection, over-current protection, water protection, water tower water full automatic shutdown function, realize the unattended, intelligent control.smooth operation, high efficiency, long life,industrial pumps.unique sediment control design.low noise, low power consumption, but under the condition of low voltage and low temperature start, small power and irrigation with photovoltaic pump life.Maximum power point Tracking (Maximum PowerPoint Tracking). three-phase direct drive frequency energy MPPT tracking solar photovoltaic pumps, used in the harsh conditions of high water and a big lift flow irrigation.
Installation
1.5kw solar pumping inverter
Installation & Performance Show
1.5kw solar pumping inverter
warranty for the solar pump is 1year.
The SK series Solar Water pump and work continually all day long without stop as well as there is Sunhine.
The life time of the water pump is more than 5 years.
We are sure to offer the world-wide customers with good After-Sales Service.
Please contact us if you have any question or any problem on our products, we are always here at your service!
All the problems will answered within 48 hours.
1. Q: Are you a factory or trading company?
A: We are a manufacturer and exporter for years.
Especially for solar water pump,solar water pump system,solar water pump agriculture.2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Guangzhou, China. You are warmly welcomed to visit us.
any also provide other solar products except solar charge controller regulator?
A: Yes, we also provide other solar products, like mono solar panel, poly solar panel, off grid solar inverter, solar Led light, battery, portable solar system, solar charger, solar junction box, DC fun and other accesories related to the solar power system.
4. Q: How can I get some samples?
A: Please connect me for samples, and my phone number: 86 13430251386
5. Q: Can the price be cheaper?
A: Of course, you will be offered a good discount for bulk order.
Our Service
T/T, L/C are the payment methods we accept at present.
Shipping
Material in stock can be produced (procedure 5-20days) right away after pre-payment confirmation. COSCO Mearsk MSCship to worldwide for safe shipping, don't worry about package damage or loss. It takes about 15-40 days to worldwide, Please note us your contact details include your phone number for easy contacting from shipping company officer.
