The Lastest Style Universal Radio Remote Controller

The Lastest Style Universal Radio Remote Controller thumbnail-1
The Lastest Style Universal Radio Remote Controller thumbnail-2
The Lastest Style Universal Radio Remote Controller photo-1
The Lastest Style Universal Radio Remote Controller photo-2
US$ 65 - 75 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
WERUN
Model Number:
WR21-E1B
Use:
Universal
Contact Supplier Request Quote Chat Now
Wenzhou Werun Electric Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name WERUN
Model Number WR21-E1B
Use Universal
Place of Origin Zhejiang, China



The lastest style Universal Radio remote controller

The lastest style Universal Radio remote controllerThe lastest style Universal Radio remote controller



 industrial joystick

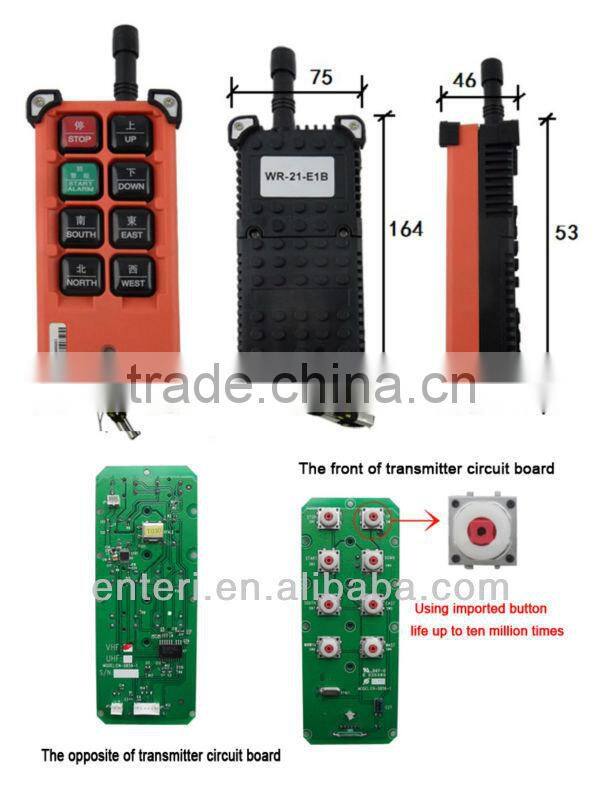

Transmitter

Model

WR21-E1B

Single-speed button

6

Double-speed button

0

Emergency button

NO

Shell material

ABS enhanced plastic

Battery

2pcs AA battery

Battery life

>100 hours

Frequency

400-460MHz

Power

<10mW

Modulation system

FM

Control distance

100m in ordinary conditions

IP rating

IP65

Size

16.4*7.5*4.6cm

Weight

around 320g





The lastest style Universal Radio remote controller

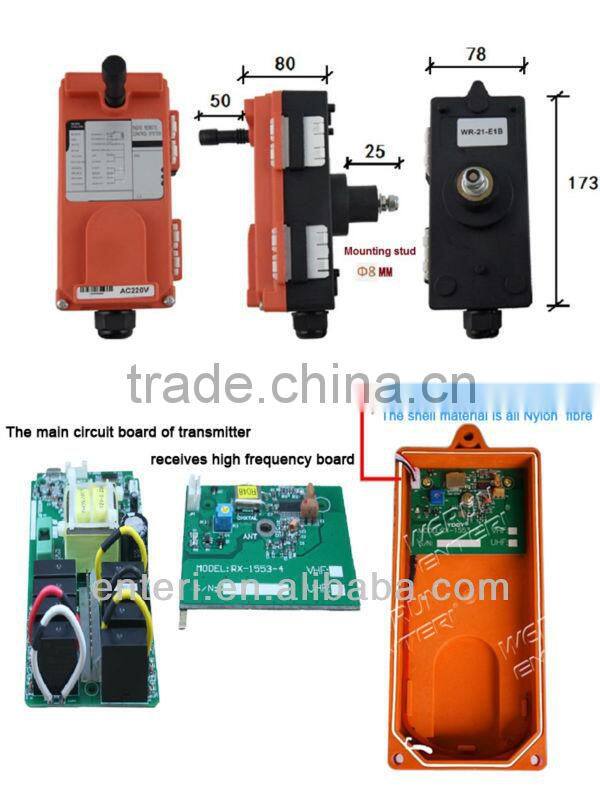

Receiver

Model

WR21-E1B

Working voltage

DC12/24V; AC85-400V

Connection mode

pin insert terminal block

Relay capacity

10A 250V

Responding time

<100ms

Ambient temperature

-20-70 degree

IP rating

IP65

Antenna

External

Size

18.5*8.5*8.5cm

Weight

550g

 The lastest style Universal Radio remote controller

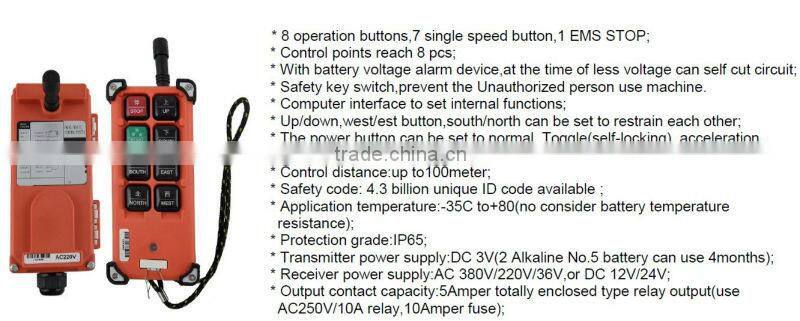

Standard Configuration:



* It suitable for single hook single speed electric hoist type crane and the application of under 8 contacts

* industrial remote control.

* One Transmitter 1pcs(with straps);

* One Receiver;

* One Receiver with 1meter cable ;

* Operation and Maintenance manual;



>> Wiring diagram

The lastest style Universal Radio remote controller

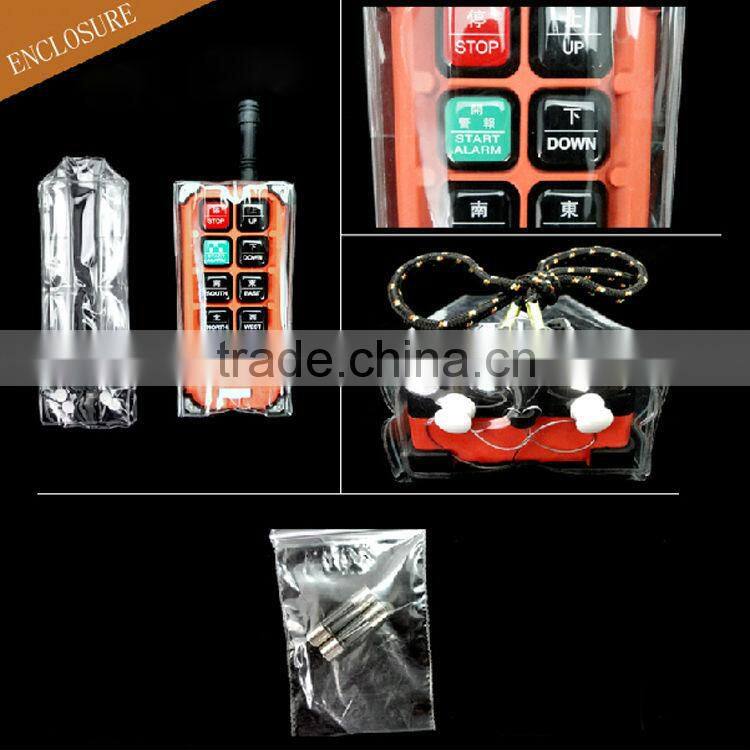

Package include:



Transmitter x1 (with strap)




Receiver x1 (receiver comes with 1 m connection cable)




Operation and maintenance manual x1

The lastest style Universal Radio remote controllerThe lastest style Universal Radio remote controllerThe lastest style Universal Radio remote controllerThe lastest style Universal Radio remote controller

The lastest style Universal Radio remote controllerThe lastest style Universal Radio remote controller

The lastest style Universal Radio remote controllerThe lastest style Universal Radio remote controllerThe lastest style Universal Radio remote controllerThe lastest style Universal Radio remote controller
