Specifications
crane parts1.radio remote controller for cranes, hoists, lifting mobiles
2.single speed
3.CE Rohs approved
Hot sell new crane remote control
crane parts
crane parts
Transmitter | |
Model |
WR21-E1B |
Single-speed button |
6 |
Double-speed button |
0 |
Emergency button |
NO |
Shell material |
ABS enhanced plastic |
Battery |
2pcs AA battery |
Battery life |
>100 hours |
Frequency |
400-460MHz |
Power |
<10mW |
Modulation system |
FM |
Control distance |
100m in ordinary conditions |
IP rating |
IP65 |
Size |
16.4*7.5*4.6cm |
Weight |
around 320g |
crane parts
Receiver | |
Model |
WR21-E1B |
Working voltage |
DC12/24V; AC85-400V |
Connection mode |
pin insert terminal block |
Relay capacity |
10A 250V |
Responding time |
<100ms |
Ambient temperature |
-20-70 degree |
IP rating |
IP65 |
Antenna |
External |
Size |
18.5*8.5*8.5cm |
Weight |
550g |
crane parts
crane parts
Standard Configuration:
* It suitable for single hook single speed electric hoist type crane and the application of under 8 contacts
* industrial remote control.
* One Transmitter 1pcs(with straps);
* One Receiver;
* One Receiver with 1meter cable ;
* Operation and Maintenance manual;
>> Wiring diagram
--------------------------------------------------------------------------------------------
crane parts

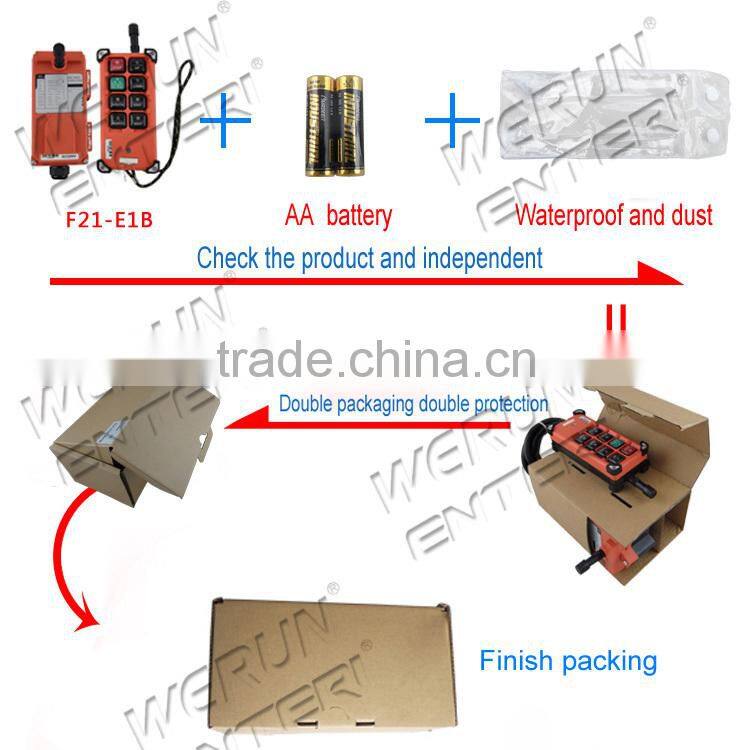

Package include:
Transmitter x1 (with strap)
Receiver x1 (receiver comes with 1 m connection cable)
Operation and maintenance manual x1
crane parts
crane parts crane parts
Technical Parameters:
F21-E1BInstruction:
crane parts
1. Depress the TX Emergency Stop or remove the magnetic key (for
F21-E1B without a Mushroom style stop button that stays
depressed, please hold down the STOP pushbutton)
2. Press UP pushbutton and hold it.
3. Start the system as usual.
crane parts

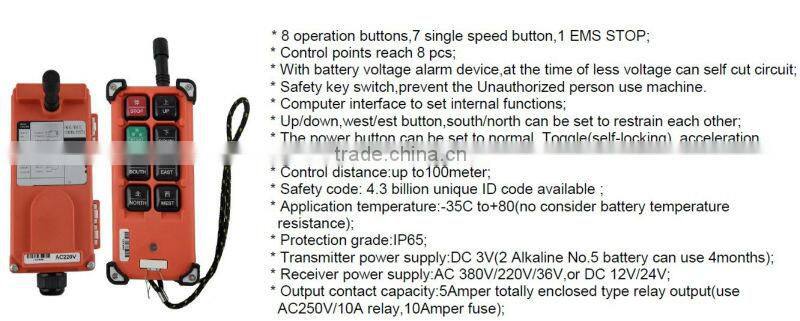

Design features:
1 |
• 2~6 commands (Pocket size transmitter : F21-2S/D) |
2 |
• Low cost for electronic chain hoist/monorail |
3 |
• Low power consumption transmitter. 2 AA batteries last up to 4 months |
4 |
• Extra shock resistant relay specially for mobile devices .(DC model only) |
5 |
• Over 4.3 billions unique ID code available. |
6 |
• Temperature range -35°C ~ +85°C |
7 |
• Enclosure protection class IP 65 |
8 |
• Microsoft Windows based software for easy customize configuration |
9 |
• Structure : Glass-Fiber |
Application:
The ranges of applications of our industrial radio remote control system
1. overhead bridge cranes,
2. gantry crane
3. beam launcher
4. monorail hoists,
5. motorized jib cranes o
6. Other pieces of industrial equipment.
