1000w 3000W solar power inverter with charger

FOB Price

USD $27 - $600 / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Guangzhou
Payment Terms:T/T D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	solarpro	Model Number:	SPIN-3000
Specification:	Normal	Application:	Home	Output Voltage (V):	110/120/220/230V
Load Power (W):	100-3000w	Solar Power (W):	2880W	Work Time (h):	12-24

Product Description

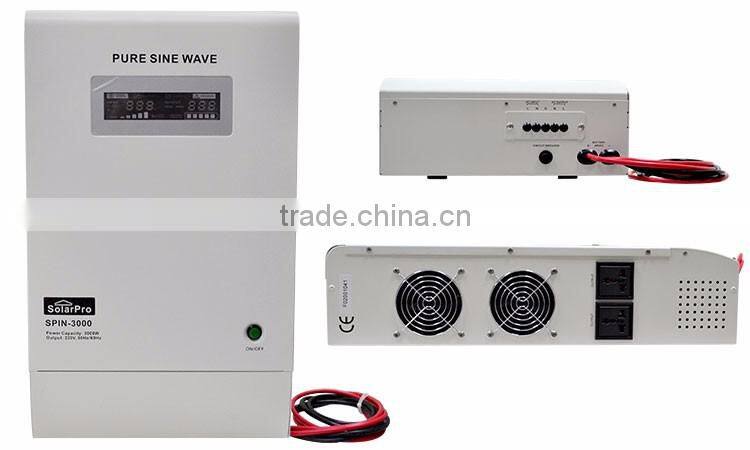

1000w 3000W solar power inverter with charger

SPCN3000 Solar Inverter

Product Description

This item is a home use Solar Generator of AC output. Be able to provide power for various monrmal power AC output machines, TV, Fan,air-condition, refrigerator. wash machine, water heater,and other digital products. The product functions and features are as follows:

1.Solar or AC Priority Optional

2.AC 220V output socket x2pc;

3.AC Charge current adjust,10A or 15A Optional

4. Comprehensive Under-voltage protection, anti-anti-charge, overcharge, over-current protection

5.External battery and solar photovoltaic panels to meet customers’ demand for electricity usage;

6.The temperature difference between the cooling fan,makes the machine work radiating more timely, improve the equipment’s life.

7.After the machine has an output over-current protection,delay output automatic reply.

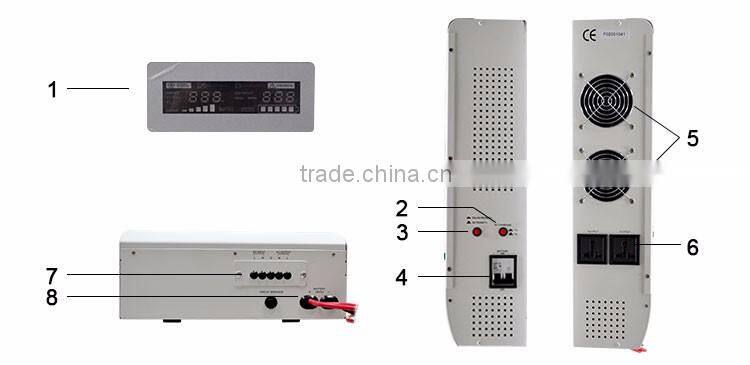

Plate Explanation:

1.LCD Display 2. AC charge current adjust buttons

---Status indicator 3. Solar or AC Priority adjust buttons

---Charging indicator 4. Circuit Beraker protection

---Fault indicator 5. Fan for cooling

---Function buttons

6. AC output socket

7. AC input & AC output

8.Battery input

Packing Overview:

1000w 3000W solar power inverter with charger

Specifications

Technical Data

1000w 3000W solar power inverter with charger

Solar Intergrated Off-Grid Inverter
Model		500va	800va	1000va	1500va	2000va	2500va	3000va	5000va
Power Capacity		300w	500w	700w	1050w	1400w	1800w	2100w	3500w
Battery Voltage		12vdc	12vdc	12vdc	24vdc	24vdc	24vdc	48vdc	48vdc
Working mode		PV(Photovoltaic priority)/AC (AC priority) Optional
Display	Panel indicator light	LED Graphic Screen LED lights
Mains status (Optional)	Input volt range	140Vac-275Vac
	Input Frequency range	45-65HZ(Automatically transfer to inverter power when over frequency
	Oput volt range	190Vac-245Vac
	Input PF.(AC/DC)	98%
	Efficiency	Mains mode≥96%
	Charge current	10A/15A
	Mains overload	warning until decrease load
	Short cricuit	yes
Inverter output	Inverter output volt	220v±3%
	Output frequency	50Hz/60Hz±0.3Hz frequency adaptive
	Output power factor	≥0.8
	Wave from distortion	linear load≤3%
	PV-AC transfer	4Ms typical value Max.6Ms
	Efficiency	Inverter mode≥80%
	Inverter overload	110%-130% shutdown at 30s,130%-150% shutdown at 3s
	Short cricuit	System automatically shut down
Alarm	Mains abnormal	1 time/1S,silence auto after 5S
	Low battery	1 time/1S and flash battery last grid
	Overload	1 time/1S and display"overload" grid
Communication interface		RS232(optional)
Others	Output sockets	Universal sockets/customized
	Surge protection	Optional
	Ambient temperature	0℃~40℃
	Ambient humidity	10%~90%(Non Condensed)
	Noise	≤50dB

Product Show:

Warranty

2 Year Warranty of the Solar inverter

The life time of the off grid inverter is over 10 years,

Strong resistance of the load

After-Sales Service

We are sure to offer the world-wide customers with good After-Sales Service.

Please contact us if you have any question or any problem on our products, we are always here at your service!

All the problems will answered within 48 hours.

FAQ

1. Q: Are you a factory or trading company?

A: We are a manufacturer and exporter for years.

Especially for solar inverter,Price off grid solar system,off grid solar inverter for home use .

2. Q: Where is your factory located? How can I visit there?

A: Our factory is located in Guangzhou, China. You are warmly welcomed to visit us.if u in Guangzhou,take the metro line 2 to GZ South Railway Station,then we will pick up from there.

3. Q: Does your company also provide other solar products except solar charge controller regulator?

A: Yes, we also provide other solar products, like mono solar panel, poly solar panel, off grid solar inverter, solar Led light, battery, portable solar system, solar charger, solar junction box, DC fun and other accesories related to the solar power system.

4. Q: Can the price be cheaper?

A: Of course, you will be offered a good discount for bulk order.

5. How can I get a sample?

A: Please call us or send email for asking the samples. or place the order on alibaba,we will check the freight cost and confrim the order ,then arrange the delivery for u

Ben Lin : Mobile Number: 86-13697413612

Our Service

Payment Terms : T/T and Western Union, L/C are the payment methods we accept at present.

1000w 3000W solar power inverter with charger

Shipping:

Material in stock can be produced (procedure 5-20days) right away after pre-payment confirmation. COSCO Mearsk MSCship to worldwide for safe shipping, don't worry about package damage or loss. It takes about 15-40 days to worldwide, Please note us your contact details include your phone number

for easy contacting from shipping company officer.
