Supply pe cast film extruder
- 15 Set / Sets per Month
- Ningbo
- T/T Credit Card PayPal
Product Details
Condition: | New | Application: | Film | Plastic Processed: | PE |
Screw Design: | Other, Three screw | Automatic Grade: | automatic | Place of Origin: | Zhejiang, China |
Brand Name: | RuiGao | Model Number: | SLH-1000 | Voltage: | 380v/220v |
Power(W): | 92kw | Dimension(L*W*H): | 7500*4500*3200 | Weight: | 4.5t |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
cast film extruderraw material LDPE/LLDPE
for packing food, hardware ect
Economic,stable,safe
Easy operate
1. Machine Introduction
USE:
This machine uses LDPE and LLDPE to produce casting stretch film, which widely used in packing area for
building material, auto parts, hardware parts etc.
FEATURE:
RG-50 stretch film co-extruder with following features: low noise, stable running, especially winding part is
controlled by PLC program. The machine is equipped with extruder, traction part, leveling part, edge trimming,
winding and finished roll automatic changing etc.
2. Machine Advantages
1, We use stronger steel plate for machine body, which makes machine more stable
2, Screw and barrel is nitrigened by 72 hours. 38 chromium materials, it is very hard.
3, Hard surface gearbox, the life can be more than 5 years.
4, Motor with CE standard has more than10 years life.
5, Electric parts is CHINT, the best supplier in China.
6, The steel roller is mirror roller, which is very nice.
7, Our standard rewinder is semi-automatic, we can do automatic rewinder, no need to change rolls by hand.
3. Machine Parameters
Item/Model | 1250mmDouble-layer | 1250mmSingle-layer |
Screw diameter(mm) | 55*2 | 70 |
L/D ratio of screw (L/D) | 28:1 | 28:1 |
width of die head (mm) | 1250 | 1250 |
Width of finished products(mm) | 1000(500*2rollers) | 1000(500*2rollers) |
Thickness of finished products (mm) | 0.017-0.05 | 0.017-0.05 |
Structure of film layers | A/B | -- |
Max output (kg/h) | 60 | 60 |
Linear speed of machinery (m/min) | 50-100 | 50-100 |
Total power (KW) | 50 | 50 |
Overall dimensions (L*W*H)m | 7.5*4.5*3.2 | 7.5*4*3.2 |
Weight (T)(About) | 5.5 | 4.5 |

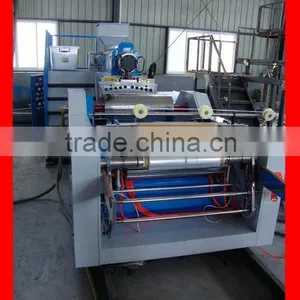

4. Machine Details
5. Machine Packing & Loading
6. Qustions & Answers

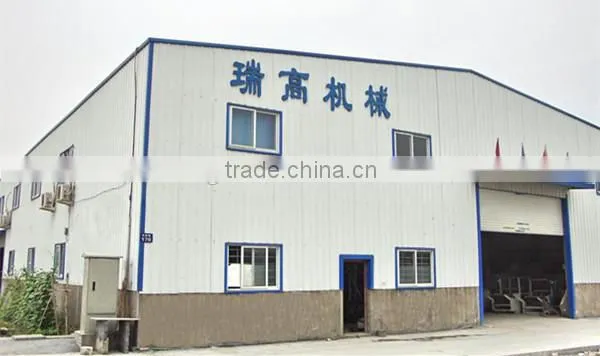

7. Factory Appearance
8. Global Customers
9. CE Certification
10. Contact Person
Contact Us
- Ruian Ruigao Machinery Factory
- Contact nameTIM DENG
- Phone86-135-87581245
- AddressDongxin Road, Shangwang Street, Ruian
