Home > Computer Products > Network Hardware & Parts > Router > Cisco Original Router 2951/K9

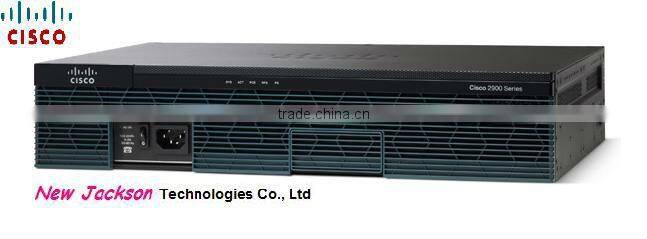

Cisco Original Router 2951/K9

Cisco Original Router 2951/K9 thumbnail-1
Cisco Original Router 2951/K9 photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Wired
Application:
Enterprise
Contact Supplier Request Quote Chat Now
Beijing New Jackson Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Wired
Application Enterprise
Function QoS, VPN
LAN Ports 4
WAN Ports 2
Brand Name CISCO
Model Number CISCO2921/K9
Place of Origin California, United States

Specifications

1.CISCO Professional distributor
2.Huge Stock with best price
3.Fast delivery with lowest ship cost
4.100% CISCO original





 Primary features include:





  • 3 integrated 10/100/1000 Ethernet ports with 1 port capable of RJ-45 or SFP connectivity
  • 2 service module slots
  • 4 Enhanced High-Speed WAN Interface Card slots
  • 3 onboard digital signal processor (DSP) slots
  • 1 internal service module slot for application services
  • Fully integrated power distribution to modules supporting 802.3af Power over Ethernet (PoE) and Cisco Enhanced PoE
  • Security
    • Onboard hardware acceleration for VPN encryption
    • Secure collaborative communications with Group Encrypted Transport VPN, Dynamic Multipoint VPN, or Enhanced Easy VPN
    • Integrated threat control using Cisco IOS Firewall, Cisco IOS Zone-Based Firewall, Cisco IOS IPS, and Cisco IOS Content Filtering
    • Identity management using authentication, authorization, and accounting (AAA), and public key infrastructure
  • Voice
    • High-density packet voice DSP module, optimized for voice and video support
    • Standards-certified VoiceXML browser services
    • Cisco Unified Border Element capabilities
    • Cisco Unity Express voicemail support.
    • Support for Cisco Communications Manager Express and Survivable Remote Site Telephony











Product Overview

 Cisco 2900 Series builds on the best-in-class offering of the existing Cisco 2800 Series Integrated Services Routers by offering four platforms

All Cisco 2900 Series Integrated Services Routers offer embedded hardware encryption acceleration, voice- and video-capable digital signal processor (DSP) slots, optional firewall, intrusion prevention, call processing, voicemail, and application services. In addition, the platforms support the industries widest range of wired and wireless connectivity options such as T1/E1, T3/E3, xDSL, coppe

r and fiber GE.



Cisco 2951

Services and Slot Density



Embedded Hardware-Based Cryptography and Acceleration (IPSec + SSL)

Yes

Cisco Unified SRST Sessions

250

Cisco Unified CCME Sessions

150

Total Onboard WAN 10/100/1000 Ports

3

RJ-45-Based Ports

3

SFP-Based Ports (use of SFP port disables the corresponding RJ-45 port)

1

Service Module Slots

2

Double-Wide Service Module Slots (use of a double-wide slot will occupy all single-wide service module slots in a 2900)

1

EHWIC Slots

4

Double-Wide EHWIC Slots (use of a double-wide EHWIC slot will consume two EHWIC slots)

2

ISM Slots

1

Onboard DSP (PVDM) Slots

3

Memory DDR2 ECC DRAM-Default

512 MB

Memory (DDR2 ECC DRAM)-Maximum

2 GB

Compact Flash (External)-Default

slot 0: 256 MB

slot 1: none

Compact Flash (External)-Maximum

slot 0: 4 GB

slot 1: 4 GB

External USB 2.0 Flash Memory Slots (Type A)

2

USB Console Port (Type B) (up to 115.2 kbps)

1

Serial Console Port

1

Serial Auxiliary Port

1

Power-Supply Options

AC, PoE, and DC

RPS Support (External)

Cisco RPS 2300

Power Specifications



AC Input Voltage

100 to 240 VAC auto ranging

AC Input Frequency

47 to 63 Hz

AC Input Current Range AC Power Supply (Maximum)

3.4 to 1.4A

AC Input Surge Current

<50A

Typical Power (No Modules) (Watts)

70

Maximum Power with AC Power Supply (Watts)

340

Maximum Power with PoE Power Supply (Platform Only) (Watts)

405

Maximum End-Point PoE Power Available from PoE Power Supply (Watts)

370

Maximum End-Point PoE Power Capacity with PoE Boost (Watts)

750

DC Input Voltage

24 to 60 Vdc, autoranging positive or negative

DC Input Current

(MAX) 12A (24V)

5A (60V)

Physical Specifications

Physical Specifications

Dimensions (H x W x D)

3.5 x 17.25 x 18.5 in. (88.9 x 438.2 x 469.9 mm)

Rack Height

2RU

Rack-Mount 19 in. (48.3 cm) EIA

Included

Rack-Mount 23 in. (58.4 cm) EIA

Optional

Wall-Mount (refer to installation guide for approved orientation)

No

Weight with AC Power Supply (No Modules)

29 lb (13.2 kg)

Weight with AC PoE Power Supply (No Modules)

30 lb (13.6 kg)

Typical Weight Fully Configured

34 lb (15.5 kg)

Airflow

Back and Side to Front

Optional Airflow Kit

N/A

Environmental Specifications

s

Operating Conditions



Temperature: 5,906 feet (1,800m) Maximum Altitude

32 to 104ºF (0 to 40ºC)

Temperature: 9,843 feet (3,000m ) Maximum Altitude

32 to 104ºF (0 to 40ºC)

Temperature: 13,123 feet (4,000m) Maximum Altitude

32 to 86ºF (0 to 30ºC)

Temperature: Short-Term (per NEBS) 5906 feet (1,800m) Maximum Altitude

23°F to 122°F (-5 to 50°C)

Altitude

13,000 ft (4,000m)

Relative Humidity

5 to 85%

Short-Term (per NEBS) Humidity

N/A

Acoustic: Sound Pressure (Typical/Maximum)

54.4/67.4 dBA

Acoustic: Sound Power (Typical/Maximum)

62.6/74.5 dBA

Non-Operating Conditions



Temperature

-40 to 158ºF (-40 to 70ºC)

Relative Humidity

5 to 95%

Altitude

15,000 ft (4,570m)

Regulatory Compliance



Safety

UL 60950-1

CAN/CSA C22.2 No. 60950-1

EN 60950-1

AS/NZS 60950-1

IEC 60950-1

EMC

47 CFR, Part 15

ICES-003 Class A

EN55022 Class A

CISPR22 Class A

AS/NZS 3548 Class A

VCCI V-3

CNS 13438

EN 300-386

EN 61000 (Immunity)

EN 55024, CISPR 24

EN50082-1

Telecom

TIA/EIA/IS-968

CS-03

ANSI T1.101

ITU-T G.823, G.824

IEEE 802.3

RTTE Directive





 Cisco 2900 Basic Ordering Information

CISCO2951/K9

Cisco 2951 with 3 onboard GE, 4 EHWIC slots, 3 DSP slots, 1 ISM slot, 256MB CF default , 512MB DRAM default, IP Base









                        Cisco original Router 2951/K9
