High Speed Roll Film Slitting & Rewinding Machine

High Speed Roll Film Slitting & Rewinding Machine photo-1
US$ 4,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Textiles, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles
Packaging Type:
Bags, Film, Foil
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Textiles, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles
Packaging Type Bags, Film, Foil
Packaging Material Plastic, Paper
Automatic Grade Automatic
Driven Type Electric
Voltage 220v
Power 6kw
Place of Origin Zhejiang, China
Brand Name RG
Model Number GFQ-1100B
Weight 2T
Dimension(L*W*H) 2.4*1.5*1.7
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

The high speed slitting & rewinding machine is easy to cut
high quality and cheap
steady
high speed and cut smooth

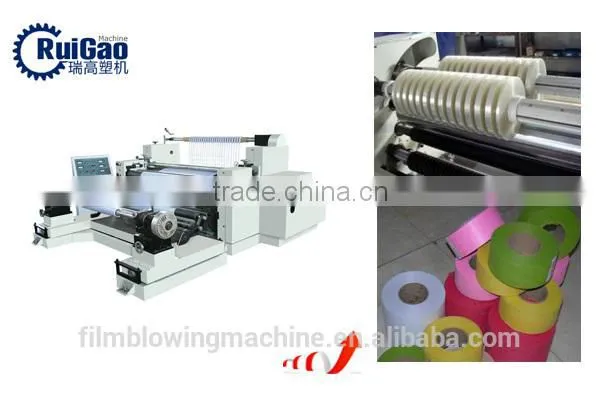

High Speed roll film Slitting & Rewinding Machine



                   Plastic Film Slitting Machine

High Speed roll film Slitting & Rewinding Machine

1. Machine Introduction

This machine is suitable for slitting and rewinding such various roll materials as BOPP, PET, CPP, CPE,

PVC, aluminum foil laminated with film and paper, etc. And can cut edge, separate and cut material according

to different requirements during production.



2. Machine Advantages

1. Main Motor equipped with inverter for speed regulation.
2. Separated General Control Cabinet, more flexible and even easier operation.
3. Automatic EPC for unwinding, photocell is suitable for tracking the edge and/or
the line of material.
4. Equipped with air shaft for unwinding material loading, magnetic powder brake
5. Air shaft for rewinding (frictional cam shaft available for option), Magnetic powder
clutch for rewinding tension control
6. Equipped with air trim discharge conveying system.
7. Automatic meter counting device.
8. Pressure roller for rewinding to make rewinding roll more uniform.
9. Disk knife available for option.



3. Machine Parameters



Model

GFQ-1100B

GFQ-1300B

GFQ-1600B

Max. unwinding width(mm)

1100



1300

1600

Max. unwinding diameter

800mm

800mm

800mm

Max. rewinding diameter

 650mm

 650mm

 650mm

Slitting speed

170m/min

170m/min

170m/min

Total power(kw)

4

5

7.5

Weight of machine:

2500kg



2800kg



 3000kg



Overall dimension(mm)



  2600*2800*1370



 2800*2800*1370



 3100*2800*1370

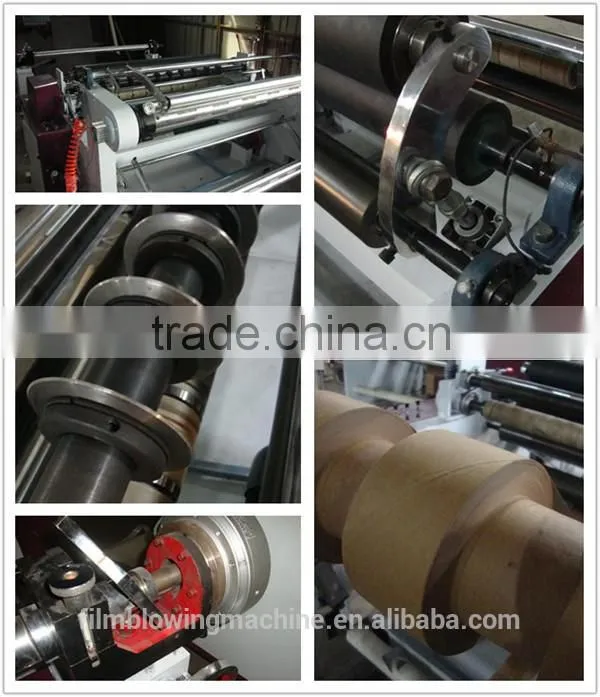

4. Machine Details

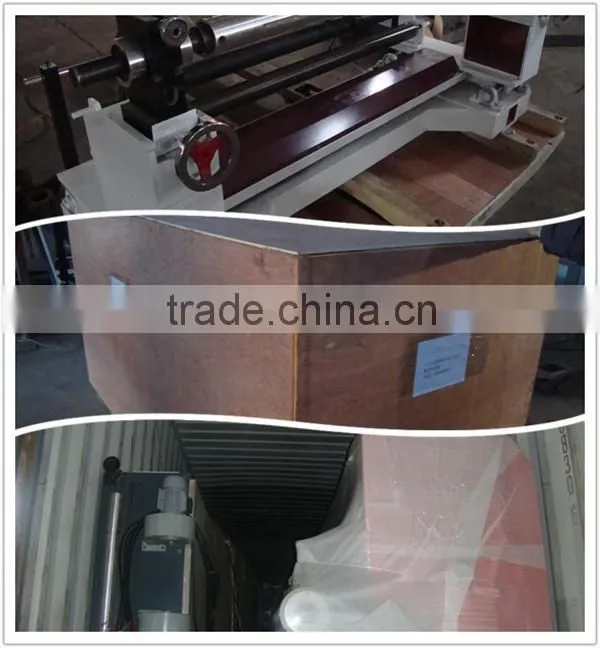

5. Machine Packing & LoadingHigh Speed roll film Slitting & Rewinding Machine



6. Qustions & Answers

High Speed roll film Slitting & Rewinding Machine



7. Factory Appearance

High Speed roll film Slitting & Rewinding Machine



8. Global Customers

High Speed roll film Slitting & Rewinding Machine



9. CE Certification  High Speed roll film Slitting & Rewinding Machine
