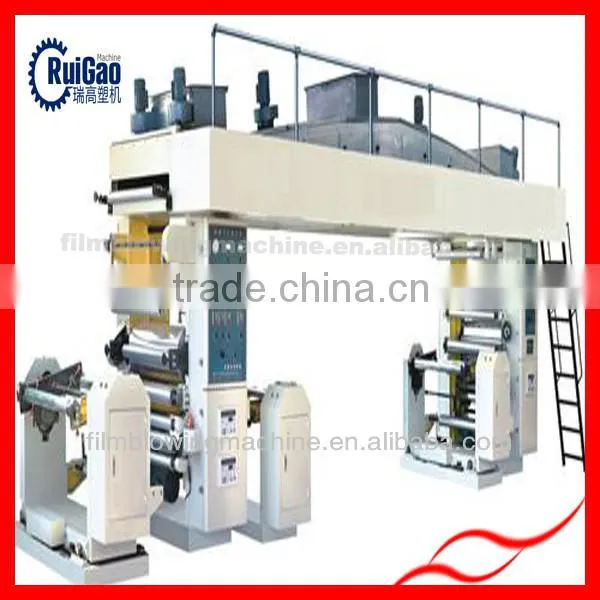

GF-B Dry-type Laminating Machine With High Quality

GF-B Dry-type Laminating Machine With High Quality photo-1
US$ 10,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Textiles, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles
Packaging Type:
Bags, Film, Foil
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Textiles, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles
Packaging Type Bags, Film, Foil
Packaging Material Plastic, Paper
Automatic Grade Automatic
Driven Type Electric
Voltage 380KW
Power 20KW, 37kw
Place of Origin Zhejiang, China
Brand Name RG
Model Number GF-600B
Dimension(L*W*H) 8.9*1.6*2.5
Weight 3T
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

This Laminating machine is suitable for laminating plastic-plastic,paper-plastic, paper-paper and aluminum foils and others.

GF-B Dry-type Laminating Machine with High Quality



GF-B Dry-type Laminating Machine with High Quality



1. Machine Introduction

This machine is suitable for laminating plastic-plastic, paper-plastic, paper-paper and aluminum foils

and other laminated materials in the packing industry.



2. Machine Advantages

1, We use stronger steel plate for machine body, which makes machine more stable.

2, Motor with CE standard, more than 10 years life

3, Long Oven for drying the glue.

4, EPC for unwinder, and automatic tension controlling system for unwinder.

5, Anilox roller is 180 DPI.



3. Machine Parameters



Type

GF-600B

GF-800B

GF-1000B

Max.Laminating Width

600mm

800mm

1000m

Max.Web Width

620mm

820mm

1020mm

Max.Laminating Speed

110m/min

110m/min

110m/min

Max.Mechanical Speed

120m/min

120m/min

120m/min

Max.Diameter oMaterial Roll

600mm

600mm

600mm

Internal Diameter of Roll Core

76mm

76mm

76mm

Length of Drying Channel

7500mm

7500mm

7500mm

Power for Drying Channel

23.4kw

31.2kw

39kw

Total Power

39.5kw

48.8kw

58.5kw

Weighto Machine

7000kg

8000kg

9000kg

Overall Dimension(mm)

9000×2100×3000

9000×2300×3000

9000×2500×3000

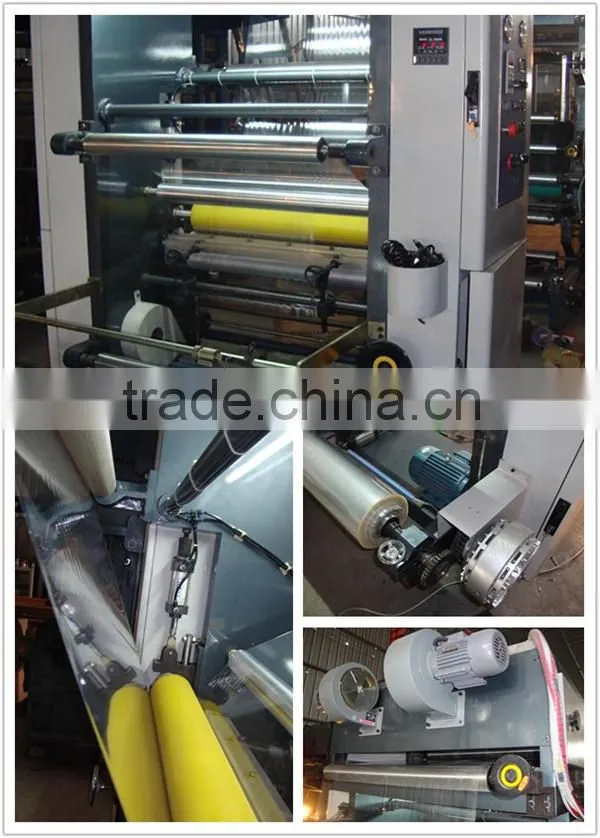

 4. Machine Details

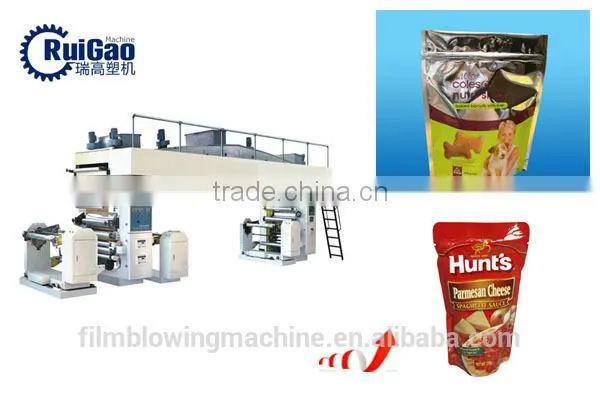

GF-B Dry-type Laminating Machine with High Quality

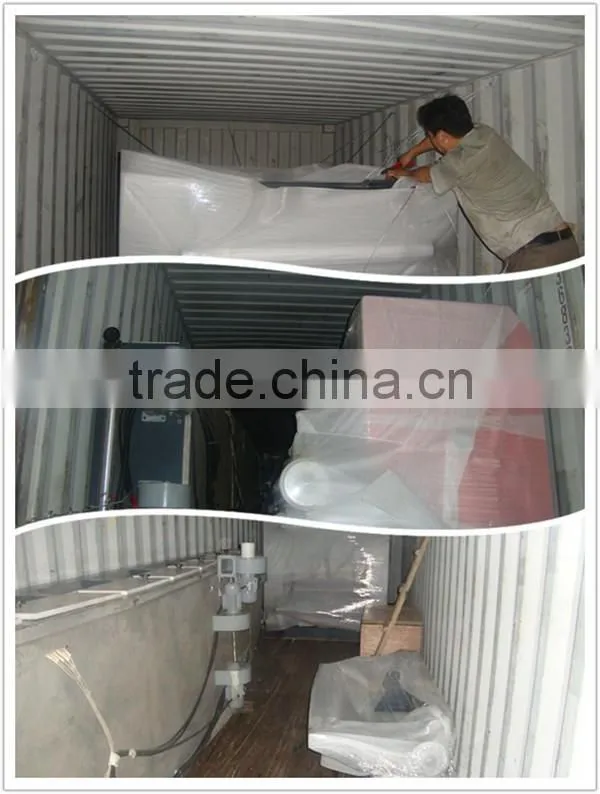

5. Machine Packing & LoadingGF-B Dry-type Laminating Machine with High Quality



6. Qustions & Answers

GF-B Dry-type Laminating Machine with High Quality



7. Factory Appearance

GF-B Dry-type Laminating Machine with High Quality



8. Global Customers

GF-B Dry-type Laminating Machine with High Quality



9. CE Certification  GF-B Dry-type Laminating Machine with High Quality



10. Contact Person

GF-B Dry-type Laminating Machine with High Quality
