Polarization Beam splitter glass

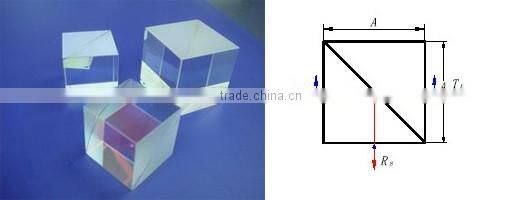

Polarization Beamsplitter Cubes are constructed by cementing two precision right angle prisms together with the appropriate interference coating on the hypotenuse surface. The P-polarization of the input beam is transmitted, and S-polarization of the input beam is reflected.
Polarization Beam splitter Cube specification:
Material | BK7 grade A optical glass |
Dimension Tolerance | ±0.1 mm |
Clear Aperture | >85% |
Surface Quality | 60-40 scratch and dig |
Beam Deviation | <3 arc minutes |
Extinction Ratio | > 100:1 |
Principal Transmittance | T p > 95% and Ts < 1% |
Principal Reflectance | R s > 99% and R p < 5% |
Protective Bevel | <0.25 mm x 45° |
Coating | Polarization beamsplitter coating: on hypotenuse AR coating: R < 0.25% on all input and output face |
The customized Optical beam splitter glass is welcomed.

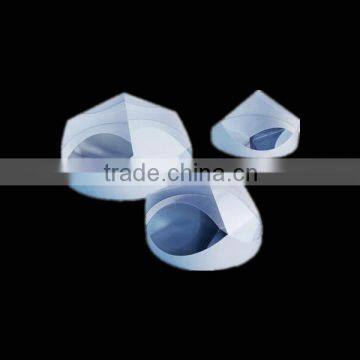

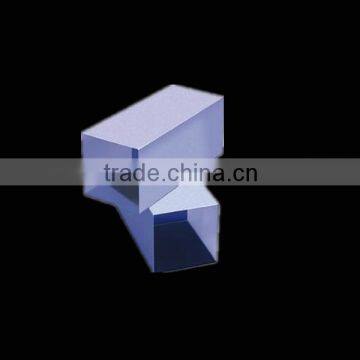

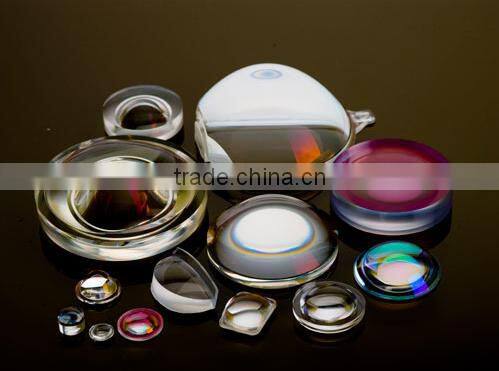

Other more optical production:
Tian Cheng Optics Co., Ltd. is located in Changchun city where is famous base of optics research and development in China, we dedicate to designing and manufacturing high quality precision optical components including Lenses, High Precision Prism, Filter, Window, Beamsplitter, Mirror, Waveplate, Polarizer, Polarization Beamsplitter, Micro optics, they are widely used in industrial application, medical industry, construction, telecommunications, military, environment monitoring, life sciences, public security, aerospace etc. We have built well cooperation with some companies from United Kingdom,Germany, Ireland, Sweden, Australia, Brazil, U.S.A. etc.
1> Package Detail: A. Standard carbon and envelop with plastic foam.
B. Safety green carton.
C. Customized.
2> Delivery Detail: Within 20 days.(Also depand on the quantity)
1> Q: Where is your factory located ? How can i visit there ?
A: Our factory is located in Chaoyang district Changchun city Jilin province China, about 3 hours bus ride from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us !
2> Q: What's the material of your products ?
A: The material is optical glass and plastic .
3> Q: If I place an order now, how long would it be before I got delivery ?
A: It would largely depend on the size of the order and the items you want .
4> Q: Can I customize production?
A: Yes, customized production is welcomed.
5> Q: How can I get some samples ?
A: We are honored to offer you samples .
