EOC Mixer With 2in-2out

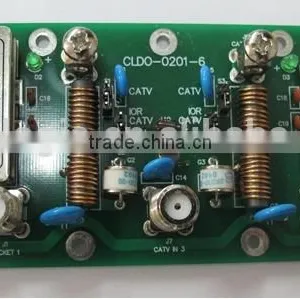

EOC Mixer With 2in-2out photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
CORELOGIC
Model Number:
CLDO-0201
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Beijing, China
Brand Name CORELOGIC
Model Number CLDO-0201

Product Description
CLDO-0201 is an EOC Mixer with 2in and 2out.

Application & Standards

Application : Ethernet Over Coaxial cable

Comply with :GY/T 137-1999

                        GY T106-1999

                        GY-T 235-2008

                  GB 13837-2003

                  IEEE 802.3-2000



Performance

Test item

Condition/Requirement

Impedance

75Ω
Power Pass    63VAC   10A
Mixer Band Pass   2-65MHz(DATA)&87-1000MHz(TV)
Insertion loss

≤1.5dB

Return loss

≥16.0dB

Out of Band Suppression

≥50.0dB

In-band Flatness

≤2.0dB



Operation Environment

Temperature:

Operating: -40°C to +70°C

Storage : -40°C to +70°C

Humidity: 0%-100% non-condensing



Circuit Diagram

EOC Mixer with 2in-2out

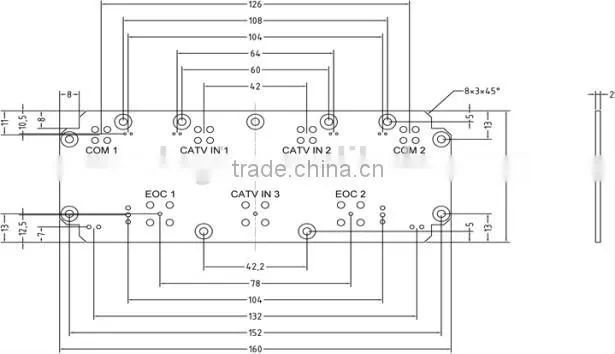

Outline Dimensions

EOC Mixer with 2in-2out

                                                                                                          Unit:mm

Production Line

EOC Mixer with 2in-2out

Machine and test equipment:

EOC Mixer with 2in-2out

Design concept

It does not have a magnificent appearance, but uses the simplest appearance and highest quality to guarantee user satisfactory.



Environmental Guarantee

Our company has a strictly IQC inspection standard, each batch of materials from supplier will strictly test and inspection report must approved by management level before production. Moreover, the suppliers also necessary has a valid environmental protection ROHS report and a certification for environmental protection responsibility.



After-sale service

Warranty: one year (If the damages to the products are not artificial or natural disaster, our company is responsible for maintenance and replacement within one year).



Other Service

We can produce products in your brand according to your request.



If you need more information about it, please send me inquiry, you can get our reply within one day.
