Brief introduction

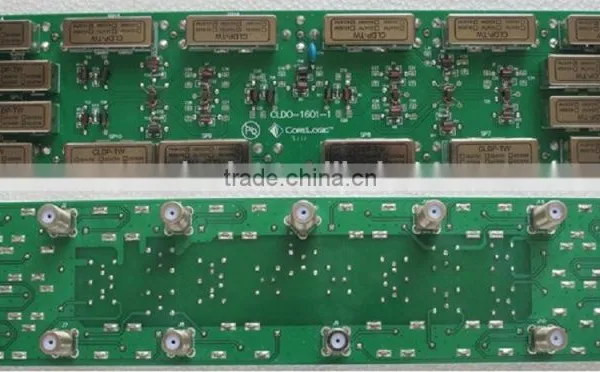

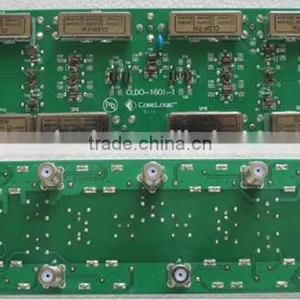

CLDO-1601-G is a 16ch EOC fiter/distributor board.
It includes 16pcs of CLDPX-65/87A EOC diplexer.
Application & Standards
Application : Ethernet Over Coaxial cable
Comply with :GY/T 137-1999
GY T106-1999
GY-T 235-2008
GB 13837-2003
IEEE 802.3-2000
Performance
| Test item | Condition/Requirement |
Impedance |
75Ω |
| LP Insertion loss | 5-65MHz≤1.0dB |
| HP Insertion loss | 87-860MHz ≤18.0dB |
| Return loss |
5-65MHz≥16.0dB 87-860MHz≥16.0dB |
| Isolation |
5-65MHz≥45.0dB 87-860MHz≥45.0dB |
In-band Flatness |
≤2.0dB |
Operation Environment
Temperature:
Operating: -40°C to +70°C
Storage : -40°C to +70°C
Humidity: 0%-100% non-condensing

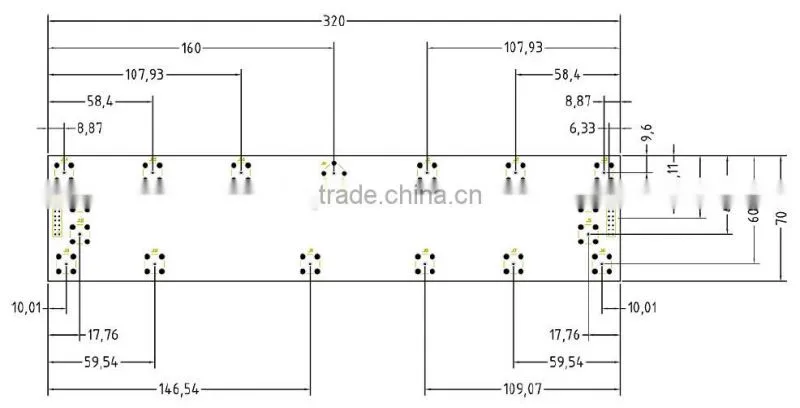

Outline Dimensions
Unit:mm
Production Line
Machine and test equipment:
Design concept
It does not have a magnificent appearance, but uses the simplest appearance and highest quality to guarantee user satisfactory.
Environmental Guarantee
Our company has a strictly IQC inspection standard, each batch of materials from supplier will strictly test and inspection report must approved by management level before production. Moreover, the suppliers also necessary has a valid environmental protection ROHS report and a certification for environmental protection responsibility.
After-sale service
Warranty: one year (If the damages to the products are not artificial or natural disaster, our company is responsible for maintenance and replacement within one year).
Other Service
We can produce products in your brand according to your request.
If you need more information about it, please send me inquiry, you can get our reply within one day.
