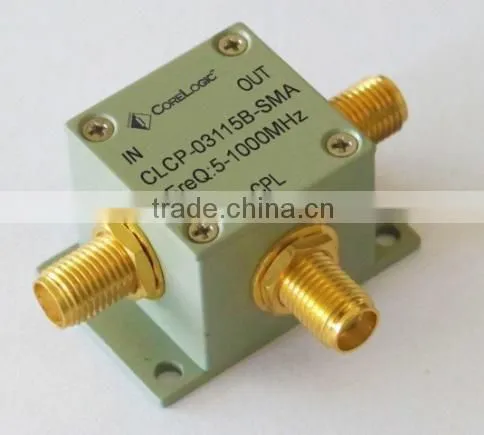

Directional couplers are used to supervise and control transmitter’s output power and output spectrum, they are also taken as a power meter together with detector or level indicator. CLCP-02XXXB-SMA serial products feature compact small size,light ,low loss of mainline transmission, excellent flantness in frequency response of coupling value, stable performance and high reliability etc.
Application
• HF/VHF
• instrumentation
• communication receivers &transmitters
• cellular
Specifications
| Items | Indicators | ||||
| Model Number | CLCP-02XXXB-SMA |
||||
| Frequency Range(MHz) | 0.3-300MHz | ||||
| Coupling Value(dB) | -10.0 | -11.5 | -15.0 | -20.0 | -30.0 |
Flatness In Band |
≤0.7 | ≤1.0 | ≤0.8 | ≤0.5 |
≤0.3 |
Insertion Loss(dB) |
≤1.0 | ≤1.0 | ≤0.8 | ≤0.5 |
≤0.3 |
VSWR |
≤1.30 | ||||
| Isolation(dB) | ≥28 |
||||
Three order Intermodulation |
≤130 dB | ||||
| Impedance | 50Ω | ||||
Connector Type |
SMA-Female | ||||
| Input Power | 3.0W |
||||
Operation Environment
Temperature:
Operating: -40°C to +70°C
Storage : -55°C to +95°C
Humidity: 0%-100% non-condensing

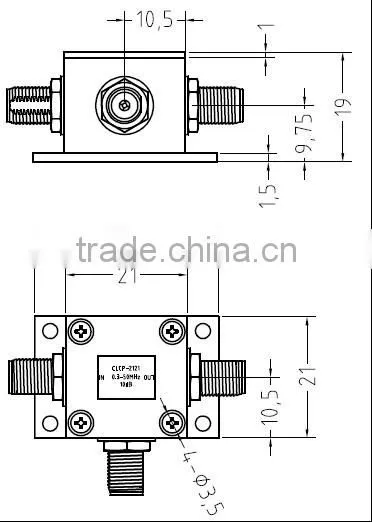

Outline Dimensions
Unit:mm
Naming Rule
Production Line
Machine and test equipment:
Design concept
It does not have a magnificent appearance, but uses the simplest appearance and highest quality to guarantee user satisfactory.
Environmental Guarantee
Our company has a strictly IQC inspection standard, each batch of materials from supplier will strictly test and inspection report must approved by management level before production. Moreover, the suppliers also necessary has a valid environmental protection ROHS report and a certification for environmental protection responsibility.
After-sale service
Warranty: one year (If the damages to the products are not artificial or natural disaster, our company is responsible for maintenance and replacement within one year).
Other Service
We can produce products in your brand according to your request.
If you need more information about it, please send me inquiry, you can get our reply within one day.
