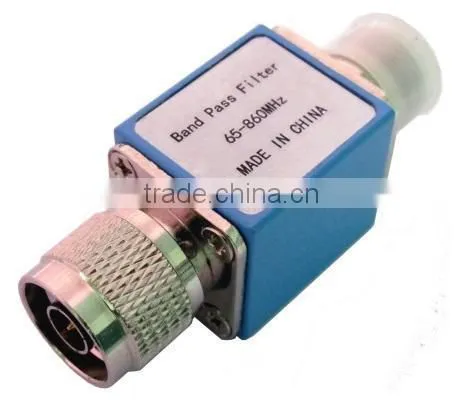

CATV Band-pass Filters

Name: CATV Band-pass Filters
Brand: CORELIGIC
SKU: 121663825
Availability: InStock

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Beijing, China

Brand Name:

CORELIGIC

Model Number:

CLBP-065/860-NN

Contact Supplier Request Quote Chat Now

Beijing Corelogic Communication Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Beijing, China

Brand Name CORELIGIC

Model Number CLBP-065/860-NN

Product Features

Filter is a kind of the device that allowing a certain part of the frequency of the signal through smoothly, and inhibit the other part of the frequency of the signal. Can pass the frequency range of the signal in the filter, known as the passband; On the other hand, the signal attenuation or completely suppressed was very frequency range is called the band rejection. It is small with high stability etc. Frequency division can be customized according to user requirements.

Specifications

Item		Min	Type	Max
Impedance			75Ω
Start Frequency			65MHz
Stop Frequency			860MHz
Insertion loss	65-860MHz		1.5dB	2.0dB
Return loss	65-860MHz	18.0dB	20.0dB
Rejection	0-47MHz		50dB	55dB
Rejection	1000-1800MHz		45dB	50dB

Operation Environment

Temperature:

Operating: -40°C to +70°C

Storage : -55°C to +95°C

Humidity: 0%-100% non-condensing

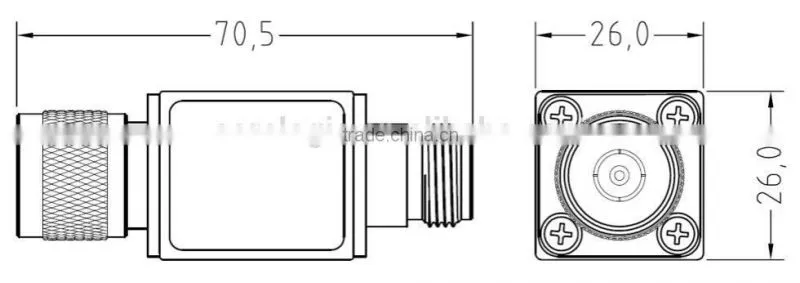

Outline Dimensions

Unit:mm

Naming Rule

Production Line

Machine and test equipment:

Design concept

It does not have a magnificent appearance, but uses the simplest appearance and highest quality to guarantee user satisfactory.

Environmental Guarantee

Our company has a strictly IQC inspection standard, each batch of materials from supplier will strictly test and inspection report must approved by management level before production. Moreover, the suppliers also necessary has a valid environmental protection ROHS report and a certification for environmental protection responsibility.

After-sale service

Warranty: one year (If the damages to the products are not artificial or natural disaster, our company is responsible for maintenance and replacement within one year).

Other Service

We can produce products in your brand according to your request.

If you need more information about it, please send me inquiry, you can get our reply within one day.
