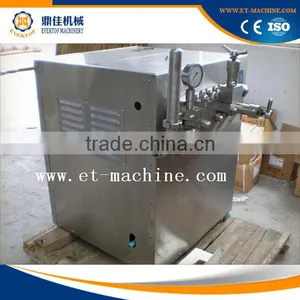

Homogenizer

Homogenizer photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
EVERTOP
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Jiangsu, China
Brand Name EVERTOP
Model Number ET
Processing Types Juice
Voltage by customized
Power(W) by customized
Weight by customized
Dimension(L*W*H) by customized
Certification CE ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

 homogenizer

Product Description
Working method: when product is flowing through the adjustable valve ,the particles or droplets present in mixed fluids with high pressure will be subdivided into the very smallest sizes (diameter Φ=0.1~0.2 um, average Φ ≤1um ) because of pressure decrease, expansion, explosion,cutting and high-speed impacting etc., then the emulsions or dispersions could be produced.Through homogenizing the stability, easy-absorb, long-life, taste and color etc. of product could be realized
Main applications:
(1) cell disruption, process new products, or harvesting the intracellular products;
(2) subdividing the particles or droplets present in fluids into very smallest sizes (submicron) and creating a stable dispersions and emulsions;
(3) homogenizing many other products;
Model
ET5000-25/30
ET5000-45
ET5000-70
Rated flow capacity
5000L/h
Max pressure
25/30Mpa
45Mpa
70Mpa
Rated working pressure
0-20/24Mpa
0-36Mpa
0-56Mpa
Motor power
37/45Kw
75Kw
75/110KW
Number of Plunger
3
3
3/4/5
Pressure adjustment
Hydraulic  adjustment, Manual adjustment available as option
Electric control cabinet
Provided as customer option
Frequency converter
Available as customer option
Feed pressure
0.2-0.3MPa
CIP
90°C/≤10000CP
Size
1.7*1.1*1.5(M)
1.8*1.2*1.3(M)
1.9*1.3*1.4(M)
Weight
2800kg
3500kg
3500kg
Shell material
SS 304
Material of sealing ring
X4310(Hemp fiber +Teflon)
Pressure gauge
Diaphragm type
Packaging & Shipping

 homogenizer

Our Services

 1. The plant layout
To provide customers with pre-project planning workshop, design.
2. Commissioning services
Send experienced engineers and technicians responsible for equipment installation and commissioning, to ensure normal production and customers.
3. Parts
It comes with one year of wearing parts when the device is shipped. In addition, we prepare an adequate equipment spare parts as inventory, customer ever need spare parts repair and maintenance of equipment, can quickly provide.
4. Technical training
To ensure that your technical staff to become familiar with the performance of the equipment, proper operation and maintenance procedures to master the equipment, provide on-site technical training, in order to facilitate customers faster and more comprehensive access to technology.

Company Information



 Zhangjiagang Evertop Machinery Co.,Ltd. is located in Sanxing Industrial Zone, Jinfeng Town, the scenic city of Zhangjiagang, Jiangsu Province,which is a specialized beverage packaging enterprise  We export to Russia, South Africa, Thailand, Philippines, Pakistan, Malaysia, Brazil, Sudan, Sierra Leone, Egypt, Kenya, Saudi Arabia, Yemen, Oman, the United Arab Emirates, the United States, Canada, and manyother countries, well received by most customers.

 We are sincerely providingthe customers the following products:mineral water 3-in-1 filling machine, juice 3-in-1 filling machine, carbonated drink3-in-1 filling machine, automatic blow molding machine, 5 gallon bottle series unit, complete sets of water treatment system, automatic batching, mixingsystem, a variety of sterilization equipment, complete sets of beveragepackaging equipment and other follow-up packaging equipment.homogenizer
