1.Introduction of Bamboo skewer producing machine
Name Power Weight Outline dimension
(kw) (kg) (m)
1.sawing machine (bamboo) 1.5 60 1.0×0.6×1.2
usage: sawed 400mm*160T,used for feeding and cutting bamboo, better length is 1-1.2m
2. Bamboo dissection machine 4.0 800 3.3×0.8×1.1
usage: dissection cutter head(9-18heads)total 10,put the finished bamboo into the suit cutter head according to the size and polish them into bamboo flakes, width from 20mm to 22mm,speed of feeding is 57m/min
3. flaker 1.5 130 0.7×0.7×1.2
Usage: put some of the flakes into this machine and flake, width is 3-4mm, speed of feeding is 87m/min
4. fixed width and thick flaker 2.2×3 500 1.6×0.7×1.2
Usage: put the polished bamboo flakes into this machine and make it
to be square and straight every side, width from 18-20 mm, width of flaker is 3-4mm,speed of feeding is 87m/min
5. Bamboo filament shaping machine3.0×2 400 1.0×0.7×1.2
1.1
usage: the normal standard is 2*2.2mm, speed of feeding is 87m/min
6. Bamboo filament set-size machine 0.75 200 1.5×0.8×1.0
Usage: set the filament, length of 34mm
7. Polishing machine 2.2 400 2.6×1.1×1.1
Usage: polish the raw stick after the set-size
8.Bamboo filament mincing machine
Usage :mincing the stick
9. Multi-sharpen machine 0.37 100 0.8×0.6×1.1
Usage: Sharpen the cutter and saw
This production line is composed of these 9 machines above, which are able to produce stick.And the total output is 220,000 pieces/8hrs, this production need about 4 person to operate.

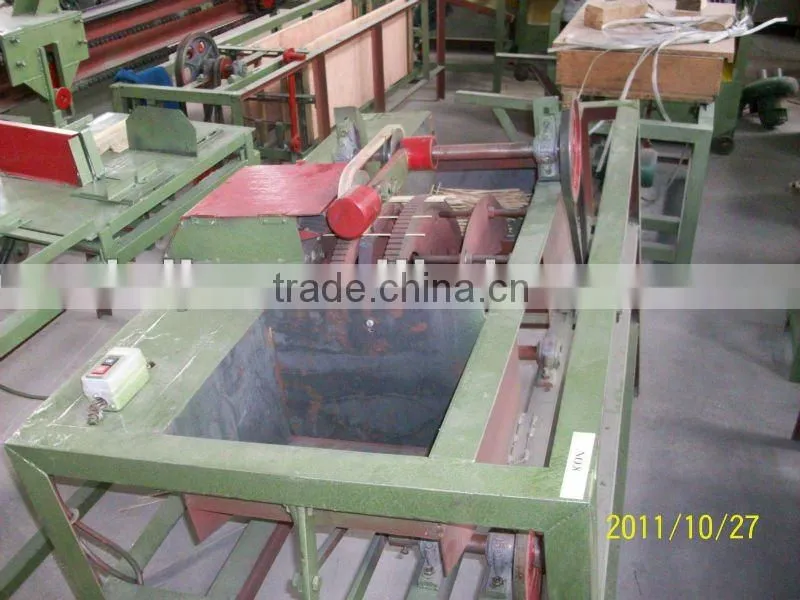

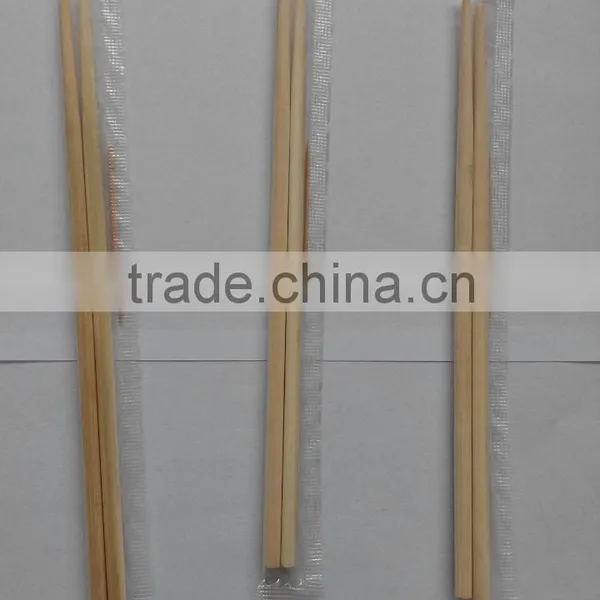

2.Photo of part of machines and production .
