*Introduction of the machines
The machine composed of plastic extruder, cooling unit, hual-off device .etc .It can produce different specifications of straw such as single color, double color, three color, spiral stripes and straight stripes.
The product supplied by the machine used in a wide range in industrial filed. For example: Drinking straw in food industry, straws in medical area .etc
* Machine function
Model | HD-SM01 | HD-SM02 | HD-SM03 | |
| ||||
Main parts | Main parts are: extruder, cooling water tank, hauling cutting system, single color, bicolor or tricolor pipes can be realized.( vacuum shaping equipment, air compressor, chiller ,automatic hopper as optional ) | |||
Power supply | Main screw | 380v ,3phase,50hz,7.5kw(VFD) | ||
Sub-screw | / | 0.75kw | 0.75×2kw | |
Hauling motor | 0.75kw(VFD)x1 | |||
Cutting motor | 0.75kw(VFD)x1 | |||
Temperature Controller | 5sets | 8sets | 11sets | |
Automatic Counting Device | 1set | 1set | 1set | |
Way of Hauling | By rubber roller | |||
Way of cutting | Rotatory cutting | |||

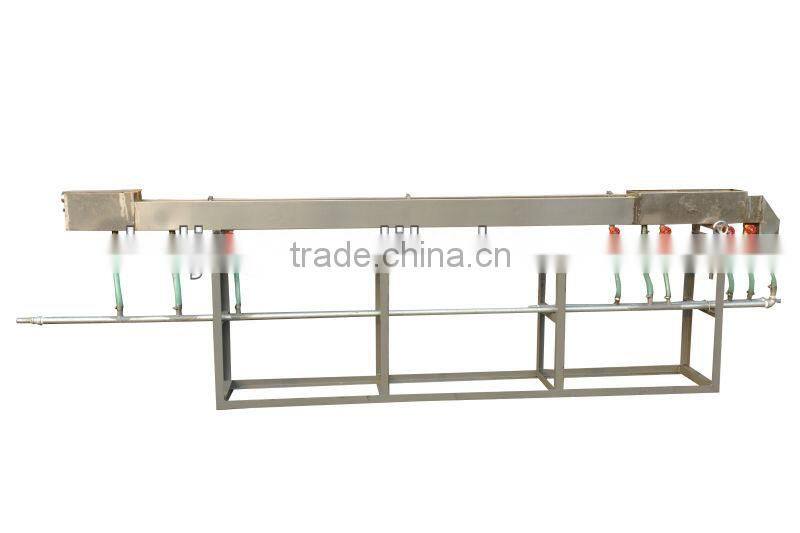

Cooling water tank | Usually 3.4m, can be adjusted. | |||
Option | Vacuum pump (0.75kw) | Air compressor (1.5 kw) | ||
| Chiller( 5HP) | Automatic Hopper with dry | ||
| Straw gather equipment |
| ||
Specification of Pipe | Material | PP PE etc. | ||
Diameter | 2mm~14mm | |||
Length | Customizable | |||
Speed | 600~1500pcs/min | |||
Color | Single | Two | Three | |
Straight or spiral strips | √ | √ | √ | |
Cutting End | 90°/90°,90°/45°,90°/60°,45°/45°,60°/60 | |||
Machine dimension L×W×H | 8m×1m×1.7mm | 8m×1.5m×1.7m | 8m×2m×1.7m | |
Weight of equipment | 1.5T | 1.7T | 2T | |

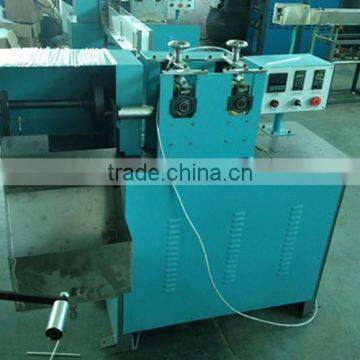

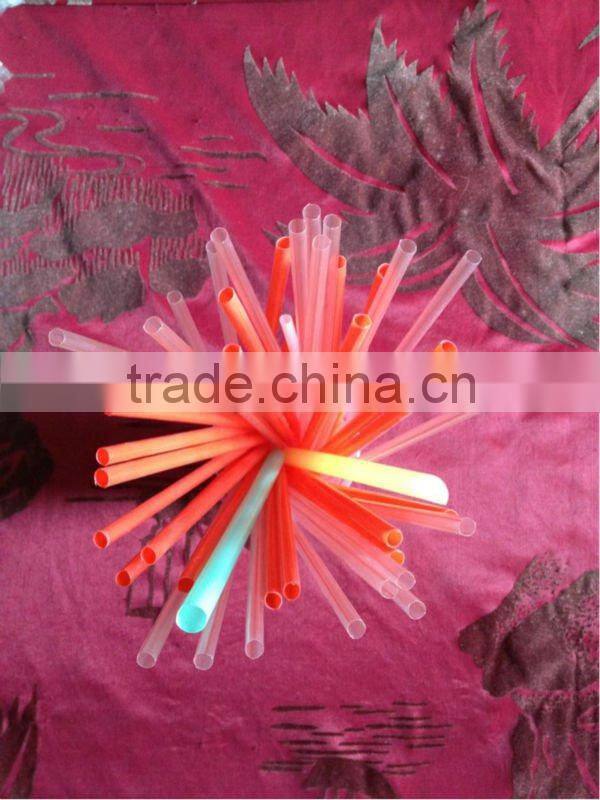

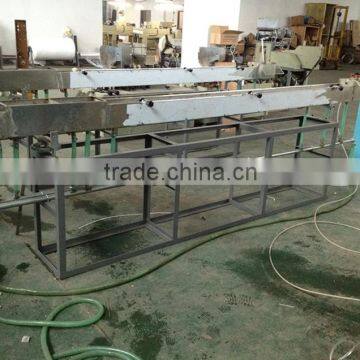

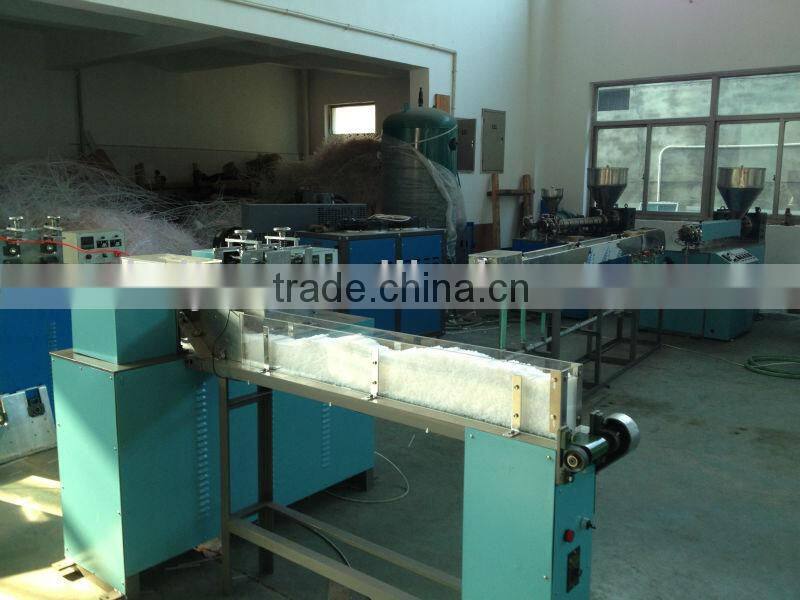

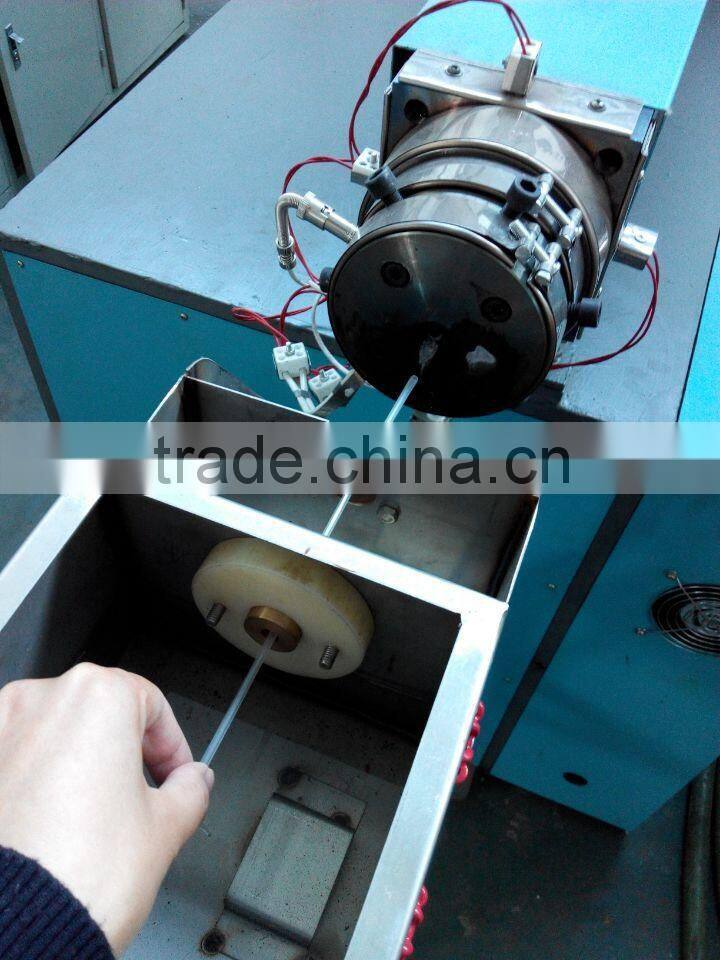

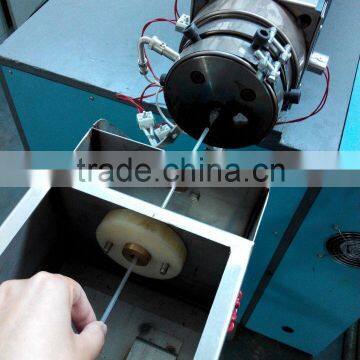

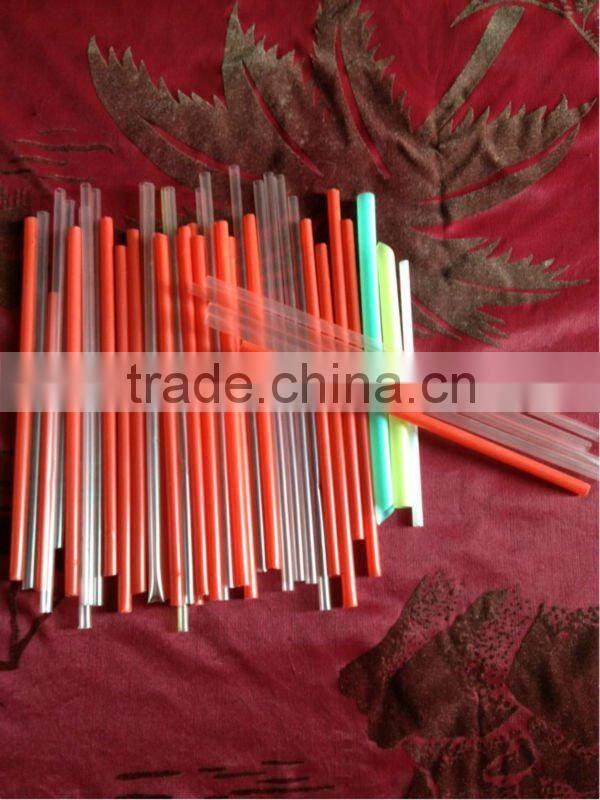

* Machine and straw Photo
