1300C High temperature 400x400x600mm Vacuum Atmosphere Quenching Furnace
1.SiC heating element
2.Vacuum:4.0×0.001Pa
3.Capacity:200Kg
4.400*400*600mm
Description of Product:

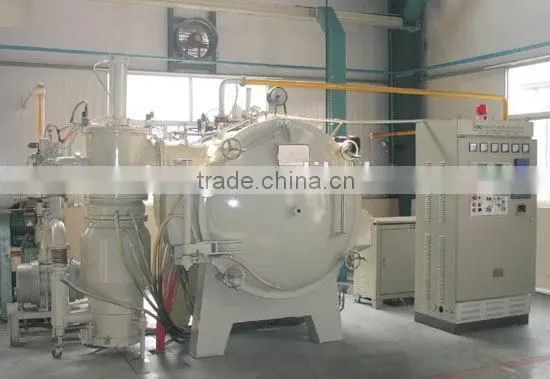

ST-CVDQ series of Single chamber high pressure gas quenching furnace consists of furnace body, vacuum system, water cooling system, gas inflation system, gas cooling system, electric control system and furnace outer material car etc. It is used for high pressure gas quenching of materials like high-speed steel, tool & mould steel, high temperature alloy, martensitic stainless steel, titanium alloy ,etc. and also for annealing magnetic material. It has special compacted inner furnace structure, with high-efficiency heat exchanger; it uses inside 360-degree nozzle all around cooling method and the highest gas quenching pressure can reach up to 1MPa. It is configured with optimization designed gas quenching system and electric control system and there is little deformation of components.
Main specifications:
Highest temperature |
1300°C |
Heating elements |

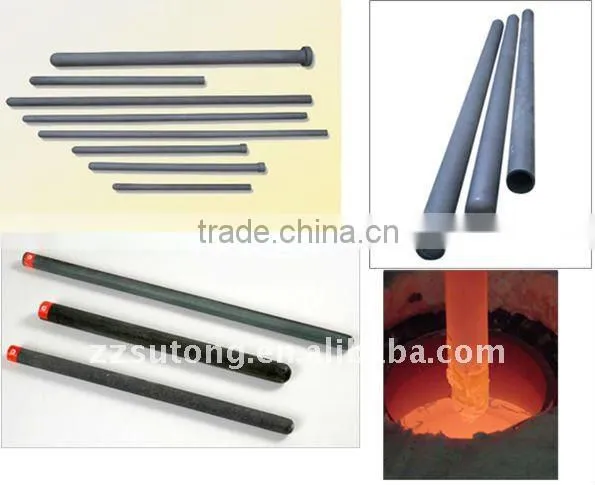

SiC heater(silicon carbide ) |
Furnace structure |
Double shell with water cooling system |
Utmost vacuum degree |
4.0×0.001Pa |
Pressure increasing rate (Pa/h) |
0.67Pa/h |
Furnace temperature uniformity |
±5°C |
Gas quenching pressure |
0.2;0.6;1.0Mpa |
Loading Capacity |
200~1500Kg |
Main product models:
Type |
Effective heating zone (W×H×L)(mm) |
Loading Capacity (Kg) |
ST-CVDQ-446 |
400×400×600mm |
200kg |
ST-CVDQ-557 |
500×500×700mm |
300kg |
ST-CVDQ-669 |
600×600×900mm |
500kg |
ST-CVDQ-7712 |
700×700×1200mm |
700kg |
ST-CVDQ-8812 |
800×800×1200mm |
800kg |
ST-CVDQ-9912 |
900×900×1200mm |
1000kg |
ST-CVDQ-101015 |
1000×1000×1500mm |
1500kg |
Note:
We can design and produce according to the users' specific requirements of technical parameters.
Applications:
1.Gravimetric analysis;
2.Quantitative analysis;
3.Sintering or Roasting or Forging or calcining;
4.Heat treating or Preheating;
5.Quenching or Hardening or Austempering
6.Annealing or Tempering or Normalizing
7.Stress Relieving
Warranty:Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
Replacement will be shipped to you after photo or other evidence are provided and investigated.
