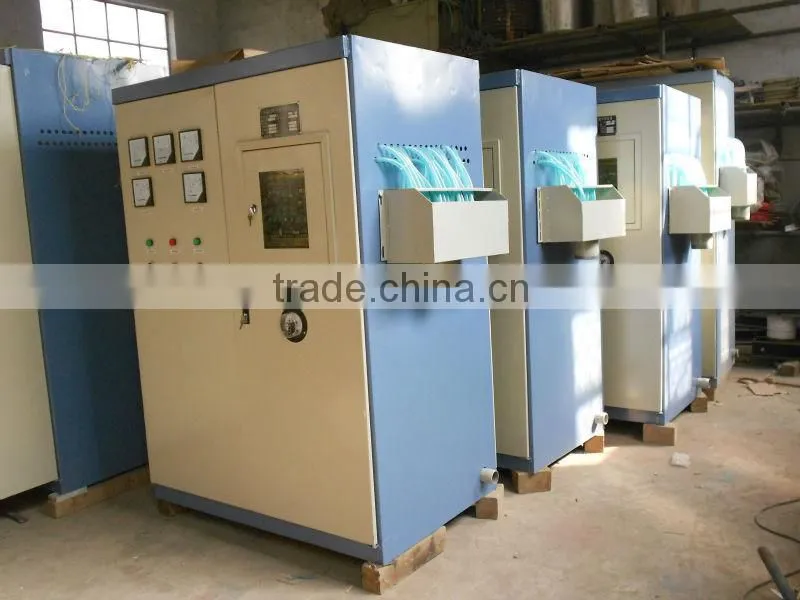

GW-5 Industrial Use Medium Frequency Induction Furnace capacity 5 ton
A. GW series medium frequency induction furnace of feature:
a). GW series Medium Frequency induction furnace,adopt electromagnetic induction principle manufacture, the electromagnetic field to direct effects on melt material and heat generation.So, it's heat conversion efficiency is high, does not produce waste gas pollution environment.
b). At the same time, due to the furnace shell is made of metal materials for shielding electromagnetic field, so the environment around of furnace does not produce electromagnetic radiation pollution.
c). Medium frequency power supply adopts 12 pulse CPU centralized control, have stable and reliable working performance.At the same time, using SCR rectifier and SCR inverter (or IGBT inverter), circuit structure is simple,Maintenance is very convenient; Overload ability is very strong, good safety protection function;when work is low noise .
d). The machine has simple structure, installation and debugging is very convenient.Operating personnel do not require special training and study, just read give as a present the technical data together as to can be installation and debugging and use it.

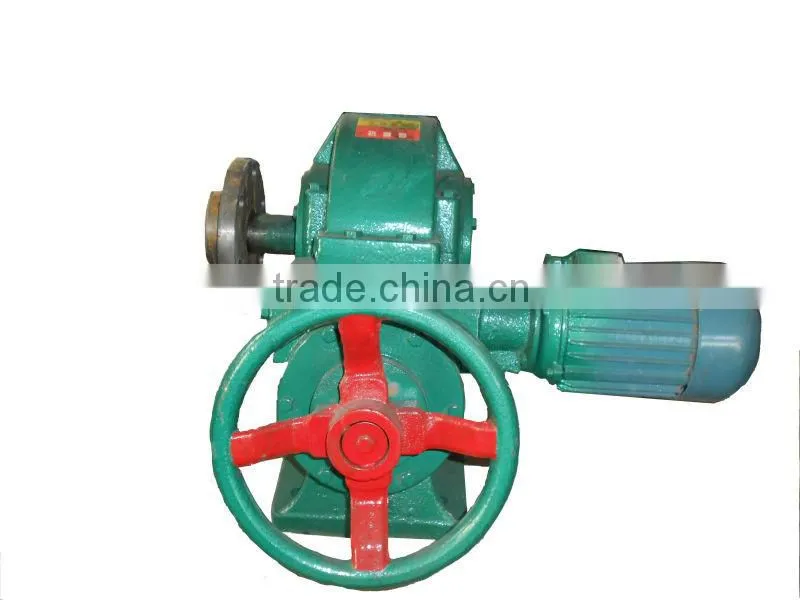

e). Tilting furnace device uses electric gear speed reducer, the manufacturing cost is low, easy for installation and flexible rotation.
B. GW series medium frequency induction furnace of application:
GW series medium frequency induction furnace, mainly used in melting point is lower than 1600. C metal melting and purification, fusion metal alloy material.It is widely used in industry production for metallurgy, casting, alloy workpiece manufacturing etc.Also by the laboratory select and use for metallurgy process research, casting process research, alloy process research, etc.Because it does not produce by waste gas, waste water and noise etc.,does not polluting the environment, so it is replacing the traditional metal smelting melting equipment.
C. Samples of the main performance indexes:
| Product name and model | GW-5 Quick steel melting induction furnace |
| Highest temperature | 1650°c |
| Temperature accuracy | ±5°c |
| Load capacity | 5000Kg |
| Melting rate | 5800Kg/hour |
| Medium Frequency power | 3000KW |
| Melting frequency | 500Hz |
| Power consumption | 0.58 KWh/Kg |
| Induction coil voltage | 3000V |
| Water consumption | 46 tons/hour |
| Power supply | AC,3-phase,208/380/400/415/440/465V,50/60Hz |
| Tilting furnace device | Electric reducer |

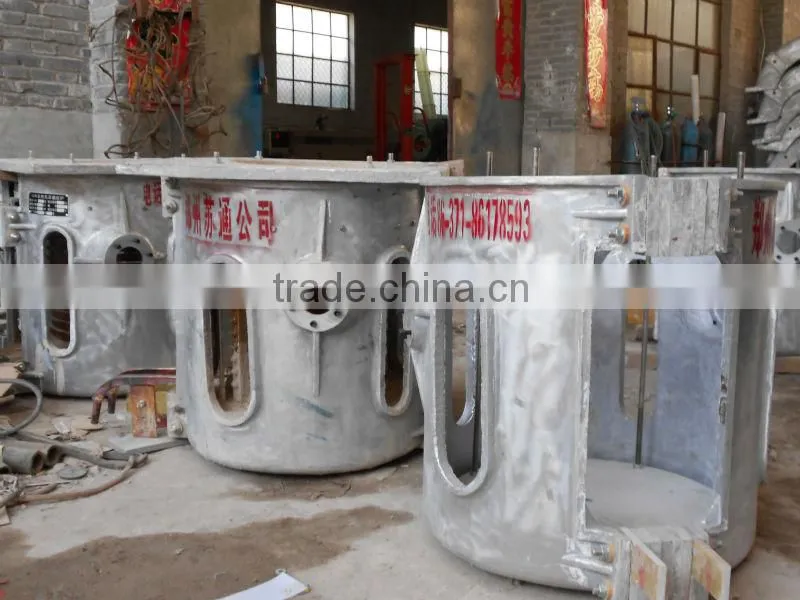

| Furnace shell structure | Casting aluminum shell |
| Equipment total weight | About6.7 tons (two furnace body), 5.8tons(one furnace body) |
| Equipment total volume | About 15.5CBm(two furnace body),13.8CBm(one furnace body) |
D. GW series medium frequency induction furnace of Conventional model:
model |
Lading capacity |
Medium Frequency power |
Melting frequency (Hz) |
Melting rate (Kg/h) |
Power consumption (KWh/Kg) |
Water consumption (tons/h) |
Induction coil voltage (V) |
GW-0.05 |
50Kg |
65KW |
1000 |
65 |
0.9 |
3 |
1000 |
GW-0.1 |
100Kg |
110KW |
1000 |
135 |
0.8 |
4 |
1000 |
GW-0.15 |
150Kg |
160KW |
1000 |
200 |
0.8 |
5 |
1000 |
GW-0.25 |
250Kg |
250KW |
1000 |
330 |
0.72 |
7 |
1000 |
GW-0.35 |
350Kg |
300KW |
1000 |
420 |
0.70 |
8 |
1000 |
GW-0.5 |
500Kg |
400KW |
1000 |
550 |
0.68 |
10 |
2000 |
GW-0.75 |
750Kg |
500KW |
1000 |
850 |
0.67 |
15 |
2000 |
GW-1 |
1000Kg |
800KW |
500 |
1200 |
0.65 |
18 |
2000 |
GW-1.5 |
1500Kg |
1000KW |
500 |
1800 |
0.61 |
25 |
2800 |
GW-2 |
2000Kg |
1250KW |
500 |
2500 |
0.60 |
28 |
2800 |
GW-3 |
3000Kg |
1600KW |
500 |
3600 |
0.60 |
35 |
3000 |
GW-5 |
5000Kg |
3000KW |
300 |
5800 |
0.58 |
46 |
3000 |

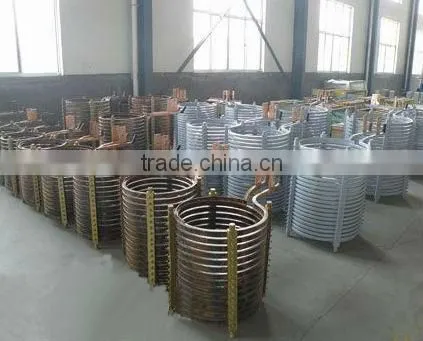

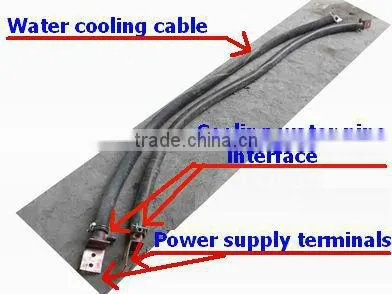

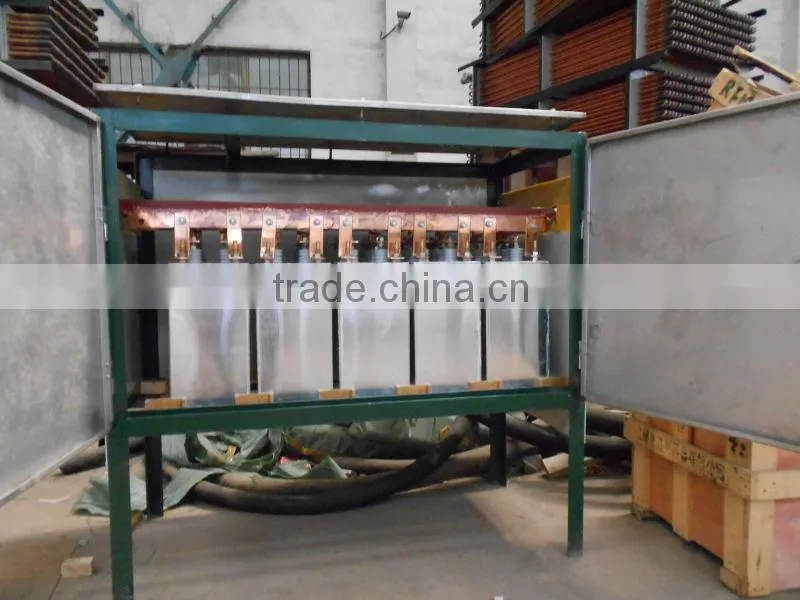

E. Furnace with accessories:
