metal melting furnace induction furnace intermediate frequency
Induction Melting Furnace Applications used for steel, iron ,copper ,aluminum melting before casting.
- This electric furnace is applicable for melting, heating and holding of steel, copper, inron, aluminum, zinc, tin, nickel and toher ferrous of nonferrous metal.
- This electric furnace can also be used for forging, sintering and tube-bending forming in casting and melting industrials.
Induction Melting Furnace Features fast speed of melting, energy saving, less burnt loss, pure molten liquid.
- Customerized design acceptable
- No pollution
- High heating speed
- Low power consumption
- High temperature accuracy
Melting furnace's aluminum frame is adopted to small capacity melting furnace with reasonable structure and small capacity, convenient installation and simple maintenance, low maintenance cost.
Induction Melting Furnace steel structure ( frame structure and cylinder structure ) is adopted to large capacity electric melting furnace which is equipped with magnetic yoke. The yoke will shield and reduce magnet leakage and prevent furnace body from over-heating, thus will improve efficiency and sustain the induction coil at the same time. Thus will enhance the strength and reduce noise.
Inductor of melting furnace of fast melting furnace are double paralleled winded with prolonged coil to make sure the half capacity of furnace molten liquid can be heated by full load power output which will improve overall efficiency. Cooling system is equipped along with the induction coil prolong the lining life.
Technical parameter of Induction Melting Furnace for Steel Scrap Series
Model |
Loading capacity (kg) |
IF power (kw) |
supply voltage(V) |
IF-FRE (Hz) |
Melting Rate (kg/h) |
Power consumption (KWh/kg) |
Rated power of transformer(KVA) |
GW-0.05 |
50 |
45 |
380/400 |
1000 |
45 |
0.56 |
63 |
GW-0.1 |
100 |
85 |
380/400 |
1000 |
85 |
0.56 |
100 |
GW-0.15 |
150 |
135 |
380/400 |
1000 |
125 |
0.55 |
160 |
GW-0.25 |
250 |
250 |
380/400 |
1000 |
200 |
0.55 |
250 |
GW-0.35 |
350 |
300 |
380/400 |
1000 |
300 |
0.67 |
315 |
GW-0.5 |
500 |
400 |
380/400 |
1000 |
350 |
0.67 |
400 |
GW-0.75 |
750 |
500 |
380/400 |
1000 |
500 |
0.67 |
500 |
GW-1 |
1000 |
800 |
380/400 |
1000 |
800 |
0.67 |
800 |
GW-1.5 |
1500 |
1000 |
660 |
500 |
1200 |
0.61 |
1000 |
GW-2 |
2000 |
1250 |
660 |
500 |
1600 |
0.61 |
1250 |
GW-3 |
3000 |
1600 |
660 |
500 |
2400 |
0.61 |
2000 |
GW-4 |
4000 |
2300 |
660 |
500 |
3200 |
0.6 |
2500 |
GW-5 |
5000 |
3000 |
950 |
300 |
4500 |
0.6 |
3150 |
GW-6 |
6000 |
3300 |
950 |
300 |
5400 |
0.6 |
3500 |
GW-10 |
10000 |
3900 |
950 |
300 |
9000 |
0.56 |
4000 |
GW-15 |
15000 |
5000 |
950 |
300 |
13500 |
0.56 |
6300 |
GW-20 |
20000 |
8000 |
1000 |
200 |
18000 |
0.5 |
8000 |
Melting furnace Product Overview

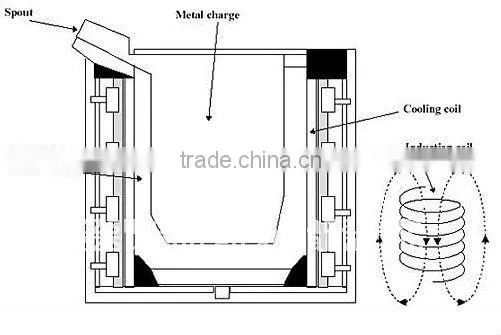

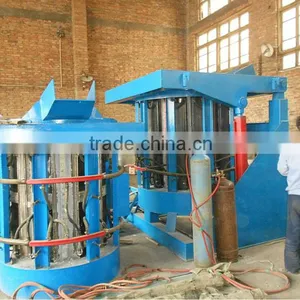

Furnace Body (melting pot )and Induction Coil of Induction Melting Furnace
Power Control Cabinet of Induction Melting Furnace
Compensation Capacitor of Induction Melting Furnace
Melting Procedures
Packing & Shipping
Small indution melting furnace will be packed by standard plywood case for exporting ;
Suppose your order is of big valumn or 1pc furnace with large capacity, the products will be delivered by 20GP or 40GP container. Top open container is optional as well.
plywood case packaging
Large capacity Induction melting furnace loading in Container
Our Services
- Sutong can load container at Qingdao, Tianjin, Shanghai etc.
- Sutong provide shipping method: Courier service, Air transport, Sea transport
- Sutong accept order: Full container cargo load, LCL and sample order
- Sutong provide service:EX-WORK, FOB, CIF, C&F, Door to Door etc
- Sutong has complete quality control system and after-sale service
Payment
L/C T/T, West union,etc.
Warranty
- Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost.
- This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
- Replacement will be shipped to you after photo or other evidence are provided and investigated
