Factory Direct Sales 180-240vac 12vdc 350w Rainproof Led Switching Power Supply With CE RoHS

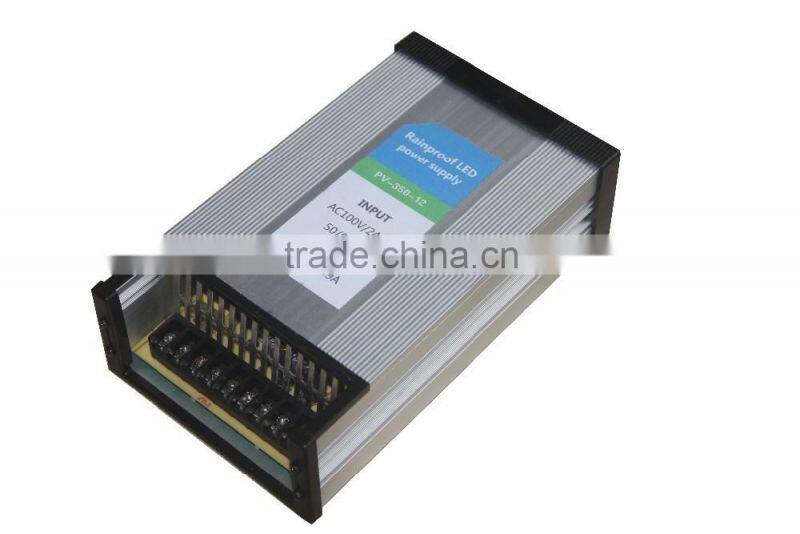

Factory Direct Sales 180-240vac 12vdc 350w Rainproof Led Switching Power Supply With CE RoHS photo-1

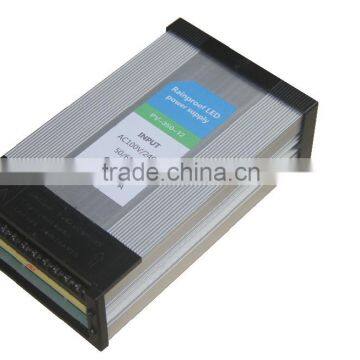

Factory Direct Sales 180-240vac 12vdc 350w Rainproof Led Switching Power Supply With CE RoHS photo-2
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
PT Power
Model Number:
PV-350-12
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou ShenZhen ZhuHai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name PT Power
Model Number PV-350-12
Output Power Other, 200W
Output Type Dual
Input Voltage Other, AC170-240V
Output Voltage DC12V
Output Current 29.2A(Max)
Product Description



  • 1. Model: 350W LED driver constant voltage model
  • 2. Average life span: 50000hours
  • 3. Waterproof level:  IP33 level
  • 4. Transform efficiency: more than 83%
  • 5. Enter the time withstand 300VAC surge for 5 seconds.
  • 6. The Voltage design (Voltage current mode).
  • 7. Certification:CCC
  • 8. Warranty: 2 years
  • 9.The use of the AC input.
  • 10.Characteristics:  high efficiency, low consumption, energy saving , short circuit; overload, over voltage protection, heat protection. Suitable for LED lighting and moving sign applications.

Factory direct sales 180-240vac 12vdc 350w rainproof led switching power supply with CE RoHS

Factory direct sales 180-240vac 12vdc 350w rainproof led switching power supply with CE RoHS

Specifications





Products ModelPV-350-12
OutputOutput Voltage12V±0.5V
Rated Output Voltage 12V
Output current0-29.2A
Power350W
Voltage Precision±5%
Output Ripple240mVP-P
Load Reulation±2%
Start/Rise time500ms,20ms/230VAC
Retention time20ms/230VAC
InputInput Voltage rangeAC:170-240V
Input Frequency range50-60Hz
PF values>83%
Leak Current0.25mA/240VAC
ProtectionOverload Protection110%-150% Output Current
Protection type : Hiccup mode
Working ProtectionWorking Temperature-25℃-50℃
Storage Temperature-40℃-80℃
IP Rate20~90%RH non condensing, refer to IP20
Shake Proof10-500HZ,2G 10min/1cycle,preiod for 60min,each along X,Y,Z axes
Temperature Coefficient±0.03%℃ (0-50℃)
EMCSecurity StandardIP33 approved:Design refer to LVD EN61347-2-13:2006,EN61347-1:2008
Withstand voltageI/P-O/P:1.5KVAC,I/P-COVER:1.5KVAC,O/P-COVER:500VAC
Insulatuon ResistanceI/P-O/P:>100M Ohms/500VDC/25℃/70% RH
EMCEN55015:2006/A2:2009,EN61000-3-2:2006/A2:2009,EN61000-3-3:2008,EN61547:2009
OthersMean Free Error Time50KHours (25℃)
Dimesnsion205*120*55mm(L*W*H)
Weight600g







 Electrical Schematic



 Factory direct sales 180-240vac 12vdc 350w rainproof led switching power supply with CE RoHSFactory direct sales 180-240vac 12vdc 350w rainproof led switching power supply with CE RoHS



Packaging & Shipping

 Outer packing (unit:mm)

1.Carton size: 48*27*25cm.

2.Qty: 30pcs packed in one carton.

3.Carton sealing was "H" shaped sealing.

4.The net weight of packing: 18kg.



Warmly Reminder





1.Try to avoid the minefields, high-pressure area to install;
2.Ensure that the correct connection, in order to avoid short-circuit damage to components and trigger fires;
3.Connect the power supply is installed in a well ventilated place to ensure appropriate environmental temperature;
4.Prohibit live wiring, check to confirm wiring is correct, check the no short-circuit, then power;
5. If a problem occurs, do not make unauthorized repairs. If you have questions, please contact the supplier.



Company Information

Factory direct sales 180-240vac 12vdc 350w rainproof led switching power supply with CE RoHS

Founded in 2004, Zhuhai PT Power Technology Co,. Ltd is committed to manufacturing LED switching power supplies, included Constant Voltage LED switching power supply, Constant Current switching power supply, Waterproof and Rainproof LED power supply, and Dimmable LED Drivers, etc. Our power supplies have been used for LED street light, LED panel light, LED strips, LED modules, LED flood light, LED down light, etc. Currently we've completed technical quality management systems. During the passed decade and more, we have expanded our business and become one of the most professional manufacturers in the market of LED Power supply, and succeed in developing high efficiency solution for LED Power supply.  We are pleased to get your inquiry and we will come back to you ASAP. For further details, please  log on our website () or visit our factory with face-to face meeting. Thank you!



Factory direct sales 180-240vac 12vdc 350w rainproof led switching power supply with CE RoHS



Certifications

Factory direct sales 180-240vac 12vdc 350w rainproof led switching power supply with CE RoHS



FAQ

1. How about the delivery time of products?

A: sample 3-7 days, bulk orders for more than 5 days.



2.Whether to accept small orders or not?

A: Yes, the minimum order quantity is more than 20pcs.



3. After sales service?

A: Provide two years of quality warranty.



4. Reply to the buyer's inquiries and provide timely quotation? How long?

A: working hours are very timely

(8.30 a.m. - 12:00 p.m.: 1.30 - 5:30)



5.Payment methods?

A: payment to delivery (30% deposit).L/C, T/T



6.Whether to provide OEM/ODM services? OEM/ODM orders / projects to complete the required time?

A: You can provide.



7.What are the certifications?

 A:CCC, CE,  ROHS,  TUV,  FC, SAA and other certification.
