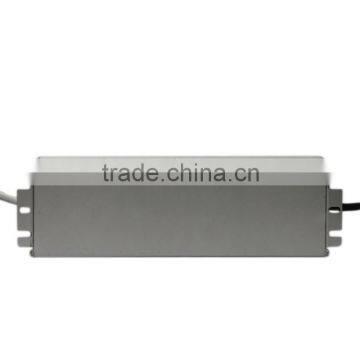

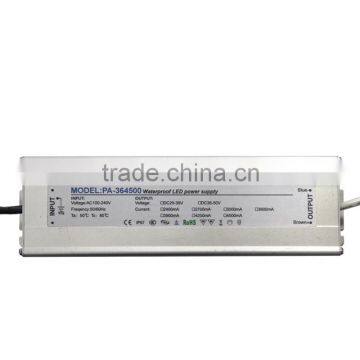

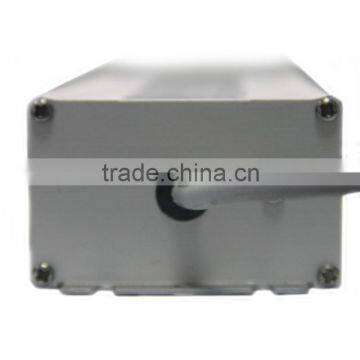

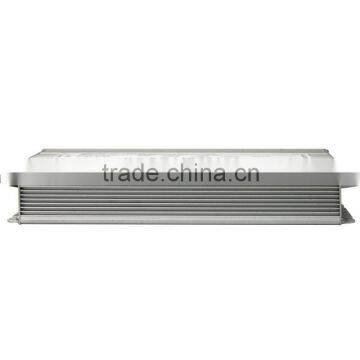

4500mA 150w Driver Led for Led Street Light Usage

Name: 4500mA 150w Driver Led for Led Street Light Usage
Brand: PT Power
SKU: 121604711
Availability: InStock

Zhuhai Pt Power Technology Co., Ltd.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

PT Power

Model Number:

PA-364500

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou ShenZhen ZhuHai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name PT Power

Model Number PA-364500

Output Power Other, 150W

Output Type Single

Input Voltage Other, 100-240V

Output Voltage DC20-36V

Output Current 4500mA

Product Description

1. Model: 4500mA LED driver constant current model
2. Average life span: 50000hours
3. Water proof level: IP67 level
4. Transform efficiency: more than 85%
5. Enter the time withstand 300VAC surge for 5 seconds.
7. The Voltage design (Voltage current mode).
8. Certification: CE, RoHS, CCC, SAA
9. Warranty: 3-years
10.The use of the AC input.
11.Characteristics: high efficiency, low consumption, energy saving , short circuit; overload, over voltage protection, heat protection. And is suitable for LED lighting and moving sign applications.

Product Specifications
Products Model		PA-364500
Output	Output Voltage	20-36V
	Rated Output Current	3000mA	3600mA	3900mA
	Output current	3000mA±5%	3600mA±5%	3900mA±5%
	Power	108W	129.6W	140W
	Current Precision	±5%
	Output Ripple	800mVP-P
	Load Reulation	±2%
	Start/Rise time	500ms,20ms/230VAC
	Retention time	20ms/230VAC
Input	Input Voltage range	100-240VAC
	Input Frequency range	50-60HZ
	FP values	≥0.95
	Effeciency	>85%
	Leak Current	0.25mA/240VAC
Protection	Overload Protection	±5% Rated Current output
		Constant current restriction style protection
	Over Voltage protection	42-48V
Working Protection	Working Temperature	-25℃-50℃
	Storage Temperature	-40℃-80℃
	IP Rate	90%RH non condensing, refer to IP67
	Shake Proof	10-500HZ,2G 10min/1cycle,preiod for 60min,each along X,Y,Z axes
	Temperature Coefficient	±0.03%℃ (0-50℃)
EMC	Security Standard	IP67 approved:Design refer to LVD EN61347-2-13:2006,EN61347-1:2008
	Withstand voltage	I/P-O/P:3.75KVAC,I/P-COVER:3.75KVAC,O/P-COVER:500VAC
	Insulatuon Resistance	I/P-O/P:>100M Ohms/500VDC/25℃/70% RH
	EMC	EN55015:2006/A2:2009,EN61000-3-2:2006/A2:2009,EN61000-3-3:2008,EN61547:2009
Others	Mean Free Error Time	50KHours (25℃)
	Dimesnsion	*2347943(LWh)*
	Weight	1080g

Product applicatioin:

LED Power Supply is widely used in : LED wall washer, LED panel lights, LED flexible light strip, LED Modules, etc.

Dimensions(Unit:mm)

Electrical schematics:

Graph:

Packaging & Shipping

The outer packing (unit:mm)

Packing Description:

1.Carton size: 32.5*28.5*20.5cm.

2.Qty 9 pcs packed in one carton.

3.Carton sealing was "H" shaped sealing.

4.The net weight of packing: 9.72kg.

Watch out
1.Try to avoid the minefields, high-pressure area to install;
2.Ensure that the correct connection, in order to avoid short-circuit damage to components and trigger fires;
3.Connect the power supply is installed in a well ventilated place to ensure appropriate environmental temperature;
4.Prohibit live wiring, check to confirm wiring is correct, check the no short-circuit, then power;
5. If a problem occurs, do not make unauthorized repairs. If you have questions, please contact the supplier.
