ST-1600MBL-10 load at the bottom Furnace for sintering and melting
A- Samples main technical parameters and description:
Main application |
Used for melting and sintering in chemical experiments. |
Inside Chamber Size |
600x600x600mm(24"x24"x24") |
Standard Working Temperature |
1500.C ( continuous ) |
Maximum Working Temperature |
1600.C ( < 3 hrs) |
Temperature Control |
30 steps programmable and PID automatic control |
Heating Rate |
0~ 10.C/ min (suggestion: =< 10.C ) |
Temperature Accuracy |
+/- 1 .C |
Heating Element |

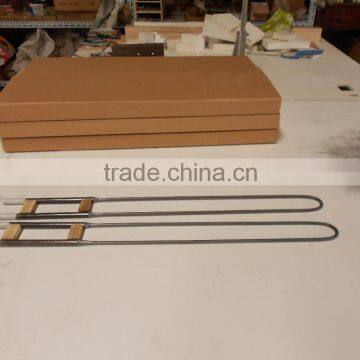

MoSi2 heating elements |
| Thermocouple | B type |
Furnace structure |
Double shell with fan cooling |
Objective table lifting mechanism |
Electric putter (double slide bar) |
Objective table journey |
650mm |
Objective table load capacity |
110Kg |
| Working Voltage | AC,400V±10%, 3-Phase,50/60Hz or according to your requirement) |
| Rated power | 42KW |
| Packing weight | 1450Kg |
B- Standard Sizes
Model |
Chamber size(WxHxDmm) |
Max. Temperature |
Rated power |
ST-1600MBL-1 |
150x150x150mm (6x6x6") |
1600.C |
4.5KW |
ST-1600MBL-2 |
150x150x200mm (6x6x8") |
1600.C |
6KW |
ST-1600MBL-3 |
200x200x200mm (8x8x8") |
1600.C |
9KW |
ST-1600MBL-4 |
200x200x300mm (8x8x12") |
1600.C |
12KW |
ST-1600MBL-5 |
250x250x300mm (10x10x12") |
1600.C |
16KW |
ST-1600MBL-6 |
300x300x400mm (12x12x16") |
1600.C |
20KW |
ST-1600MBL-7 |
350x350x400mm (14x14x16") |
1600.C |
24KW |
ST-1600MBL-8 |
400x400x400mm (16x16x16") |
1600.C |
30KW |
ST-1600MBL-9 |
500x500x500mm(20"x20"x20") |
1600.C |
36KW |
| ST-1600MBL-10 | 600x600x600mm(24"x24"x24") | 1600.C | 42KW |
C- ST-1600MBL-10 load at the bottom Furnace of application
ST-1600MBL-10 load at the bottom Furnace mainly used in chemical analysis, physical decomposition and synthesis,superhard materials (such as ceramic), Rare and precious metal smelting and purification,metal heat treatment of sintering process research and other scientific experiments. Universities and colleges, scientific research institutes, medical and health, petroleum chemical industry, mining enterprise, quality and technology supervision agencies, and other units laboratory, laboratory are the use of such equipment.
D- ST-1600MBL-10 load at the bottom Furnace of features

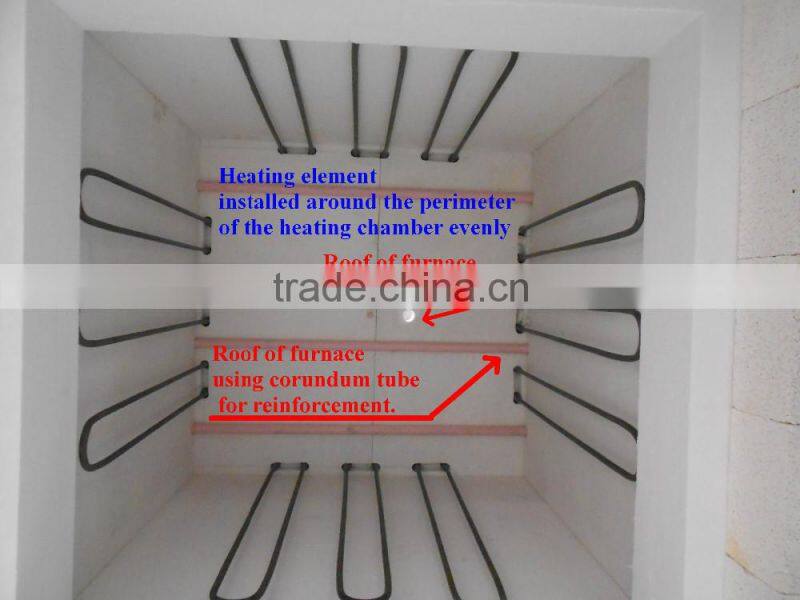

1.Roof of furnace using corundum tube for reinforcement.As shown in figure 1.
2.Roof of furnace have a vent holes with diameter of 40 mm, emissions exhaust gas produced in the process of chemical experiments.As shown in figure 1.

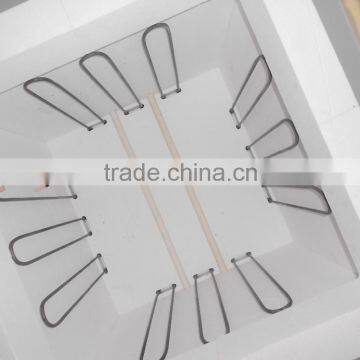

3.Heating element installed around the perimeter of the heating chamber evenly, can improve the uniformity of furnace temperature.As shown in figure 1.
Figure 1 Figure 2

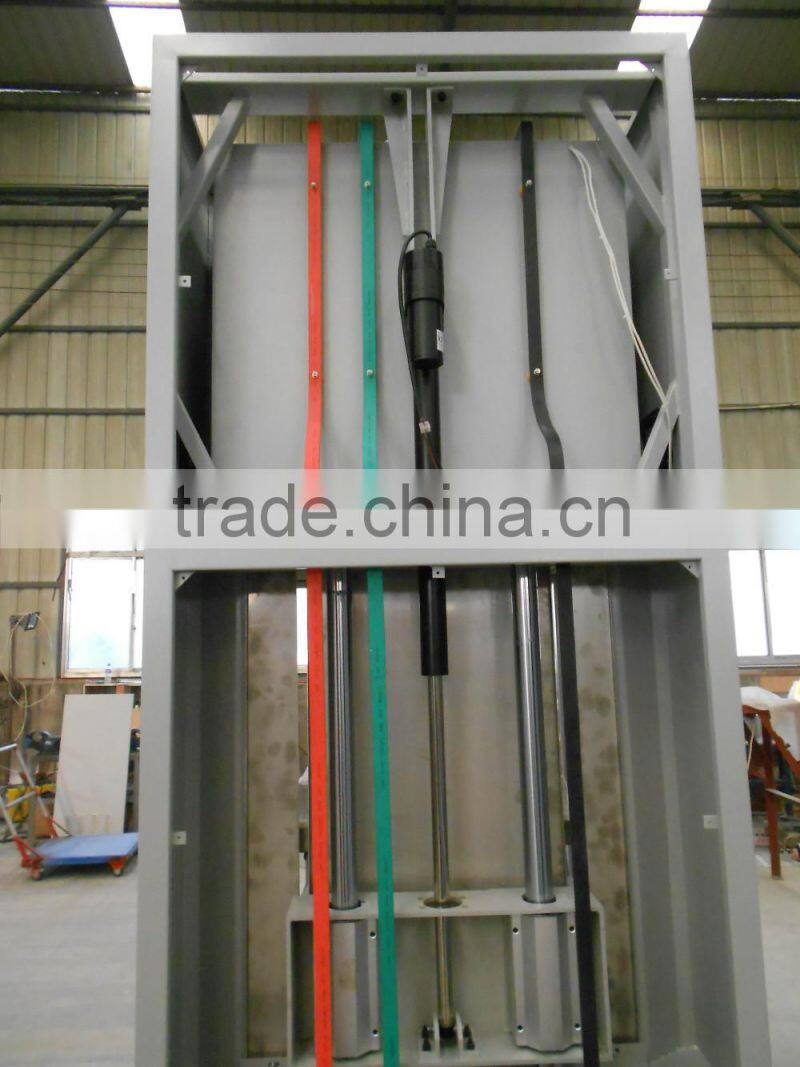

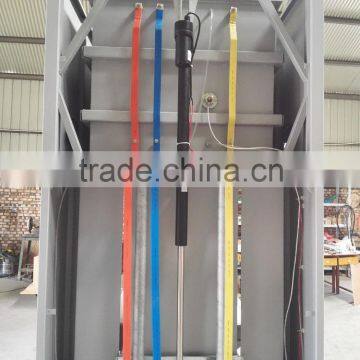

4.The lifting objective table useing positioning by double slide bar and vertical screw drive, smooth operation,limit accurately, maximum driving load of up to 110 kg.As shown in figure 2.

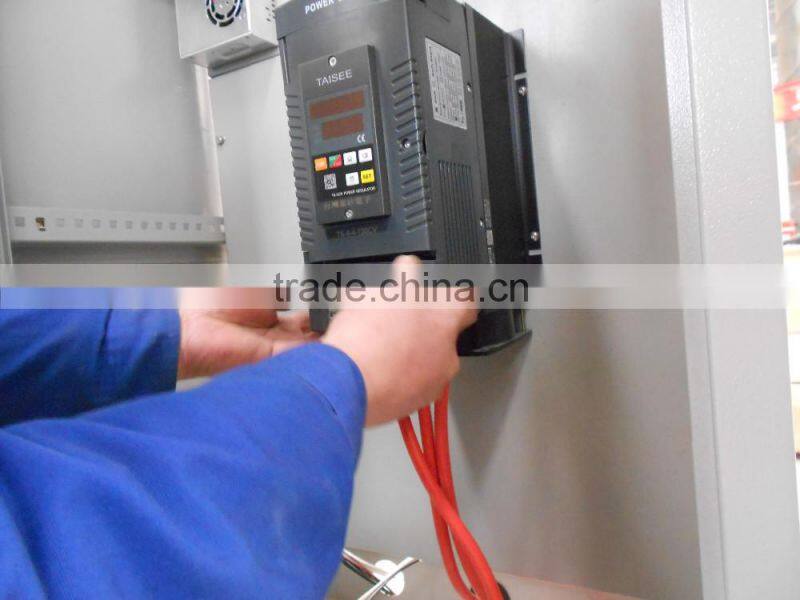

5.Power supply cabinet useing large Power three-phase power regulator, strong anti-jamming capability, more stable output voltage.As shown in figure 3.
6.Objective table lifting distance is larger, applicable to place larger experimental samples.As shown in figure 4.
Figure 3 Figure 4

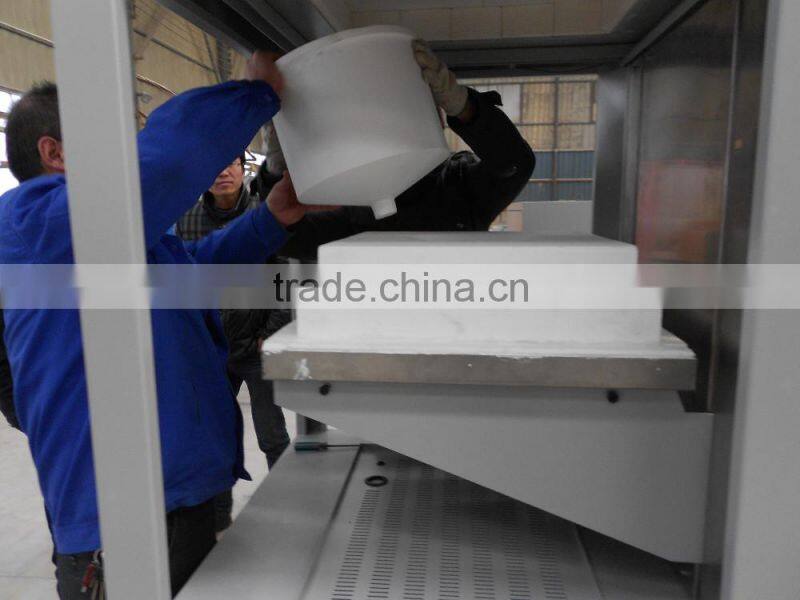

7. Objective table base can be installed the diversion hole, the material be melted, can flow from the bottom of the crucible and don't need to open the furnace door, and can directly pouring into the mould.As shown in figure 5.

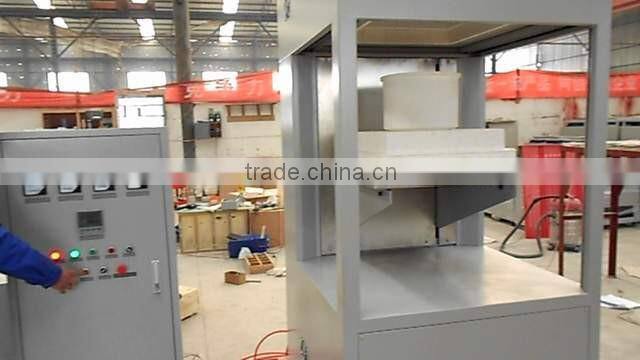

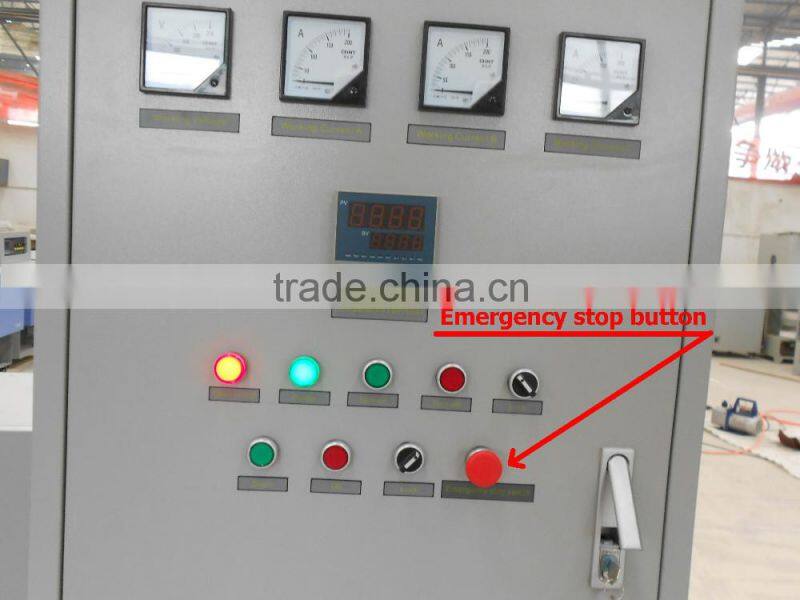

8. Power cabinets have emergency stop buttons on the control panel, if an emergency occurs, to protect the safety of the furnace.As shown in figure 6.
Figure 5 Figure 6

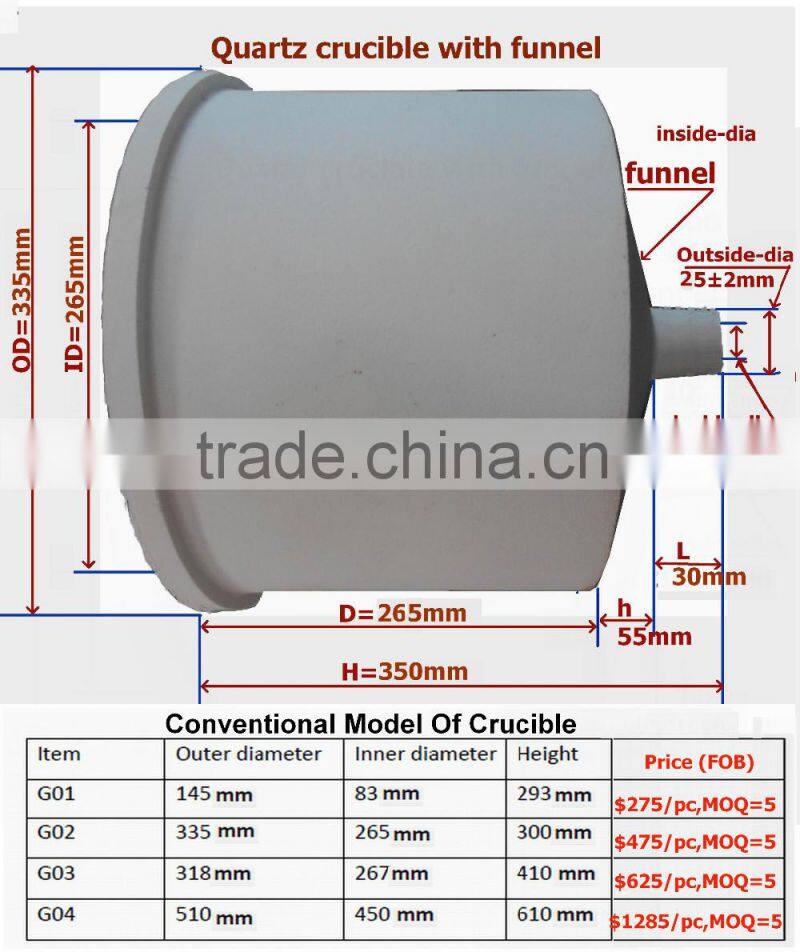

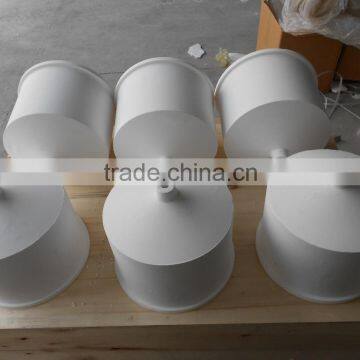

9. Furnace use the size of the crucible, refer to the following table.External shape of the crucible, as shown in figure 7.
Figure 7
10. Can be installed computer communication module and RS485 communication interface, to realize the remote control.
