Description:
The passive infrared sensors occupancy by detecting the difference between heat emitted from the human body in motion and the background space. This device operates by detecting motion within its field-its-view and automatically switches lights ON. When motion is no longer detected, lights remain ON for a selected time and automatically switch OFF. It is suitable for indoor use only. It is ideal for any room in your home that would benefit from automatic light control, such as bathrooms, bedrooms and living areas.
Features:
l Turn lights ON/OFF automatically
l Neutral wire required
l Time delay OFF setting is adjustable from 15 seconds to 30 minutes
l Two-in-one version built-in OOC/VAC slide button offers manual or auto-on
l Adjustable sensitivity settings
l Standard decorator wall plate included
Technical data
CAT.NO. |
RATING |
COVERAGE |
WOSS |
Incandescent:500W @ 120VAC Fluorescent:500VA @ 120VAC Motor:1/8HP @ 120VAC
|

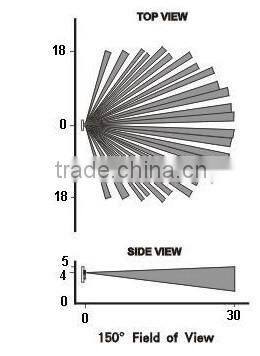

150°,650sq.ft |
coverage range
Specifications:
l Built-in photocell, increases energy saving
l Adjustable light, detection range and time delay are located on the front of the device
l When the switch is in automatic(AUTO) mode, the LED indicator flashes when the motion is detected

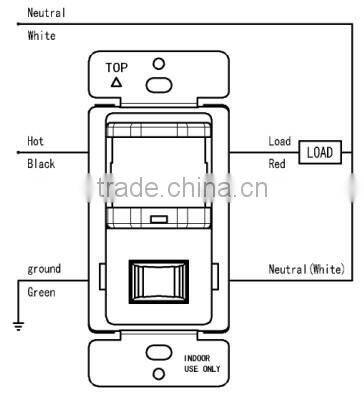

l Installing this device requires experience with residential and commercial wiring practices. Consult local building codes before attempting to install this device
l Operating Temperature:68°F-77°F
Normally, the package we support is GENERAL BLANK package with MOQ 500pcs. We also have many experience in supporting OEM service to our dear customers for over 10 years with MOQ 2000pcs. Welcome to your inquiry.
If within three(3) years from the date of purchase, this product fails due to a defect in material or workmanship, we will repair or exchange it, at its sole option free of charge
