Specifications
1. Solar lighting charger controller2. High Quality, Factory Price,
3. MOQ:1pcs
4. 2 year warranty, accept customer Label
1. Solar Controller for LiFePO4 Batteries (12V/24V, 15A)

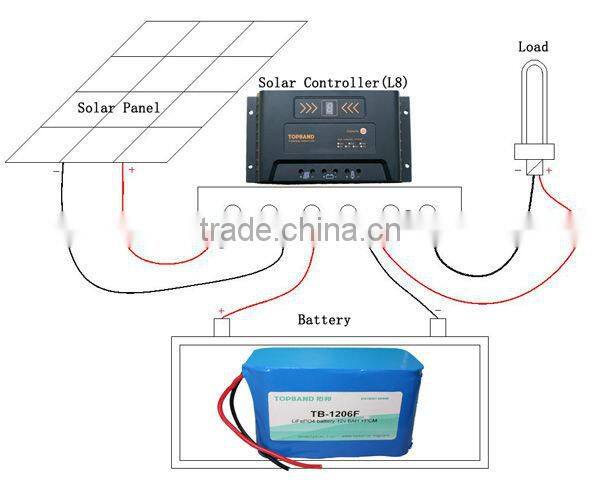

Topband 12V/24V, 15A Solar Controller (Model Solli15001) is a versatile controller for solar systems, that can charge LiFePO4 (Lithium Iron Phosphate) batteries! This solar controller accepts either 12V/24V input from solar panels and can handle up to 15 Amps. The solar controller provides a regulated voltage output for charging 12V LiFePO4 batteries. The controller can also charge other battery configurations such as 2 separate 12V LiFePO4 batteries that are placed in series (24V). The solar controller also provides a regulated 12V output for electrical loads. Solar controllers are required for all solar systems in order to maintain a regulated output voltage to charge batteries and for maintaining a regulating output voltage for loads.
Specification:
Model |
Solli 15001 (12V/24V 15A) |
Type |
Charger controller |
Battery type |
LiFePO4 battery |
System Voltage |
12V/24V automatic detection |
The feasible PV voltage range(from solar panels) |
0~25V |
Output Voltage to Batteries |
LiFePO4: 12V or 24V |
Output Voltage to Loads |
12V or 24V (depending on battery configuration) |
Rated Charge Current (Current Delivered to Battery) |
Up to 15 A |
Rated Load Current |
Up to 15A |
Load channels |
1 channels or 2 channels |
Size |
187*100*41mm |
Weight |
approx.221g |
Operating Temperature Range of the Controller |
-40°C~60°C |
Batteries Compatible w/ Controller |
Lithium Iron Phosphate (LiFePO4)
|
Note:
1. We can make solar charger controller as customer's requirements
2.The load Channels can be one channels and multi channels if you like
3.Battery type can be both for lithium battery and lead acid battery.
LiFePO4 Batteries – In order to use 12V, LiFePO4 batteries, please make sure the 12V batteries have the following specifications.
Nominal Voltage: 12.8V
Over Charge Voltage: 14.6V
High Recovery Voltage: 13.6V
Saturation Voltage: 12-13.6V
Low Discharge Voltage: 10.8V
Low Recovery Voltage: 12V
Function and performance:
1. Automatic intelligent control and protection, and with the recovery of the protection function; Full electronic switch protection, do not need to external protector tube’s protection devices.
2. Due to installation error operating, has the following to prevent incorrect operation function: to install wiring order don't do requirements, support solar reverse connect protection operation, short circuit protection and support the solar energy load protection, etc.
3. Plenty of design surplus, ensure controller can in 10 A charge and discharge conditions work for A long time.
4. Intuitive digital display, convenient button, do not need to do any jumpers or dial the code Settings.
5. Charging loop circuit and the load, low pressure drop, charging high efficiency.
6. Has the rich street lamp control function, advanced intelligent delay mode, the night long time intelligent identification.
7. The software anti-interference algorithm, prevent the signal to the controller instant mutations in the vicinity of state, avoid the happening of the error action.
8. Static low consumption.
9. DuoZhong protection function: solar panels polarity reverse connect protection, solar end short circuit protection and reverse current protection, charging loop battery overcharge protection, storage battery discharge protection, load short circuit protection and load over current protection, perceptual load free-wheeling protection, thermal protection.
Protection:
(1)the reverse polarity protection of solar cell
(2)the short circuit protection of the solar cell
(3)the reverse polarity protection of storage battery
(4)the over charge over discharge protection of storage battery
(5)the short circuit protection of load
(6)the over current protection of load
(7)the continuous current protection of sensitive load
(8) over temperature protection
(9)disorder connecting protection
Service:
1. Exclusive and unique solution can be provided to our clients by our experienced and professional engineers and researchers solve the problems be prompt if anything wrong with our products' quality
Service Purpose:
To help customers ultimately realize the value-added of product.
Service View:
We cherish every opportunity to serve our customers, which will be the step to achieve success.
Service Starting Point:
To think over and analyze problems from customers’ position.
Service Attitude:
Positively analyze and handle problems, and propose constructive solutions. Improve our own ability conteniously and keep our promises to satisfy customers
Cooperation:

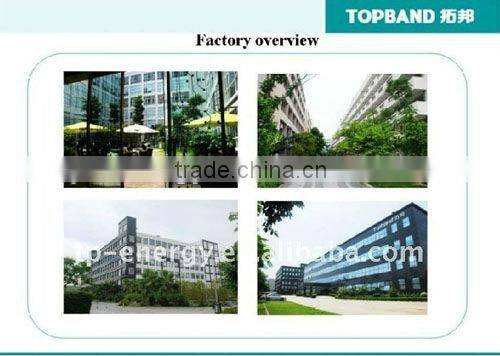

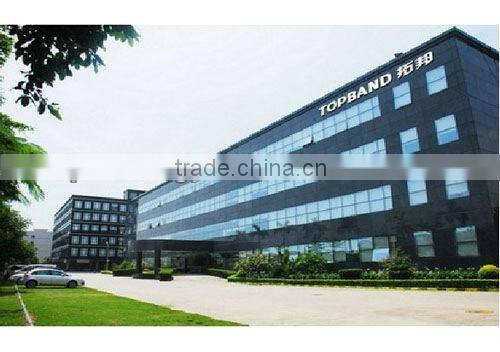

Shenzhen Topband Co., Ltd is one of the leading professional manufacturers of lithium battery in China which was founded in 1996. In June 2007, it was listed in Shenzhen stock exchange ( Stock code is 002139). There are over 200 R&D engineers and about 3,000 employees in the 50,000 square meters Topband industrial park.
Have passed HSPM QC080000, ISO14001: 2004, ISO9001: 2000, OHSA28001: 2001 system authentication.
Certifications:UL,FCC,ETL,CE,RoHS UN38.3 and so on
Welcome to your OEM/ODM orders.
Competitive price and satisfy quality.
Warmly welcome to visit our factory.

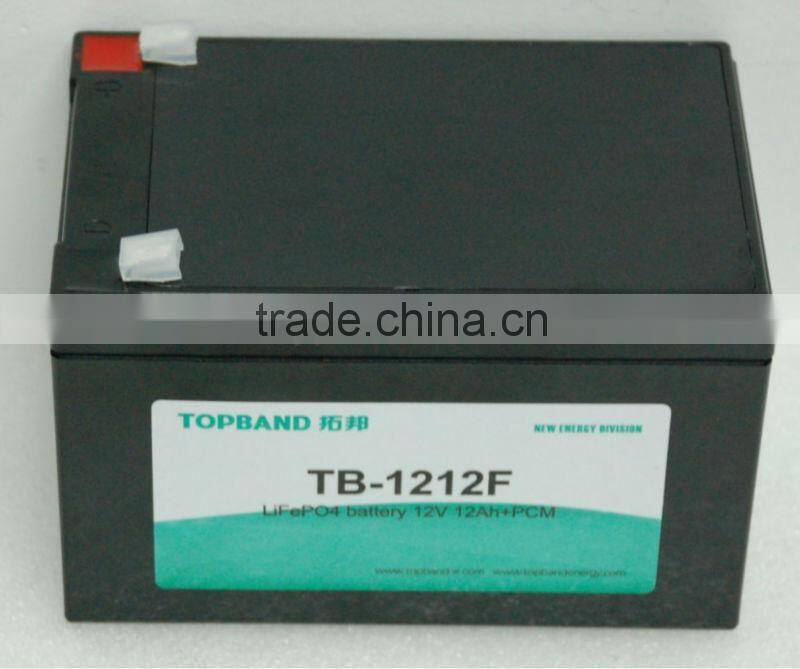

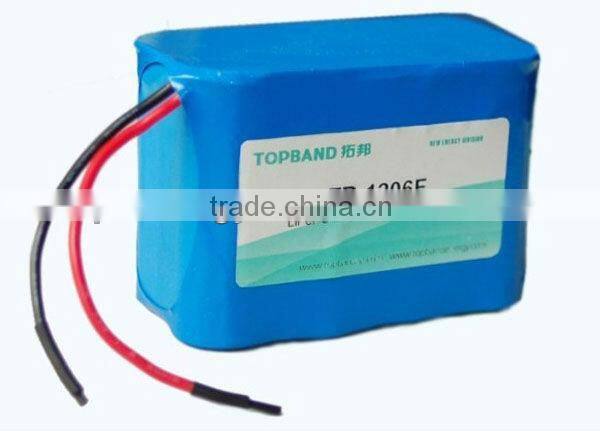

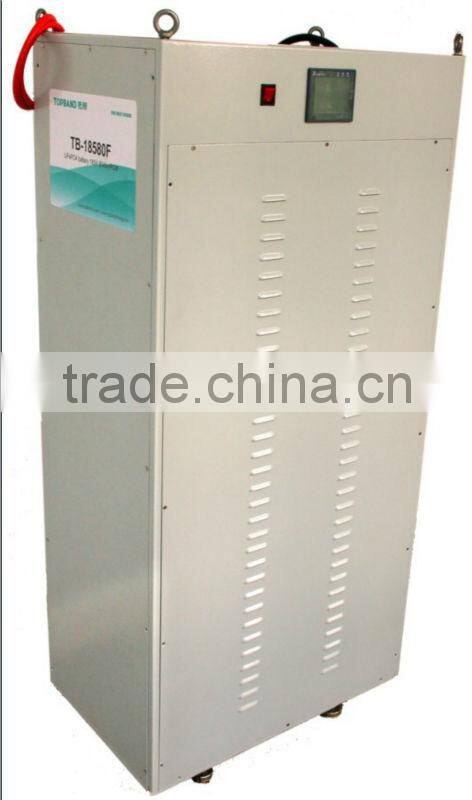

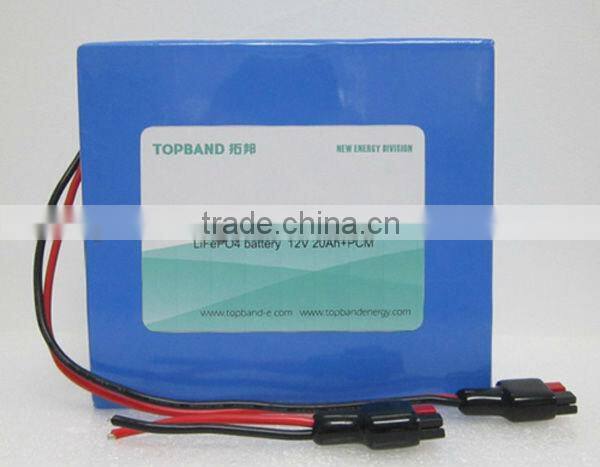

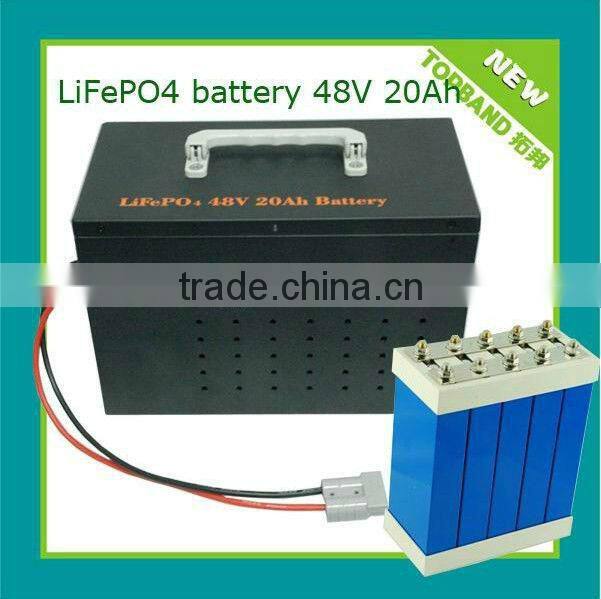

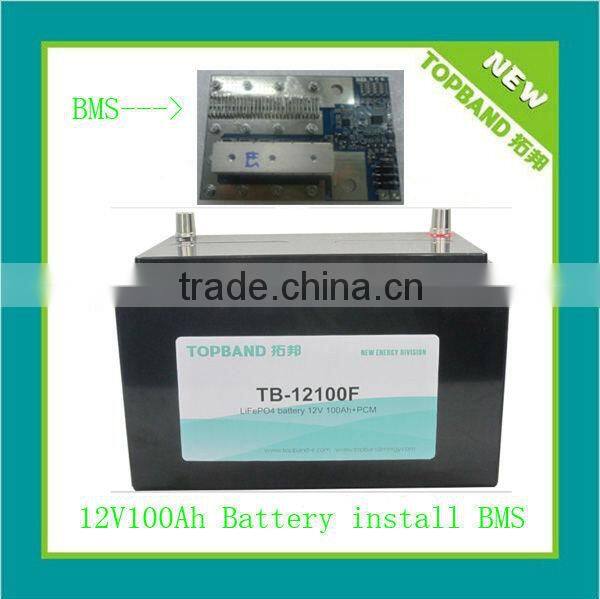

We also offer the LiFePO4 Battery Pack and built-in PCM/BMS protection. 12v : 3Ah, 6Ah, 20Ah, 60Ah, 100Ah ~~~300Ah.
24V:3Ah, 6 Ah, 20Ah, 60Ah, 100Ah ~~~300Ah.
36V:3Ah,6Ah, 20Ah, 40Ah,60Ah,100Ah ~~300Ah.

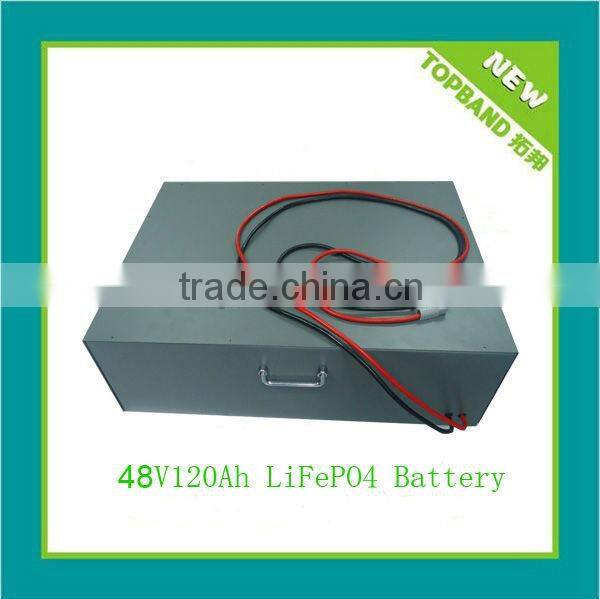

48V:10Ah, 20Ah, 40Ah, 60Ah,100Ah~~~~300Ah.
60V and 96v and 190V battery pack with difference capacity.
