Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Controller > Shenzhen TOPBAND Solar Charger Controller Solli/Solla 12/24V 10A/15A/20A/30A

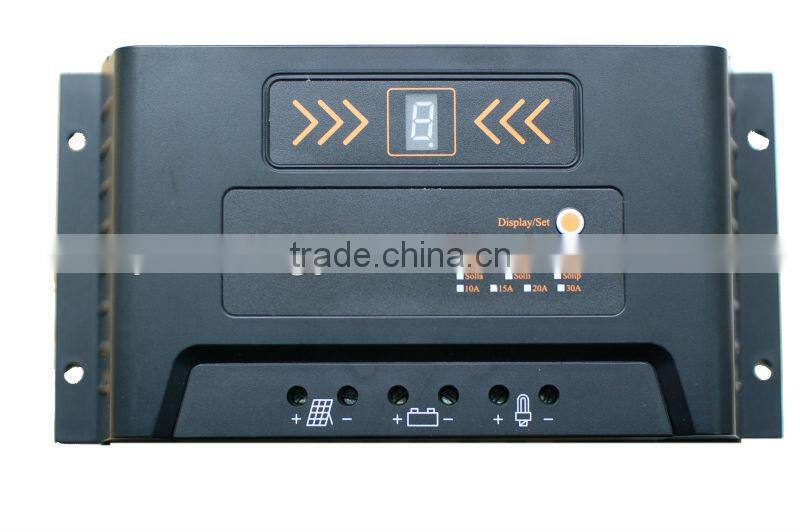

Shenzhen TOPBAND Solar Charger Controller Solli/Solla 12/24V 10A/15A/20A/30A

Name: Shenzhen TOPBAND Solar Charger Controller Solli/Solla 12/24V 10A/15A/20A/30A
Brand: TOPBAND
SKU: 121590113
Availability: InStock

Shenzhen TOPBAND Solar Charger Controller Solli/Solla 12/24V 10A/15A/20A/30A thumbnail-1

Shenzhen TOPBAND Solar Charger Controller Solli/Solla 12/24V 10A/15A/20A/30A photo-1

US$ 16 - 25 MOQ: 5 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

TOPBAND

Model Number:

Solli 1001 12/24V 10A

Contact Supplier Request Quote Chat Now

Shenzhen Topband Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name TOPBAND

Model Number Solli 1001 12/24V 10A

Application Solar System Controller

Rated Voltage 24V

Maximum Current 10A

Specifications

For solar lighting, solar systems
12v/24v Automatic recognition
Can make mult load channels
Widely programmable

Part Number		Solli1001	Solli1002	Solli1501	Solli1502	Solli2001	Solli3001
General Information	Battery type	Lithium battery,12v/24v system automatic recognition
	Max.charge/load current	10A,10A	10A,10A	15A,15A	15A,15A	20A,20A	30A,30A
	Load channels	1 channel	2 Independent channels	1 channel	2Independent channels	1 channel	1 channel
	lar voltage	55V,by varistor
	Load management	General control mode+six inteligent lighting modes
Battery Voltage Mangement	Noninal management	Can be adjusted before manafacture according to the battery type
	Max charge voltage
	Full charge voltage
	Load disconnect voltage
	Load reconnect voltage
Protection Function		1the reverse polarity protection of solar cell
		2the short circuit protection of the solar cell
		3the reverse current protection of charge circuit
		4the reverse polarity protection of storage battery
		5the over charge/over discharge protection of lithium storage battery
		6the short circuit protection of load
		7the over current protection of load
		8the continuous current protection of sensitive load
		9over temperature protection
Temperature character	Disconnect temperature	75°C
	Reconnect temperature	65°C
	Ambient temperature range	(-40°C) to +(60°C)
Auto night detect for load management	Evenning/Morning hours	Auto detect
	Night/Day detect range	2.5v-10v,can be adjusted by user

Specification

Model:	Solli 12/24V 10A/15A/20A/30A
Type:	Solla charger controller
Battery type:	Lead acid battery/lithium battery
Nominal battery voltage:	12V/24V automatic recognition
The feasible PV voltage range:	0~50V
Max continuous output curent:	10A/15A/20A/30A
Load channels:	1 channel or 2 channels
Size:	18710041mm
Weight:	approx.221kg
Ambient Temperatture:	-40°C~60°C

Service View: Service Purpose:
To help customers ultimately realize the value-added of product.

We cherish every opportunity to serve our customers, which will be the step to achieve success.

Service Starting Point:
To think over and analyze problems from customers’ position.

Service Attitude:
Positively analyze and handle problems, and propose constructive solutions. Improve our own ability conteniously and keep our promises to satisfy customers

Why choose TOPBAND?

• Shenzhen Topband Co., Ltd is one of the leading electronic manufacturers in China which is founded in 1996. In June 2007, it was listed in Shenzhen stock exchange ( Stock code is 002139). Have passed HSPM QC080000, ISO14001: 2004, ISO9001: 2000, OHSA28001: 2001 system authentication. Certifications:UL,FCC,ETL,CE,RoHS

• Our battery main application : Power tools, Auto start , E-bike ,E-Scooter ,E-Moto ,Golf cart ,E-wheelchair ,PDA,Solar System,Electric equipment ,Emergency lighting and etc.

• There are over 200 R&D engineers and about 3,000 employees in the 50,000 square meters Topband industrial park

Welcome to your OEM/ODM orders.

We are the factory, we offer the high quality and favorable price!

Warmly welcome to visit our factory!

Package:

Solar system
