Patented 336 style cartridge(elastomer sealing system)
- 5000 Piece / Pieces per Month
- tianjin port
- T/T Credit Card
Product Details
Place of Origin: | Hebei, China | Brand Name: | manfre | Usage: | Other |
Type: | Filter Elements | Material: | Other, Cellulose | Hole Shape: | Other |
Filter Rating: | 99% |
Packaging Details
outer carton package with plastic bag inside or according to customer's requirement.
Product Description
Specifications
1.High Surface Area Petro-Klean2.Rigid Graded-Density Petro-Klean Structure
3.elastomer sealing system

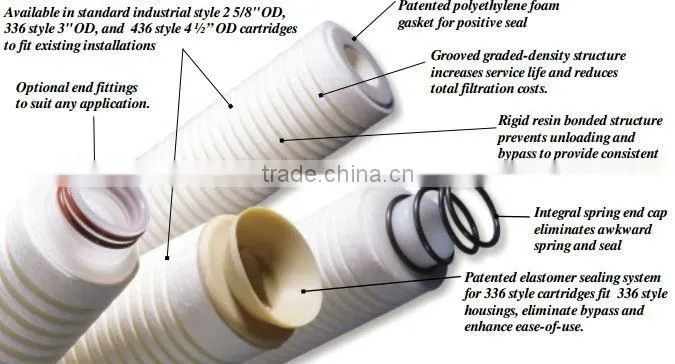

Patented 336 style cartridge(elastomer sealing system)
Rating&Materials of construction
Absolute Rating ( m) | Grade | Fiber | Resin |
10 | M100 | Cellulose / Glass | Melamine |
20 | M200 | ||
20 | M300 | Cellulose | |
40 | M400 | ||
60 | M600 |
Operating Parameters
Maximum Operating Temperature | Standard (Media Only) | 250°F (121°C) |
With Polyethylene Foam Gasket | 200°F (93°C) | |
With Elastomer Seal or Polypropylene End Fittings | 180°F (82°C) | |
Maximum Differential Pressure | 70 psid (4.8 bar) | |
Recommended Change-out Differential Pressure | 35 psid (2.4 bar) |
FLOW RATES
Grade | Absolute Rating | Specific p/36" Element (psi/gpm) |
M100 | 10 | 0.12 |
M200 | 20 | 0.06 |
M300 | 30 | 0.03 |
M400 | 40 | 0.02 |
M600 | 60 | 0.02 |
Dimensions
Cartridge Style | PG Style | 336 Style | Standard Industrial Style |
Inside Diameter | 3 1/8” (79.4 mm) | 1 15/32” (37.3 mm) | 36” to 72” (914 - 1829 mm) |
Outside Diameter | 4 ½” (114.3 mm) | 2 25/32” (70.6 mm) | 2 19/32" (65.9 mm) |
Cartridge Length | 24” to 72” (610 - 1829 mm) | 36” to 72” (914 - 1829 mm) | 9 3/4 to 40" (248 - 1016 mm) |
