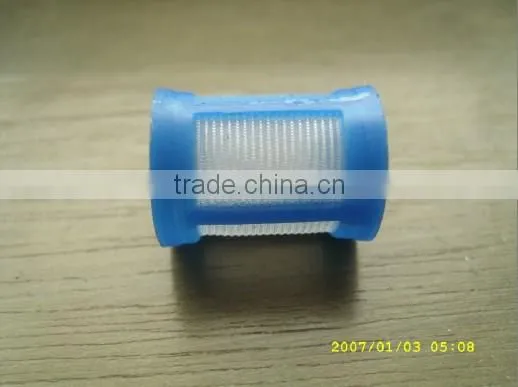

Help CenterSmall Filter Cartridge
Related Products
-
Small Post Carbon Filter Cartridge for RO Water Filter MachineUS$ 1 - 50MOQ: 2 Pieces -
RO Post Carbon Filter Cartridge Small T33US$ 1 - 50MOQ: 2 Pieces
-
Unique Hydrophilic PES Membrane Filters CartridgeUS$ 50 - 100MOQ: 5 Pieces
-
Polyethersulfone Membrane Filter Cartridges With High Flow Rate CapabilityUS$ 50 - 100MOQ: 5 Pieces
-
Manfre FB10ETCG Polyethersulfone Membrane Filter CartridgesUS$ 50 - 100MOQ: 5 Pieces
Specifications
1.XF series filter2.For Small And Medium Batch Processing
3.PP,PES,PVDF,NYLON66 for option.
Materials:
Filter Media: PES,PP,PTFE,PVDF,NYLON66,ETC
Housing:Polypropy Polypropylene
Inner core:Polypropy Polypropylene
Outer support: Polypropylene
Cartidge Dimensions(Nominal):
Outer Diameter:56mm
Length:70mm(Including Adapter)
125mm(Including Adapter)
Typical Applications:
Particulate control and microbial contamination;
Laboratory solutions;
Filtration in CD/DVD manufacturing process;
Filtration for optical resin gum;
Small and medium batch processing applications;
Flow rate less than 11L/min or 102 Nm3/ hr
Operating Conditions:
Normal Operating Temperature: Up to 60°C (140°F)
Max.Operating Temperature.: 80°C (172°F)atP≤1.0 bar (14psi)
Max. Differential Pressure:
Normal Flow direction 4.2 bar (60 psi) at 25°C (77°F);
Reverse flow direction 2.1 bar (30psi) at 25°C (77°F).
