Sintered titanium powder liquid filter element
- 6000 Piece / Pieces per Month
- Tianjin port
- T/T Credit Card
- Sintered titanium filter element for aggressive fluids and gas(custom service)
- Donalson PE particle filter element(highly porous sinter polyethylene)
- CFB-PB10 Lead Reduction carbon filter cartridge
- COF-250VP Pleated cellulose filter cartridge(Nominal 20 micron rating)
- VF-450GD Polypropylene Depth Filter Cartridges
- EP0300H254S High Viscosity depth filter
Product Details
Place of Origin: | Hebei, China | Brand Name: | Manfre | Model Number: | as request |
Usage: | Liquid Filter | Type: | Filter Elements | Material: | Other, Titanium powder |
Hole Shape: | Round | Filter Rating: | 99% | Length: | 10 inch ,20 inch, 30 inch |
Width: | 2.75 inch ,2.36 inch |
Packaging Details
outer carton package with plastic bag inside or according to customer's requirements.
Product Description
Specifications
1.Titanium sintered filter element2.Withstand heat, high pressures
3.Rugged,fixed pore structure
4.ISO Test

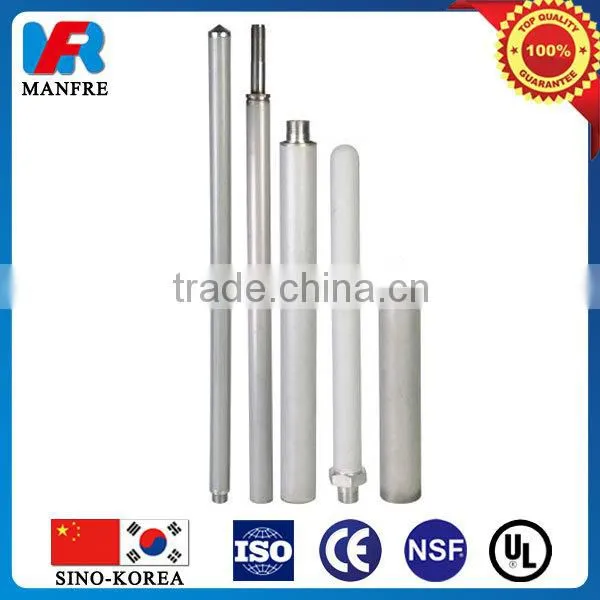

Sintered titanium powder filter element
porous titanium filter element are designed for applications involving extreme operating conditions and aggressive fluids and gas.the rugged,fixed pore structure is constructed from sintered titaniun power.the result is an element that can withstand heat, high pressures and repeated cleaning/backwash chanical strength and corrosion resistance are the results of design with no longitudinal seams.
Features and Benefits:
high corrosion resistance
all sintered titanium construction
backwashable for re-use and maximum economy
multiple end configurations and gasket/o-rings to fit most all vessels.
Filter specifications:
Media: titanium
End caps: titanium
Gaskets/o-rings options: EPDM,Buna-N,Teflon,encapsulated Viton(O-Rings only)
Micron ratings: 0.5,2,5,10,15,35um
Dimensions/Parameters:
Norminal lengths:
10 inch ,20 inch, 30 inchi
(25.4, 50.8, 76.2 cm)
End configuration:
Double open End
226/Flat Single Open End
222/Flat Single Open End
3/4 inch Male NPT
1 inch Male NPT
Outside diameter
2.75 inch(70mm) or 2.36 inch (60mm)
Max. operating temp:700 F(371 C)
Max. differential pressure
250 psid(17.4 bar) forward
50 psid(3.5 bar) reverse
Company Profile
Manfre Filtration Profile
One of the big challenges facing society today is safeguarding the cleanliness of air and liquids. Innovative solutions are called for and Manfre Filtration has the answers. We develop solutions that make processes more efficient, save resources and protect our environment,thereby raising the quality of life.
Manfre Filtration is part of the Manfre Metal Group and is headquartered in Shijiazhuang. With roughly 300 employees at more than 5 locations around the country, we are one of the global technology leaders and a driving force in the field of air and liquid filtration. Our brands are synonymous with high-quality filtration systems for industrial and consumer applications. Additionally, we offer our customers a comprehensive and wide-ranging service portfolio to ensure that our filter systems provide optimum benefit.
We dedicate over 20 years of filtration experience to our customers in the general industry segment, we offer air filtration solutions for contamination control, emission control, turbo machines and surface treatment. For the automotive industry, we develop and supply filtration solutions for surface treatment systems, engine intake air filters and cabin air filters. Our extensive portfolio of human protection products which includes filters for laser printers, faxes and copiers, filter media for respiratory masks and indoor air cleaners and filters for vacuum cleaners rounds off our air filtration offering.
Our liquid filtration expertise covers filter media for coolants and lubricants, oil and fuel (automotive), pool and spa, food and beverages as well as membrane support fabrics.
Quality, Health and Safety
Manfre Filtration stands for the highest quality from the first stage of development to manufacture and delivery of the products, from application engineering consultancy all the way through to After-Sales service.
Values and Principles
Value for Customers.
We are committed to anticipating, understanding and meeting our customers'needs and expectations. As a diligent supplier with a passion for detail, we provide indispensable support to make our customers successful. We deliver superior value through our commitment to quality, service and reliability, supported by our global presence.
InnovationAs a sino-korea joint company competing in global markets, our established tradition of innovation and renewal benefits our customers. Constant innovation in everything we do is essential for our long term financial success. We are leaders in continuous improvement, and our culture encourages and rewards creativity and initiative from all our employees.LeadershipEntrepreneurship is our heritage and the foundation of our success. We continue this tradition through delegated responsibilities, freedom of action and personal accountability. We believe in solid leadership based on personal example, modesty, putting trust in people, and promoting team spirit. We are committed to developing our future leaders within the Metal Group in order to safeguard this style.
Responsibility
Our company is committed to protecting the environment and being responsible corporate citizens in all countries and communities in which we do business. We take all possible care to ensure the safety of the workplace and of our products. we strive for the highest standards of personal behavior. Fairness and integrity guide our conduct amongst ourselves, towards our business partners and the general public.
Long Term Orientation
our long term business orientation is a major strength that benefits our customers. While we are not averse to reasonable risks, financial prudence and solidity will continue to determine the scope and speed of our strategic development.
Manfre has a long and successful tradition of worldwide cooperation, alliances and partnerships which enable us to better serve our customers and strengthen our competitive position.
