Specifications
1.suction oil filter element2.installation into suction line
3.Filtration ratings of 74 or 125 microns
4.ISO Test

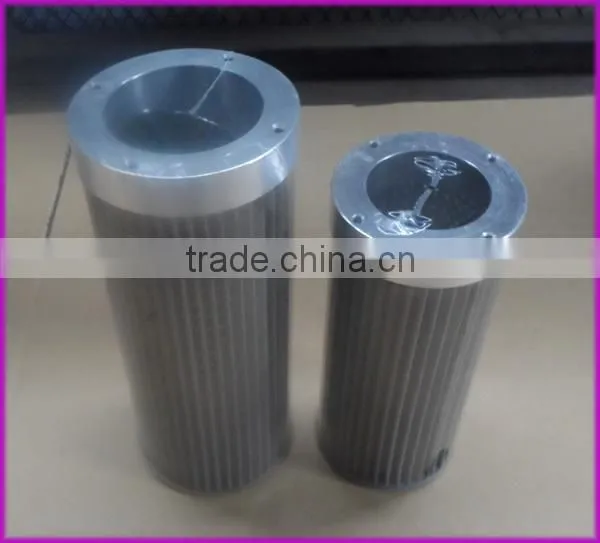

Stainless steel suction oil filter element
Inside tank suction filter element are designed for installation into suction
lines of pumps. Extra caution should be taken to ensure that the suction
elements are always mounted below the minimum oil level of the reservoir.
Features:
Standard models have nominal filtration ratings of 74 or 125 microns.The
suction strainer elements can also be supplied with a bypass valve to reduce
high pressure drops caused by contaminated elements or high viscosity fluids
during cold starting. The bypass valve opens at 3 psi. for best results, suction
strainer elements should be sized for clean element pressure drops of no higher
than 0.5 to 0.7 psi. HYDAC suction Strainer Elements are manufactured using
stainless steel wire screen media.
Attention:
Suction strainer elements are only intended to protect hydraulic pumps against
catastrophic failure caused by coarse contaminants. Suction strainer elements
should be inspected and cleaned regularly. Suction strainer elements should not
be used as the only filtration elements in a hydraulic system. Pressure filters and
return line filters, with reasonable dirt holding capacity, must be installed to provide
protection against component damage caused by fine contaminants.
Hydraulic Data
Pressure Drop vs. Flow: Pressure drop will be < 2 psi when strainers are used
within the recomended flow range, and with a standard hydraulic fluid with a
viscosity of 141 SSU and specific gravity of 0.86.
