Hydraulic Low Pressure Oil Filter Elements

Name: Hydraulic Low Pressure Oil Filter Elements
Brand: Manfre
SKU: 121584271

US$ 50 - 100 MOQ: 5 Pieces

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

Manfre

Model Number:

as request

Shijiazhuang Manfre Metal Trade Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name Manfre

Model Number as request

Usage Other, filtration

Type Filter Elements

Material Glass Fiber

Hole Shape Square

Filter Rating 98%

Length within 1500mm

Specifications

hydraulic low pressure filter element
1.Advanced Korea technology
2.Perfect after-sale service
3.a high-quality adhesive.

Description	Manfre's low pressure filters are suitable for a working pressure up to 1450 PSI (100 bar). Pressure filters are used to protect downstream components from contamination levels beyond the recommended cleanliness target. In systems using accumulators, pressure filters must be sized according to the large effective flow rates present during parts of the duty cycle.
Basic parameters	Product type	hydraulic low pressure oil filter element
	temperature range	+14°F to +176°F (for a short time +212F)
	operating medium:	mineral oil, other media on request
	max. operating pressure	232 PSI
	test pressure:	332 PSI
connection system:	SAE-flange 3000 PSI
sealing material:	Nitrile (NBR) or Viton (FPM), other materials on request
Characters	1. The filters can be installed as suction filters, pressure filters or return-line filters. 2. filters are suitable for a working pressure up to 16 bar. 3. The filter elements are filter baskets with steel wire mesh as filter material. The perforated center tube is layed out with steel wire mesh. The flow direction is from inside to the outside. 4. In-line filters of the LF series are suitable for a working pressure up to 32 bar. 5. The LF Series filter element consists of star-shaped, pleated filter material which is supported on the inside by a perforated core tube and is bonded to the end caps with a high-quality adhesive.

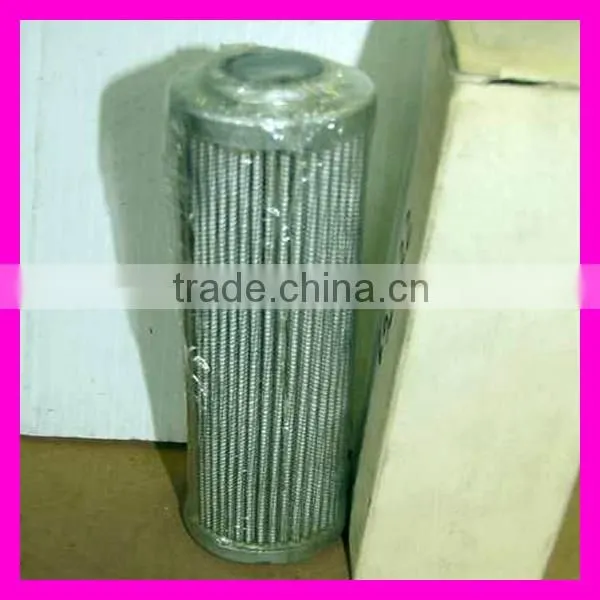

Product images
OEM Service	YES
Standard Testing
